350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Vapor Separator Tank

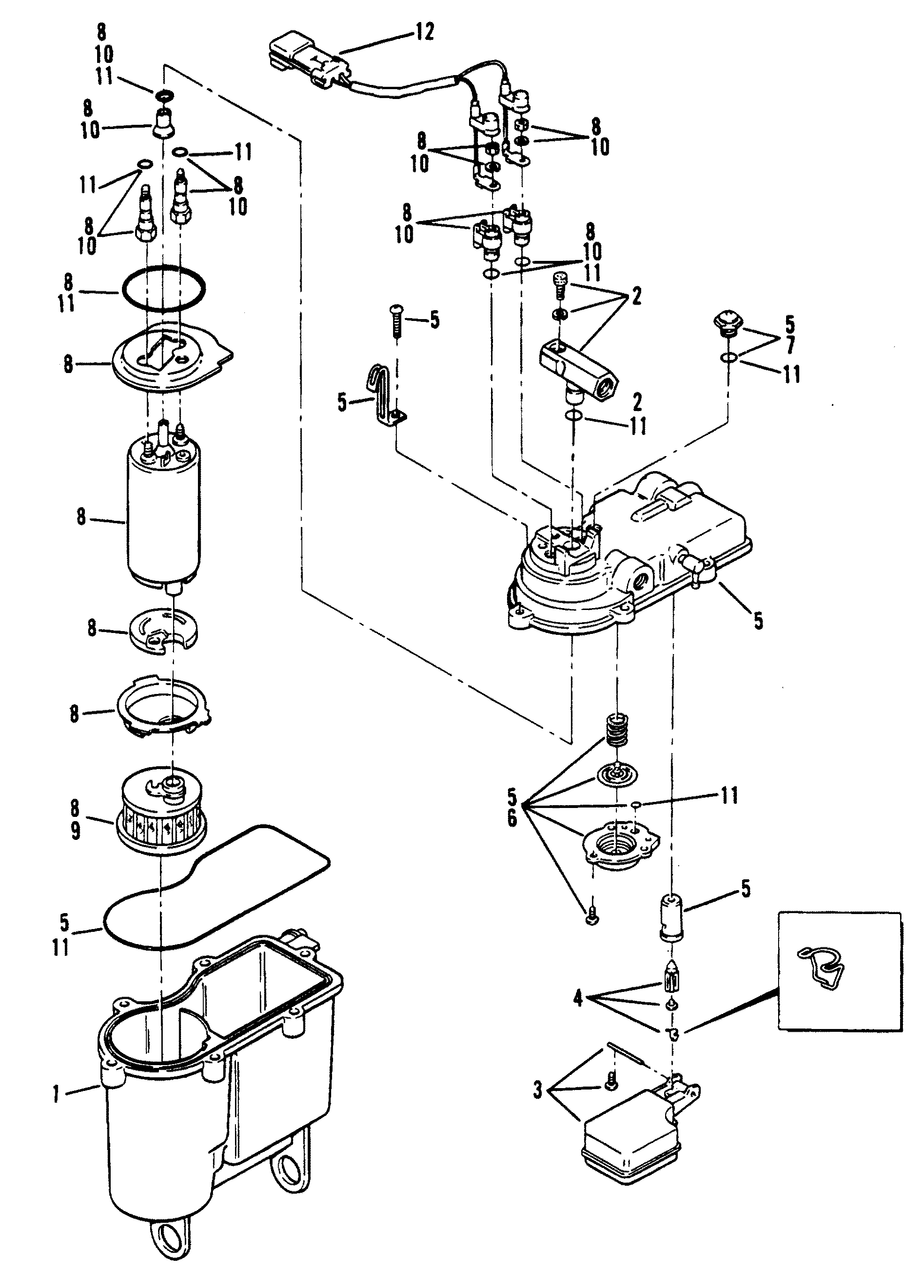

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806643A5 | VAPOR SEPARATOR TANK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 808502 | L-JOINT KIT | 1 | This Part is No Longer Available | |||||
| 3 | 808506 | FLOAT KIT | 1 | ||||||
| 4 | 808507 | FLOAT VALVE KIT | 1 | ||||||
| 5 | 827681T | TOP COVER KIT | 1 | 827681 | |||||
| 6 | 808509 | DIAPHRAGM KIT | 1 | ||||||
| 7 | 808501 | PLUG KIT | 1 | This Part is No Longer Available | |||||
| 8 | 827682T | FUEL PUMP KIT | 1 | 827682 | |||||
| 9 | 808504T1 | FUEL STRAINER KIT | 1 | 8085041 | No longer made, limited availability | ||||
| 10 | 808503 | ELECTRICAL CONNECTOR KIT | 1 | ||||||
| 11 | 808500 | O-RING KIT | 1 | ||||||
| 12 | 827683 | WIRING HARNESS KIT | 1 | This Part is No Longer Available |
