350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Starter Motor

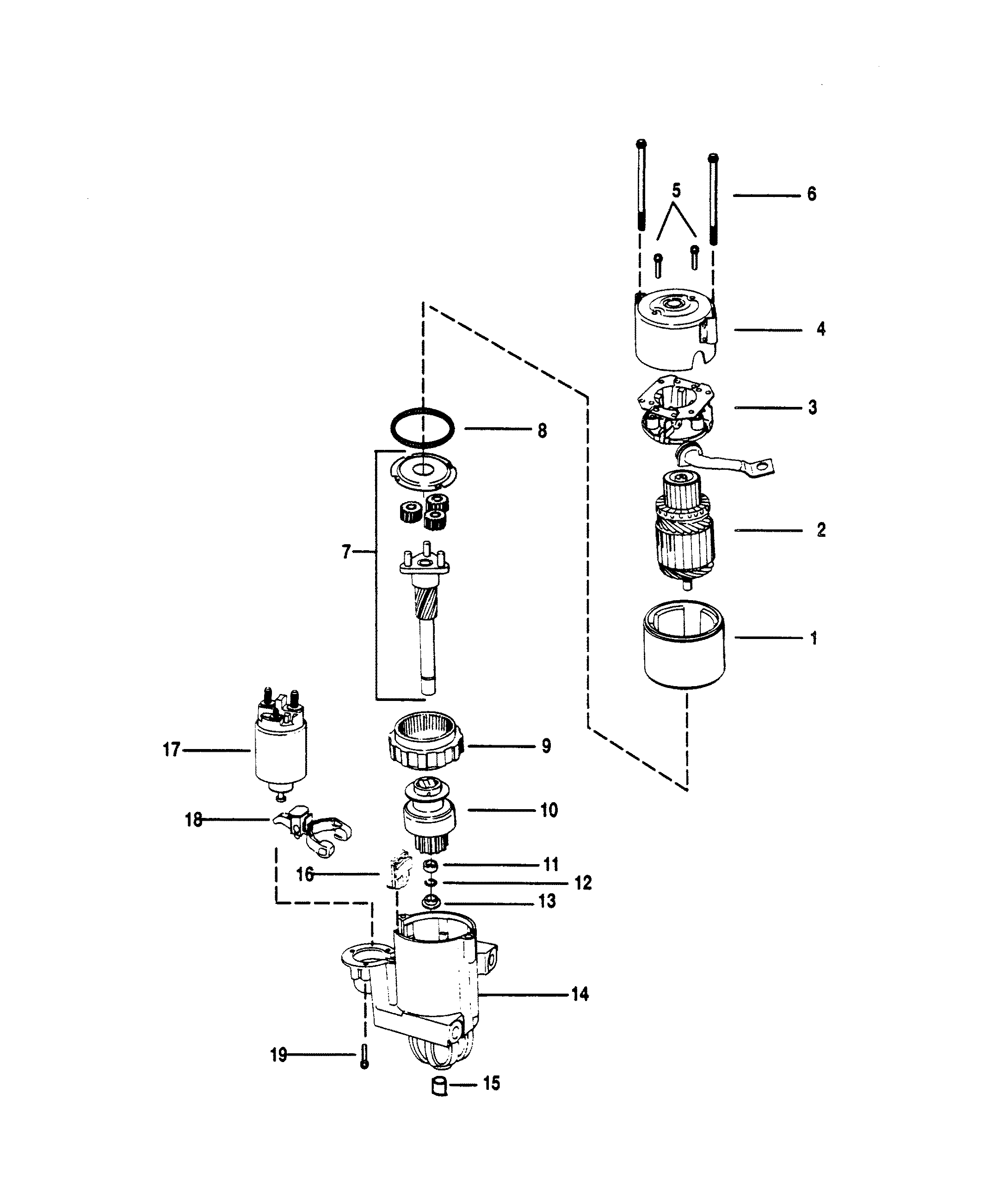

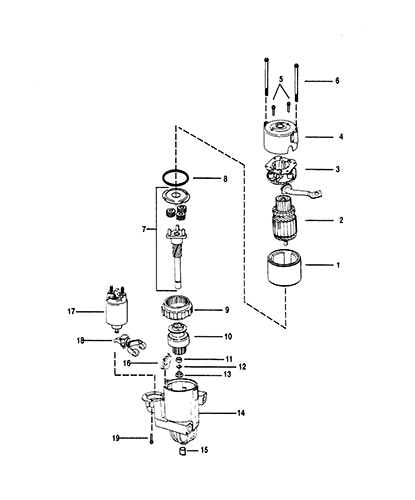

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD STARTER MOTOR 1 50-806964A3
2 N.S.S.         NOT SOLD SEPARATE, ARMATURE 1
This part is not sold separately 8" [PG 260]
3 N.S.S.         NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING 1
This part is not sold separately 2-7/8" DIAMETER END CAP
4 N.S.S.         NOT SOLD SEPARATE, FRAME 1
 This part is not sold separately
5 N.S.S.         NOT SOLD SEPARATE, SCREW 2
 This part is not sold separately
6 N.S.S.         NOT SOLD SEPARATE, THRU BOLT 2
 This part is not sold separately
7 N.S.S.         NOT SOLD SEPARATE, SHAFT AND GEAR 1
 This part is not sold separately
8 N.S.S.         NOT SOLD SEPARATE, GASKET 1
 This part is not sold separately
9 N.S.S.         NOT SOLD SEPARATE, GEAR 1
 This part is not sold separately
10 N.S.S.         NOT SOLD SEPARATE, DRIVE 1
 This part is not sold separately
11 33291         COLLAR 1

12 53-33290         RETAINING RING 1

13 N.S.S.         NOT SOLD SEPARATE, THRUST COLLAR 1
 This part is not sold separately
14 809459         DRIVE HOUSING 1   This Part is No Longer Available
15 23-814476         BUSHING 1   This Part is No Longer Available
16 N.S.S.         NOT SOLD SEPARATE, GROMMET 1
 This part is not sold separately
17 809463A1   676-9-15125 700-72450   SOLENOID 1 8094631
18 N.S.S.         NOT SOLD SEPARATE, LEVER 1
 This part is not sold separately
19 N.S.S.         NOT SOLD SEPARATE, SCREW 3
This part is not sold separately
