350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Exhaust Manifold And Exhaust Elbow

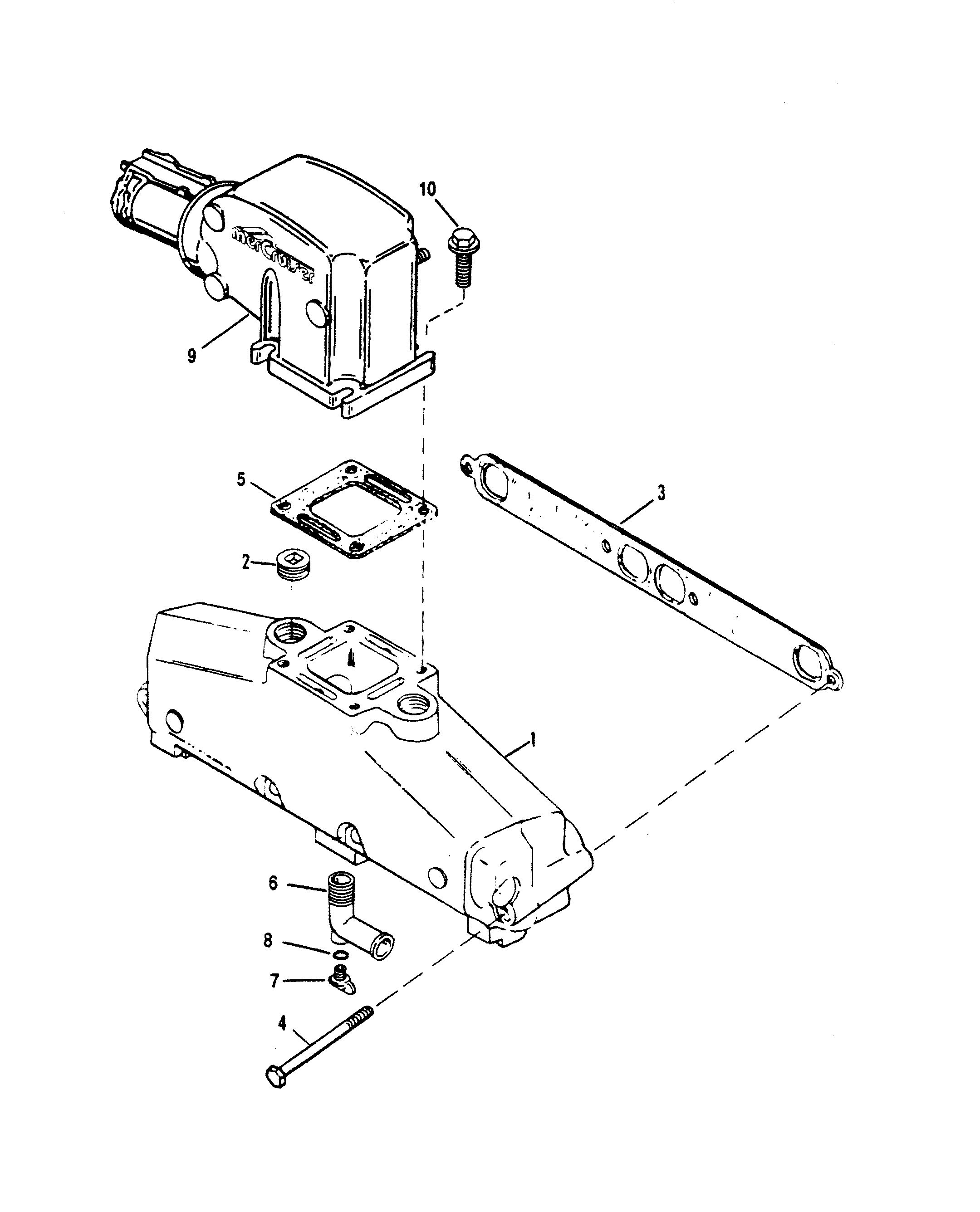

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860246A15 | EXHAUST MANIFOLD ASSEMBLY | 2 | 87114A19 | 1 = CONTENTS OF GASKET SET [27-806988A95] | ||||
| 2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG | AR | 22-33198A1 | |||
| 3 | 27-33395 | GASKET | 2 | 1 | |||||
| 4 | 10-53728 | SCREW (4-5/8") | 8 | ||||||
| 5 | 27-863724 | GASKET | 2 | 27-41813 | 1 | ||||
| 6 | 22-862210A01 | 676-9-41206 | 700-13991 | DRAIN ELBOW | 2 | 22-806926A1 | |||
| 7 | 22-806608A02 | DRAIN PLUG | 2 | 22-806608A1 | |||||
| 8 | 25-32509 | QUAD RING | 2 | 25-806609 | 1 | ||||
| 9 | 816900A5 | EXHAUST ELBOW ASSEMBLY (PORT) | 1 | 816900A11 | This Part is No Longer Available | ||||
| 9 | 816900A9 | EXHAUST ELBOW ASSEMBLY (STARBOARD) | 1 | 816900T | This Part is No Longer Available | ||||
| 10 | 10-865982005 | SCREW (1") | 6 | 10-12244 | |||||
| 10 | 10-98534 | SCREW (2-1/2") | 2 | ||||||
| - | 807476A7 | EXHAUST ELBOW KIT (3") | 1 | 93320A7 | EACH KIT CONTAINS 2 RISERS | ||||
| - | 807477A5 | EXHAUST ELBOW KIT (6") | 1 | 93322A5 | EACH KIT CONTAINS 2 RISERS |
