350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Cylinder Head And Rocker Cover

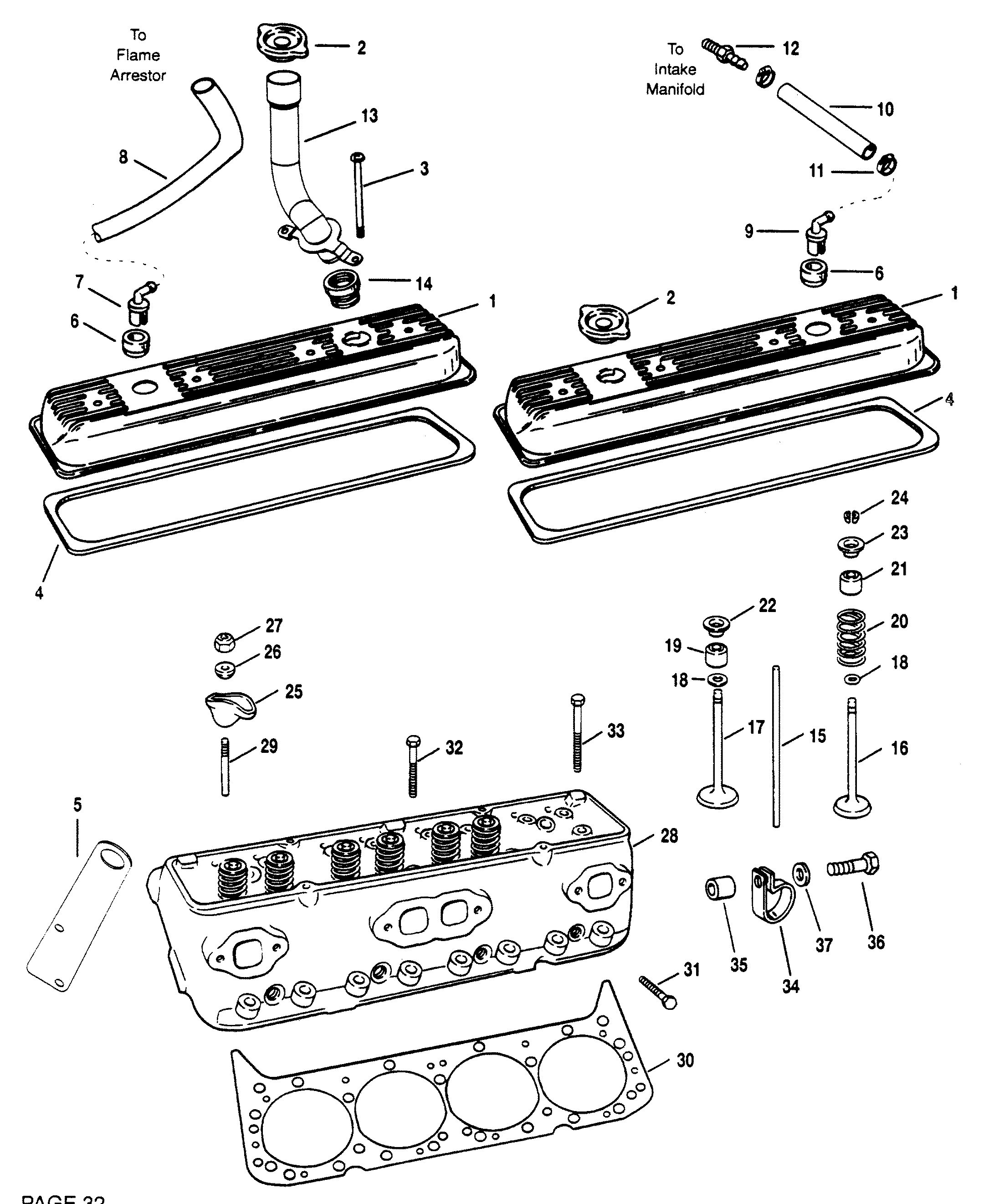

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         ROCKER COVER 2 814505A1 1 = CONTENTS OF GASKET SET
2 36-18710002         CAP 2 36-18710
3 10-17344         SCREW 8

4 27-17467   676-9-61305 700-30357   GASKET 2
1
5 806815T         LIFTING EYE (FRONT) 1   This Part is No Longer Available
6 25-52188         GROMMET 2

7 97850T         ELBOW 1 97850
8 32-807008         HOSE 1   This Part is No Longer Available
9 8M2017060         PCV VALVE 1 806947T
10 32-8M0062321         HOSE 1 32-80617435
11 54-815504105         CLAMP 2

12 22-34982         CONNECTOR 1

13 806819A3         OIL FILL TUBE 1

14 26-805622         GROMMET 1

15 17339         PUSH ROD 16

16 87284         EXHAUST VALVE (STANDARD) 8

16 883265         EXHAUST VALVE (.015 O.S.) AR 87301 This Part is No Longer Available
17 97661         INLET VALVE (STANDARD) 8

17 97662         INLET VALVE (.015 O.S.) AR   This Part is No Longer Available
18 26-34217         SEAL (INLET AND EXHAUST) 16
1
19 8M0050563         SEAL (INLET) 8 26-97664 1
20 24-48347         SPRING (INLET AND EXHAUST) 16

21 34518001         SHIELD 16 34518
22 48348         CAP 8   This Part is No Longer Available
23 11965         ROTATOR 8   This Part is No Longer Available
24 28-547971         KEY 32 28-54797
25 35329         ROCKER ARM 16

26 35331         BALL UNIT 16

27 11-34516         NUT 16

28 938-883490R1         CYLINDER HEAD ASSEMBLY 2 938-9718
29 16-34522         STUD (.003 O.S.) AR

29 16-34521         STUD (.013 O.S.) AR   This Part is No Longer Available
30 75611001         GASKET 2 27-75611 1
31 10-11968         BOLT (1-3/4") 16

32 10-119671         BOLT (3") 4 10-11967
33 10-11966         BOLT (3-3/4") 14

34 54-97862         CLAMP 1   This Part is No Longer Available
35 23-91034         SPACER 1
No longer made, limited availability
36 10-37612         SCREW 1

37 13-35048         LOCKWASHER 1
