350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Intake Plenum And Flame Arrestor

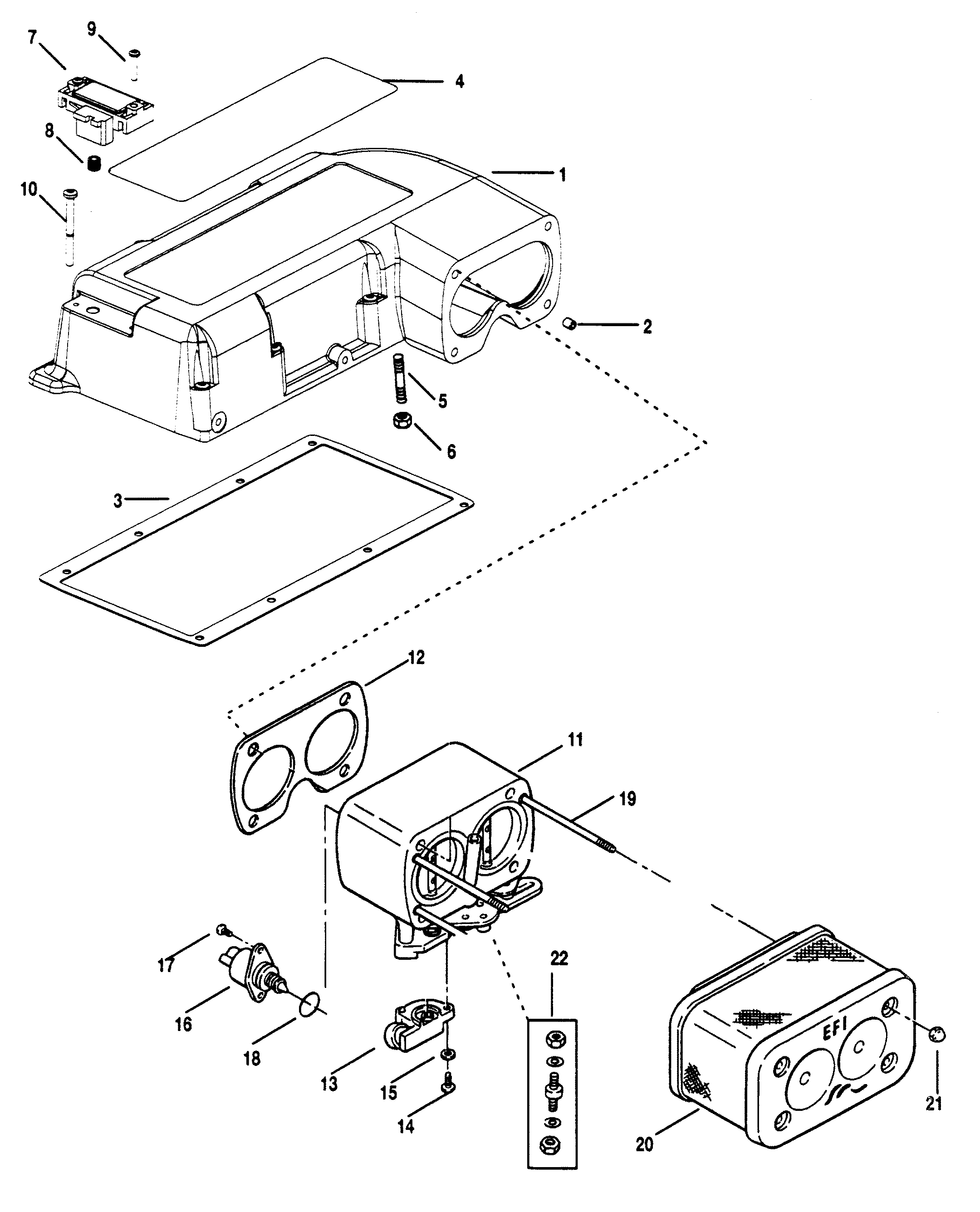

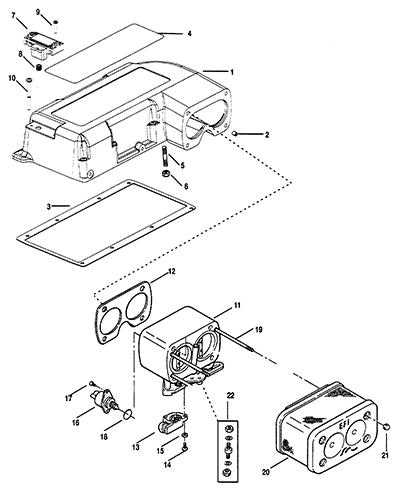

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806811A1 | INTAKE PLENUM | 1 | This Part is No Longer Available 1 = CONTENTS OF GASKET SET [27-806988A95] | |||||
| 2 | 23-52698 | SLEEVE | 2 | ||||||
| 3 | 27-807670 | GASKET | 1 | 27-806988 | 1 | ||||
| 4 | 37-806952 | DECAL | 1 | This Part is No Longer Available | |||||
| 5 | 16-728091 | STUD | 1 | 16-72809 | |||||
| 6 | 11-807082 | NUT | 1 | ||||||
| 7 | 864856A1 | MAP SENSOR | 1 | 805217A1 | |||||
| 8 | 26-805412 | SEAL | 1 | 1 | |||||
| 9 | 10-807120 | SCREW | 2 | ||||||
| 10 | 10-806953 | SCREW | 7 | ||||||
| 11 | 805243A12 | THROTTLE BODY | 1 | 805243A2 | This Part is No Longer Available | ||||
| 12 | 27-805396 | GASKET | 1 | 1 | |||||
| 13 | 805226A1 | TPS SENSOR | 1 | ||||||
| 14 | 10-805400 | SCREW | 2 | ||||||
| 15 | 12-28001 | WASHER | 2 | This Part is No Longer Available | |||||
| 16 | 805224A1 | IAC MOTOR | 1 | ||||||
| 17 | 10-805400 | SCREW | 2 | ||||||
| 18 | 25-808547 | O-RING | 1 | ||||||
| 19 | 16-805399 | STUD | 4 | ||||||
| 20 | 807656A2 | FLAME ARRESTOR | 1 | 805401A2 | |||||
| 21 | 11-805402 | NUT | 4 | ||||||
| 22 | 16-97477A3 | STUD KIT | 1 |
