350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Sea Water Pump Assembly

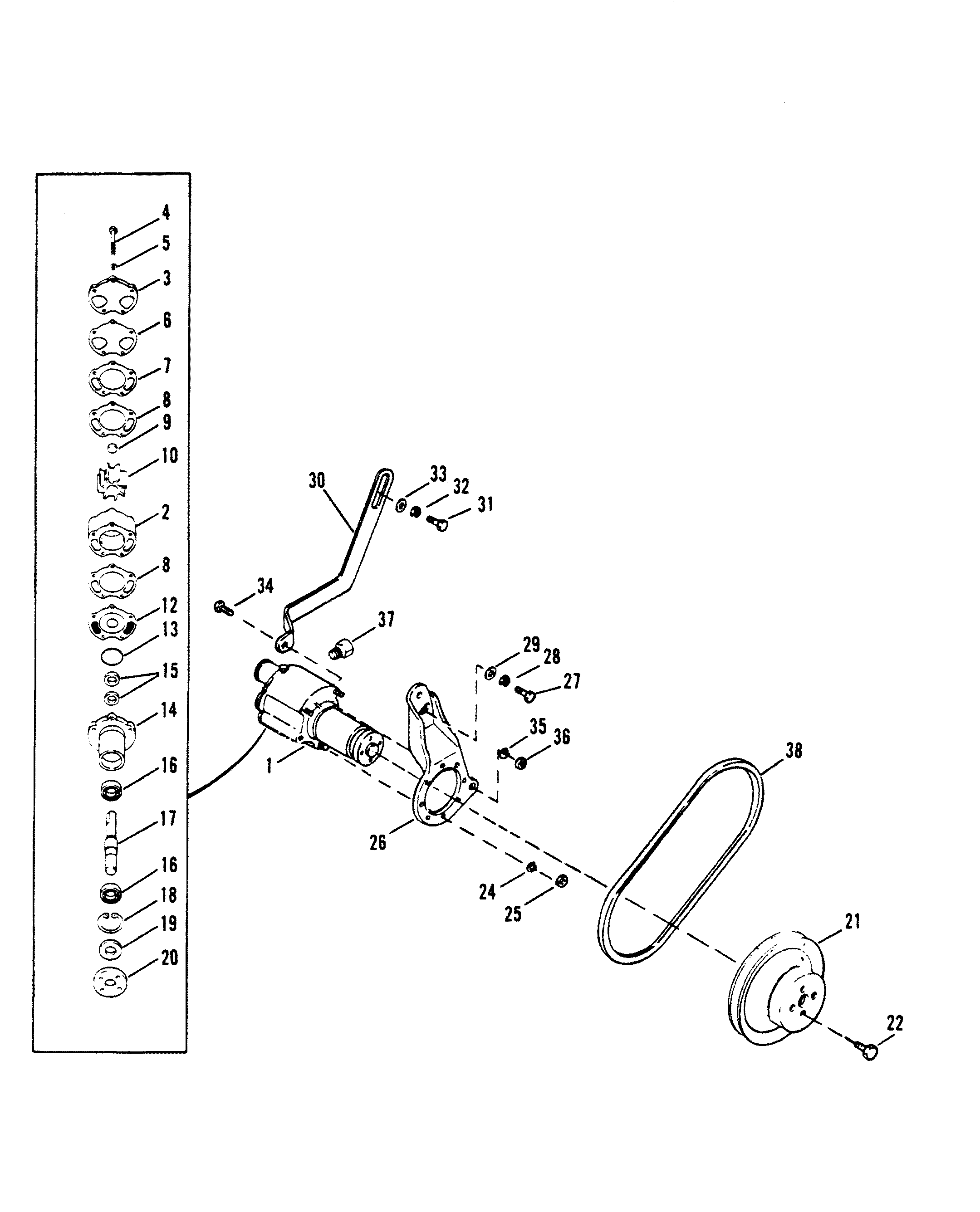

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 46-807151A12         WATER PUMP ASSEMBLY 1 46-72774A50
2 46-72774A40         BODY) 1   This Part is No Longer Available
3 87631A4         COVER 1

4 10-73275         SCREW (2-7/8") 2

4 10-99347         SCREW (3-3/4") 3

5 12-20084         WASHER 5

6 27-8052151         GASKET 1

7 94916         OUTER WEAR PLATE 1

8 27-94914     700-32730   GASKET 2

9 19-59504         PLUG 1

10 47-59362T1 625-4011 676-9-45375 700-89740   IMPELLER 1 47-593621
12 94576         INNER WEAR PLATE 1

13 25-94288         QUAD RING 1

14 46-94913A2         PUMP HOUSING ASSEMBLY 1

15 26-90562   676-9-76107 700-85080   OIL SEAL 2

16 30-72961         BALL BEARING 2

17 59501A1         SHAFT 1

18 53-23720         SNAP RING 1

19 26-72785         OIL SEAL 1

20 47530         HUB 1

21 52822T         PULLEY 1

22 10-47277         SCREW (3/4") 4

24 13-39107     700-21496   LOCKWASHER 3

25 11-21908         NUT 3

26 89535T1         BRACKET 1

27 10-34353         SCREW (1") 2

28 13-35048         LOCKWASHER 2

29         WASHER 1

30 896091         BRACE 1

31 10-26487         SCREW (1") 1

32 13-35048         LOCKWASHER 1

33         WASHER 1

34 10-35786         SCREW (1") 1

35 13-35048         LOCKWASHER 1

36 11-46335         NUT 1

37 22-328022         PLUG (FOR WATER PUMP BODY) 1 22-32802
38 57-13457Q         BELT 1 57-13457T
