350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Oil Filter And Adaptor

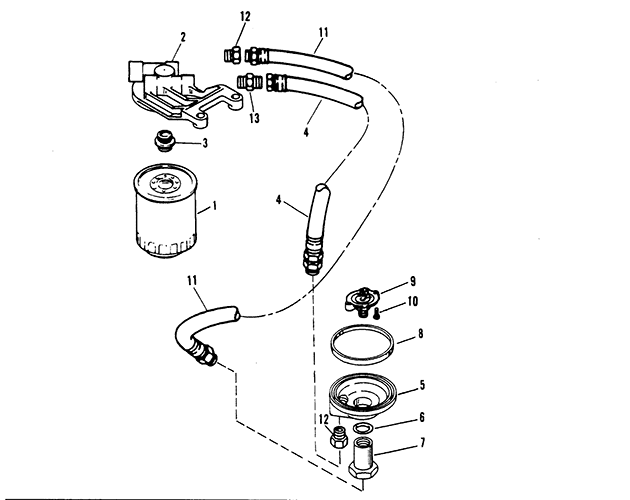

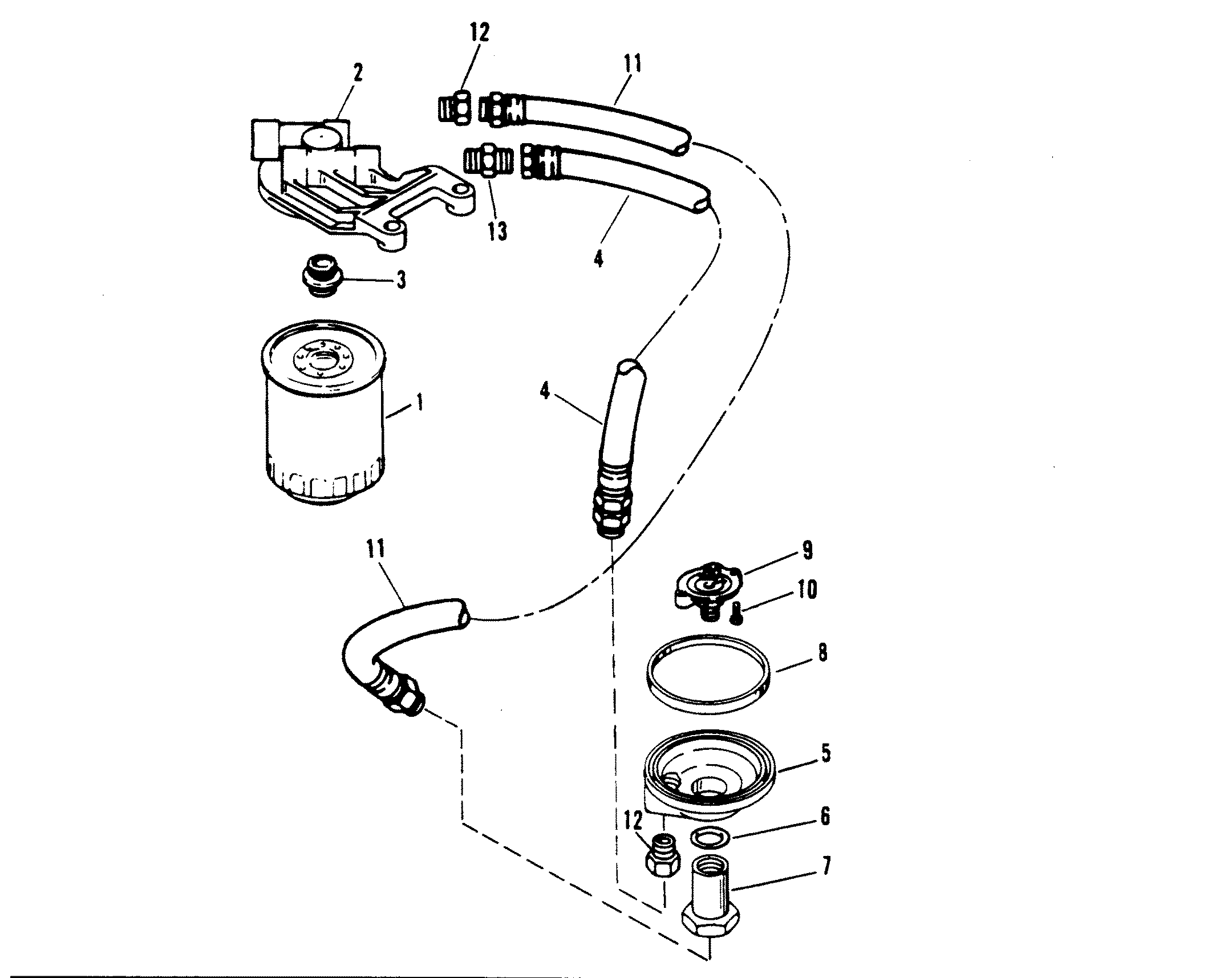

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | OIL FILTER | 1 | 14957 | 1 = CONTENTS OF GASKET SET [27-806988A95] | ||||
| 2 | 817403A4 | BRACKET | 1 | This Part is No Longer Available | |||||
| 3 | 22-814822 | ADAPTOR | 1 | ||||||
| 4 | 32-806634T | HOSE | 1 | ||||||
| 5 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 6 | 26-42077 | SEAL | 1 | 1 | |||||
| 7 | 22-806121 | FITTING | 1 | ||||||
| 8 | 27-91892 | GASKET | 1 | 1 | |||||
| 9 | 71920 | ADAPTOR | 1 | 53338 | |||||
| 10 | 10-54786 | SCREW | 2 | ||||||
| 11 | 32-861618T | HOSE | 1 | 32-806633T | |||||
| 12 | 22-805563 | FITTING | 2 | ||||||
| 13 | 22-806186 | FITTING | 1 |
