350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Fuel Pump And Fuel Filter

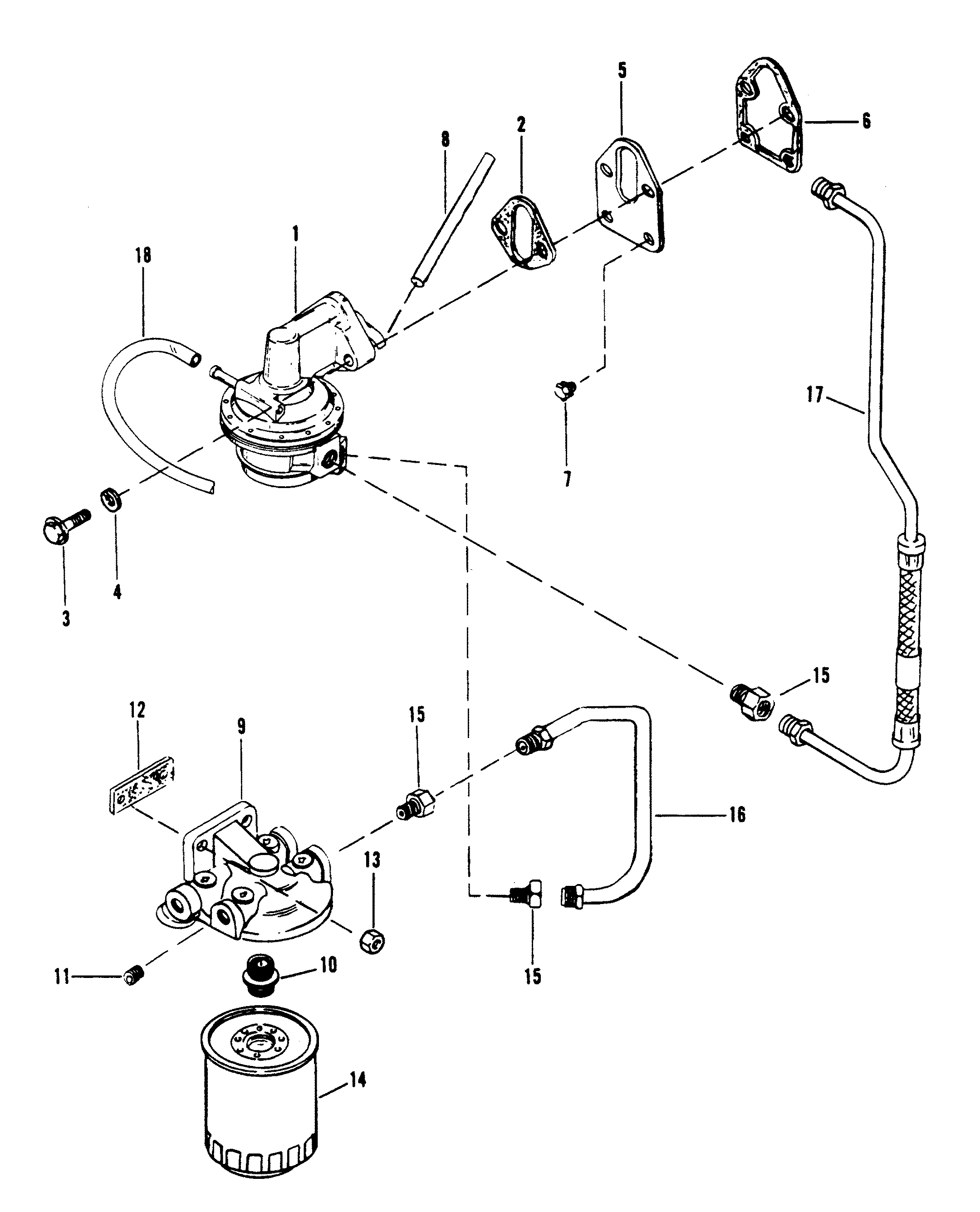

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0058164         FUEL PUMP 1 97401A8 1 = CONTENTS OF GASKET SET [27-806988A95]
2 27-34213   676-9-61041 700-31360   GASKET 1
1
3 10-34354         SCREW (1-1/2") 2

4 13-35048         LOCKWASHER 2

5 35373         MOUNTING PLATE 1

6 27-34898   676-9-61042 700-32750   GASKET 1
1
7 10-35366         SCREW 2

8 821150         PUSH ROD 1   This Part is No Longer Available No longer made, limited availability
9 89876A3         BASE ASSEMBLY 1

10 22-816133         FITTING 1 22-8161331
11 22-32561         PIPE PLUG 2

12 88641         MOUNTING BRACKET 1

13 11-82670911         NUT 2 11-35814
14 35-802893Q01         FUEL FILTER/WATER SEPARATOR 1 35-807172
15 22-33821         ELBOW 3

16 32-97326T         FUEL LINE 1

17 32-806641T         FUEL LINE 1   This Part is No Longer Available
18 32-7381567         HOSE 1
