350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Shift Bracket
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)

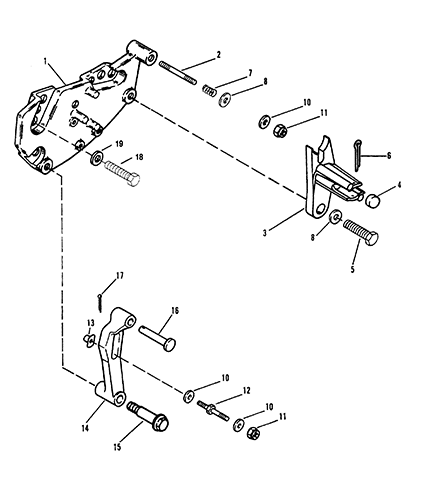

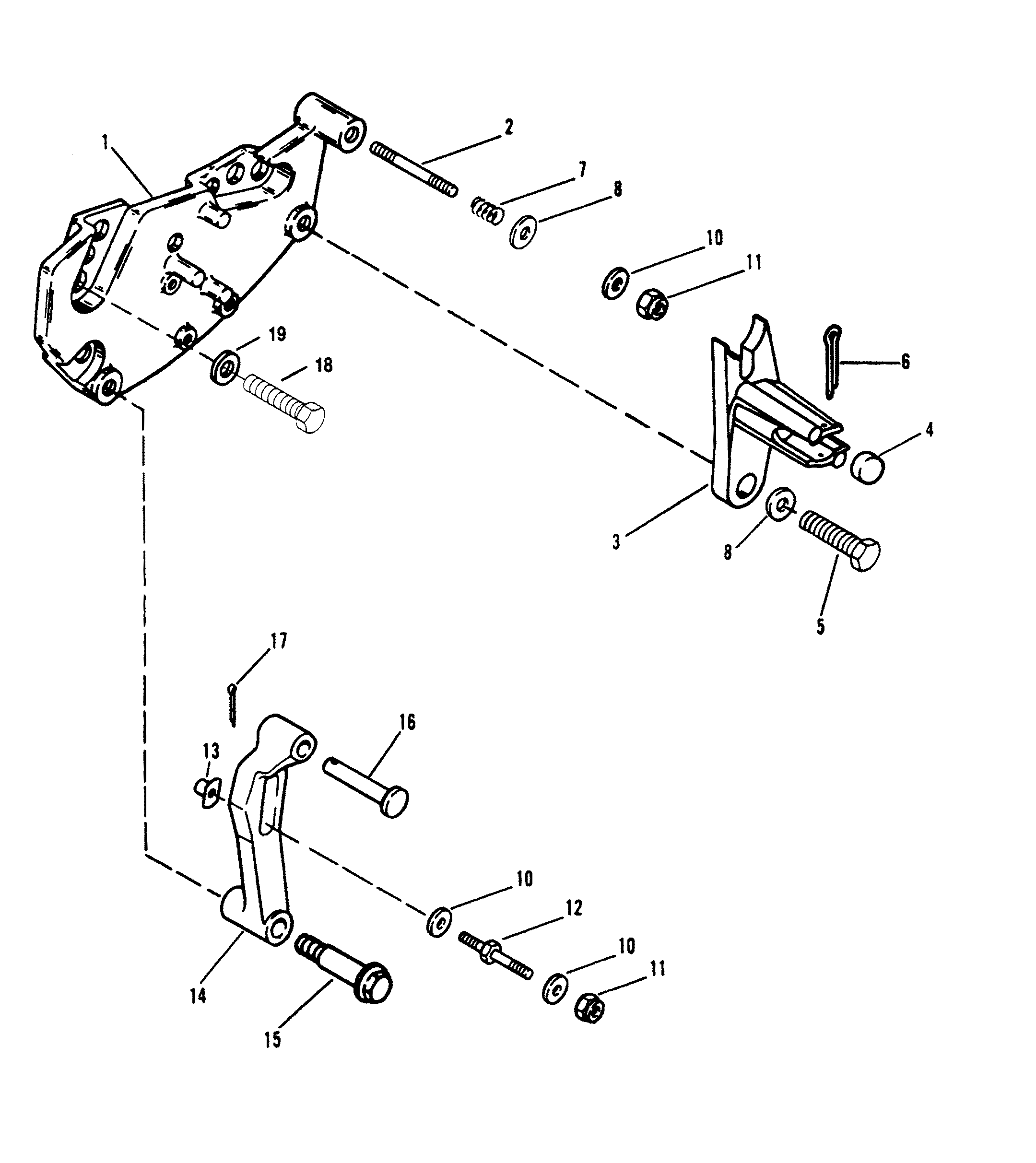

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 807962A15 | SHIFT BRACKET ASSEMBLY | 1 | 99237A10 | |||||
2 | 16-865154A02 | STUD | 1 | 16-987981 | |||||
3 | 865434A02 | RETAINER | 1 | 123811 | |||||
4 | 23-98828 | SPACER | 1 | ||||||
5 | 10-53167 | SCREW | 1 | ||||||
6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
7 | 24-98880 | SPRING | 1 | ||||||
8 | 12-56720 | WASHER | 2 | ||||||
10 | 12-35462 | WASHER | 4 | ||||||
11 | 11-8267119 | NUT | 2 | 11-13438 | |||||
12 | 16-96112 | STUD | 1 | ||||||
13 | 11-63341 | TEE NUT | 1 | ||||||
14 | 863911A12 | SHIFT LEVER | 1 | 138981 | |||||
15 | 10-13743 | SHOULDER SCREW | 1 | ||||||
16 | 17-68402 | SHOULDER PIN | 1 | ||||||
17 | 18-210711 | COTTER | 1 | 18-21071 | |||||
18 | 10-657461 | SCREW | 2 | ||||||
19 | 12-35462 | WASHER | 2 |
