350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Starter And Alternator

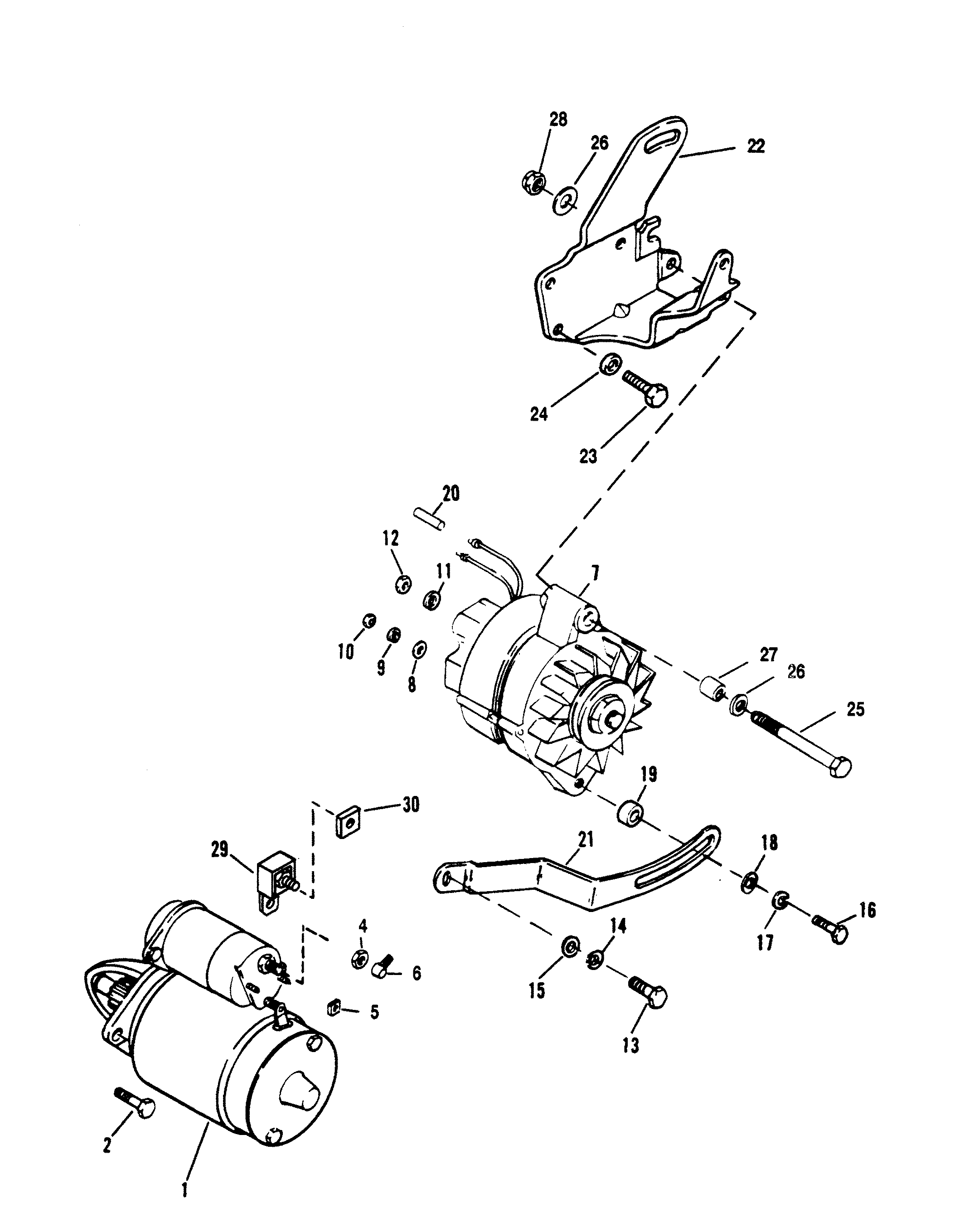

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099MD | STARTER MOTOR | 1 | 50-806964A3 | ||
| 2 | 10-8053432 | SCREW | 2 | ||||||
| 4 | 11-806949 | NUT (8MM) | 1 | ||||||
| 5 | 11-400211 | NUT (5MM) | 1 | ||||||
| 6 | 85-79695T | BOOT | 1 | 85-79695 | |||||
| 7 | 805884T | 620-3159M | 676-9-19103 | ALTERNATOR | 1 | ||||
| 8 | 12-96457 | PHENOLIC WASHER | 1 | ||||||
| 9 | 13-26996 | LOCKWASHER | 1 | ||||||
| 10 | 11-79989 | NUT (10-24) | 1 | ||||||
| 11 | 13-26992 | LOCKWASHER | 1 | ||||||
| 12 | 11-94330 | NUT (1/4-20) | 1 | ||||||
| 13 | 10-26487 | SCREW | 1 | ||||||
| 14 | 13-35048 | 700-21495 | LOCKWASHER | 1 | |||||
| 15 | WASHER | 1 | |||||||
| 16 | 10-74824 | SCREW (1-1/4") | 1 | ||||||
| 17 | 13-39107 | 700-21496 | LOCKWASHER | 1 | |||||
| 18 | 12-26168 | WASHER | 1 | ||||||
| 19 | 23-52095 | SPACER | 1 | ||||||
| 20 | 5790811 | TUBING | 2 | ||||||
| 21 | 85013T | BRACE | 1 | ||||||
| 22 | 15083T | BRACKET | 1 | This Part is No Longer Available | |||||
| 23 | 10-37612 | SCREW (1-1/4") | 2 | ||||||
| 24 | 12-20553 | 700-21675 | WASHER | 2 | |||||
| 23 | 10-34353 | 525-10-34353 | SCREW (1") | 1 | |||||
| 24 | 12-20553 | 700-21675 | WASHER | 1 | |||||
| 25 | 10-48308 | SCREW | 1 | ||||||
| 26 | 12-20553 | 700-21675 | WASHER | 2 | |||||
| 27 | 23-33186 | BUSHING | 1 | ||||||
| 28 | 11-23161 | NUT | 1 | ||||||
| 29 | 88-79023A91 | 676-9-15510 | FUSE ASSEMBLY (90 AMP) | 1 | |||||
| 30 | 11-21825 | NUT | 1 |
