350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Flywheel Housing

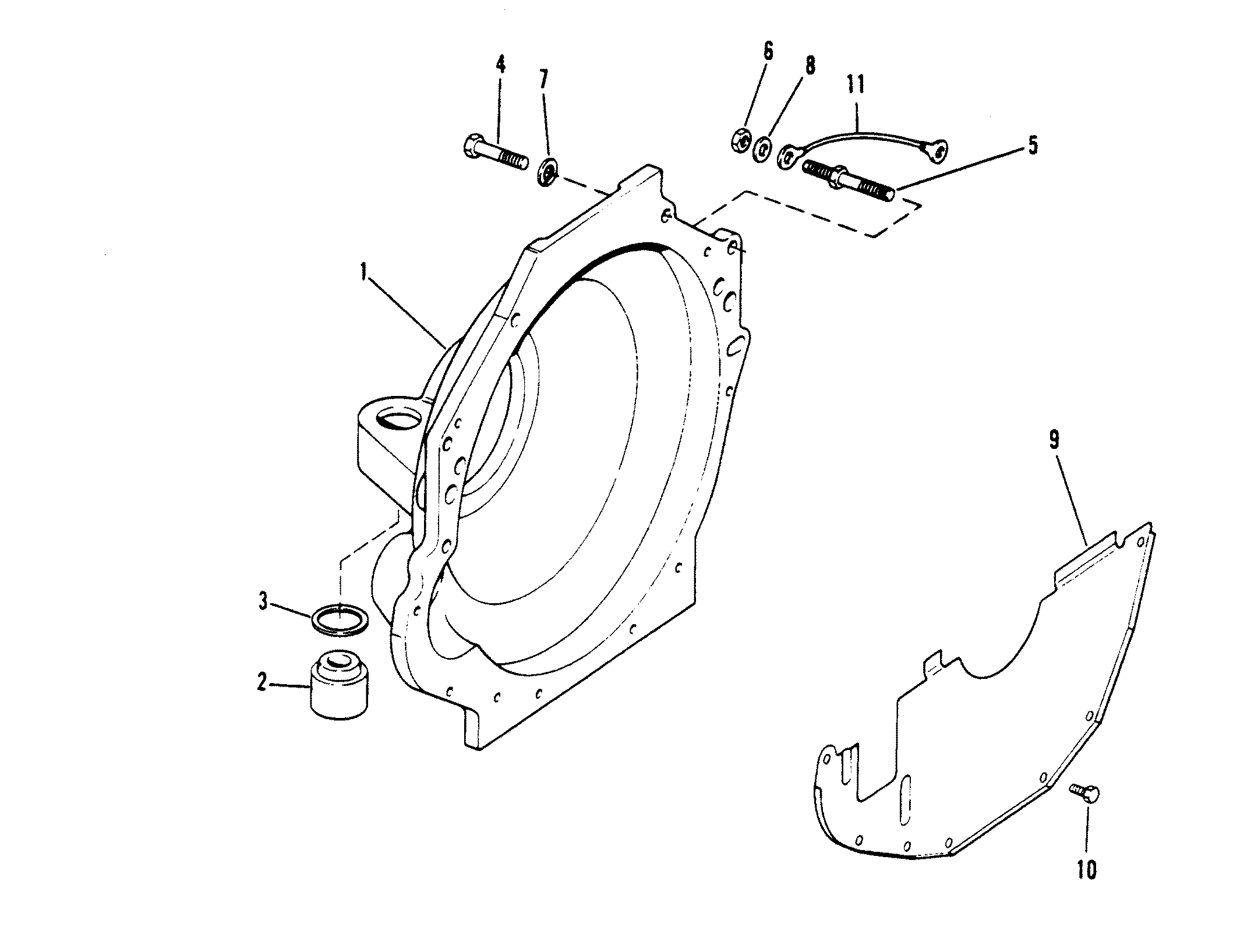

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | FLYWHEEL HOUSING | 1 | 12675A7 | |||||
| 2 | 865329A02 | RUBBER MOUNT | 2 | 99297A1 | |||||
| 3 | 23-99322 | SPACER | 2 | ||||||
| 4 | 10-37612 | SCREW (1-1/4") | 3 | ||||||
| 4 | 10-358701 | SCREW (2") | 1 | ||||||
| 5 | 16-64066 | STUD | 2 | ||||||
| 6 | 11-32219 | NUT | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER | 4 | ||||||
| 8 | 12-20572 | WASHER | 1 | ||||||
| 9 | 807260A2 | COVER ASSEMBLY | 1 | 818719A1 | |||||
| 10 | 10-32773 | SCREW | 7 | ||||||
| 11 | 84-62826A6 | WIRE | 1 |
