| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

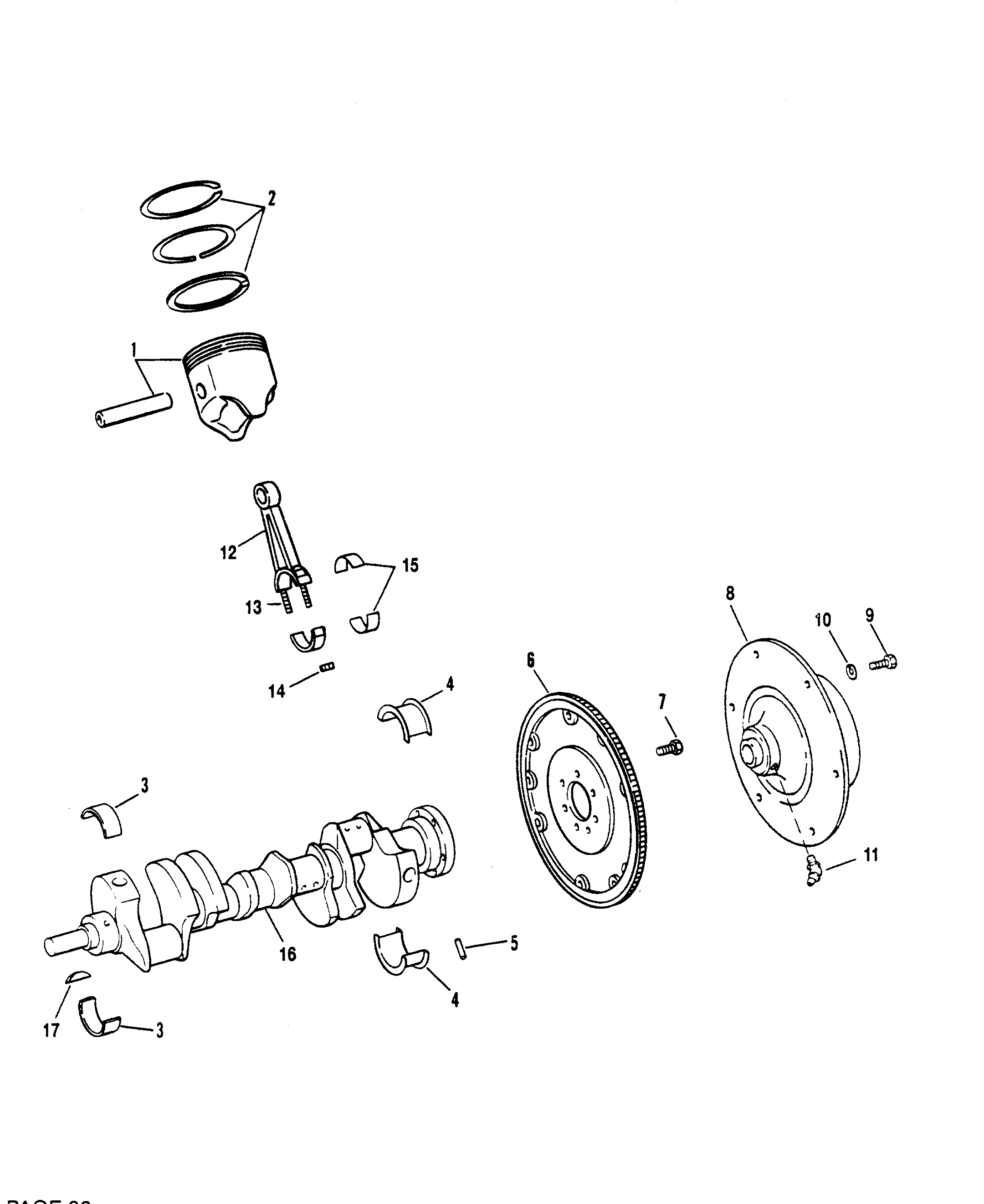

| 1 |
735-850097 |
|
|
|
|
PISTON/PISTON PIN (STANDARD) |
8 |
735-808674 |
|
| 1 |
735-850098 |
|
|
|
|
PISTON/PISTON PIN (.030 O.S.) |
AR |
735-9687 |
|
| 2 |
39-801861 |
|
|
|
|
PISTON RING (STANDARD) |
8 |
|
This Part is No Longer Available |
| 2 |
39-17465 |
|
|
|
|
PISTON RING (.030 O.S.) |
AR |
|
|
| 3/4 |
23-818465 |
|
|
|
|
BEARING SET (STANDARD) |
1 |
|
|
| 3/4 |
23-818466 |
|
|
|
|
BEARING SET (.001 U.S.) |
AR |
|
|
| 3/4 |
23-818467 |
|
|
|
|
BEARING SET (.010 U.S.) |
AR |
|
|
| 3/4 |
23-818468 |
|
|
|
|
BEARING SET (.020 U.S.) |
AR |
|
|
| 5 |
17-843378 |
|
|
|
|
DOWEL PIN (1/4" DIA.) |
1 |
17-35312 |
|
| 6 |
8M0047213 |
|
|
|
|
FLYWHEEL |
1 |
222-9520 |
|
| 7 |
10-845757 |
|
|
|
|
SCREW |
6 |
10-49845 |
|
| 8 |
861523A9 |
|
|
|
|
COUPLING |
1 |
18311A17 |
|
| 9 |
10-14883 |
|
|
|
|
SCREW |
6 |
|
|
| 10 |
12-20572 |
|
|
|
|
WASHER |
6 |
|
|
| 11 |
22-49099 |
|
|
|
|
GREASE FITTING |
2 |
|
|
| 12 |
614-8164T |
|
|
|
|
CONNECTING ROD |
8 |
614-8164 |
|
| 13 |
10-85802 |
|
|
|
|
BOLT |
16 |
|
This Part is No Longer Available |
| 14 |
11-37493 |
|
|
|
|
NUT |
16 |
|
|
| 15 |
23-85701 |
|
|
|
|
BEARING UNIT (PAIR - STANDARD) |
8 |
|
|
| 15 |
23-85702 |
|
|
|
|
BEARING UNIT (PAIR - .001 U.S.) |
AR |
|
|
| 15 |
23-85703 |
|
|
|
|
BEARING UNIT (PAIR - .002 U.S.) |
AR |
|
|
| 15 |
23-85704 |
|
|
|
|
BEARING UNIT (PAIR - .010 U.S.) |
AR |
|
|
| 15 |
23-85705 |
|
|
|
|
BEARING UNIT (PAIR - .020 U.S.) |
AR |
|
|
| 16 |
429-9521T |
|
|
|
|
CRANKSHAFT |
1 |
429-9521 |
This Part is No Longer Available |
| 17 |
28-34466 |
|
|
|
|
KEY |
2 |
|
|
