350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Water Pump And Front Cover

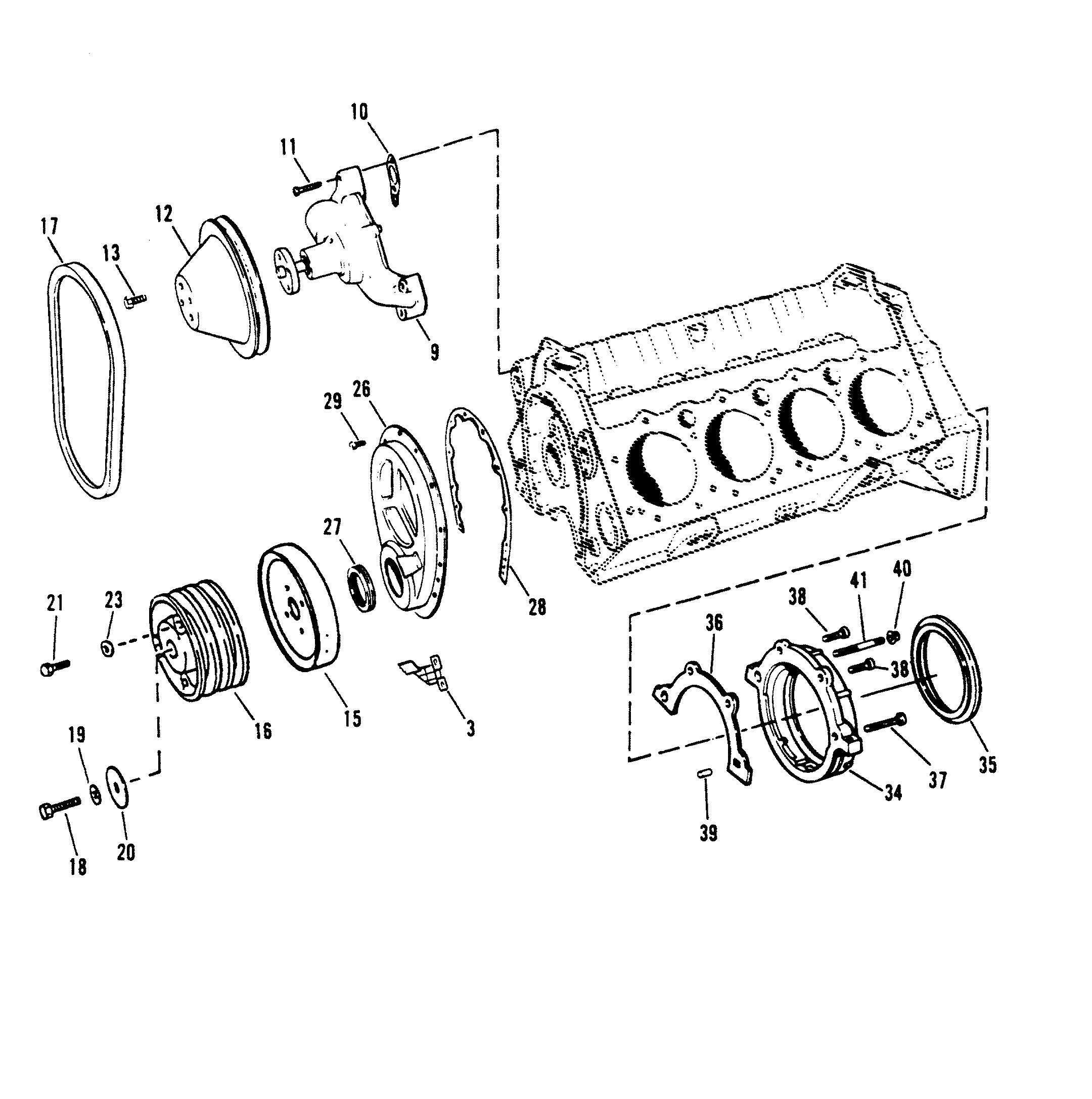

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 3 | 75435A1 | TIMING POINTER | 1 | 1 = CONTENTS OF GASKET SET [27-806988A95] | |||||
| 9 | 8503991 | WATER PUMP ASSEMBLY | 1 | 17437 | |||||
| 10 | 27-34897 | 676-9-60065 | 700-31380 | GASKET | 2 | 1 | |||
| 11 | 10-32132 | SCREW (1-3/4") | 2 | ||||||
| 11 | 10-47688 | SCREW (2-3/4") | 1 | ||||||
| 11 | 10-52200 | SCREW (1-1/2") | 1 | No longer made, limited availability | |||||
| 12 | 19692T01 | PULLEY | 1 | 19692T | |||||
| 13 | 10-47277 | SCREW | 4 | ||||||
| 15 | 75420 | HARMONIC BALANCER | 1 | ||||||
| 16 | 90081A1 | PULLEY | 1 | ||||||
| 17 | 57-48120Q1 | V-BELT | 1 | 57-48120A1 | |||||
| 18 | 10-32515 | BOLT | 1 | ||||||
| 19 | 13-39131 | LOCKWASHER | 1 | ||||||
| 20 | 35332001 | WASHER | 1 | 12-35332 | |||||
| 21 | 10-53833 | BOLT | 3 | ||||||
| 23 | WASHER | 3 | |||||||
| 26 | 14249A2 | COVER | 1 | ||||||
| 27 | 26-97335 | OIL SEAL | 1 | 1 | |||||
| 28 | 27-14250 | 676-9-61600 | 700-30530 | GASKET | 1 | 1 | |||
| 29 | 10-35366 | SCREW | 10 | ||||||
| 34 | 14239 | RETAINER (REAR) | 1 | ||||||
| 35 | 26-14240 | OIL SEAL (REAR) | 1 | 1 | |||||
| 36 | 27-881715 | GASKET | 1 | 27-14241 | 1 | ||||
| 37 | 10-8M0064241 | BOLT | 1 | 10-14243 | |||||
| 38 | 10-14242 | BOLT | 2 | ||||||
| 39 | 17-14263 | DOWEL PIN | 1 | ||||||
| 40 | 11-11996 | NUT | 1 | ||||||
| 41 | 16-14827 | STUD | 1 |
