350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Exhaust System

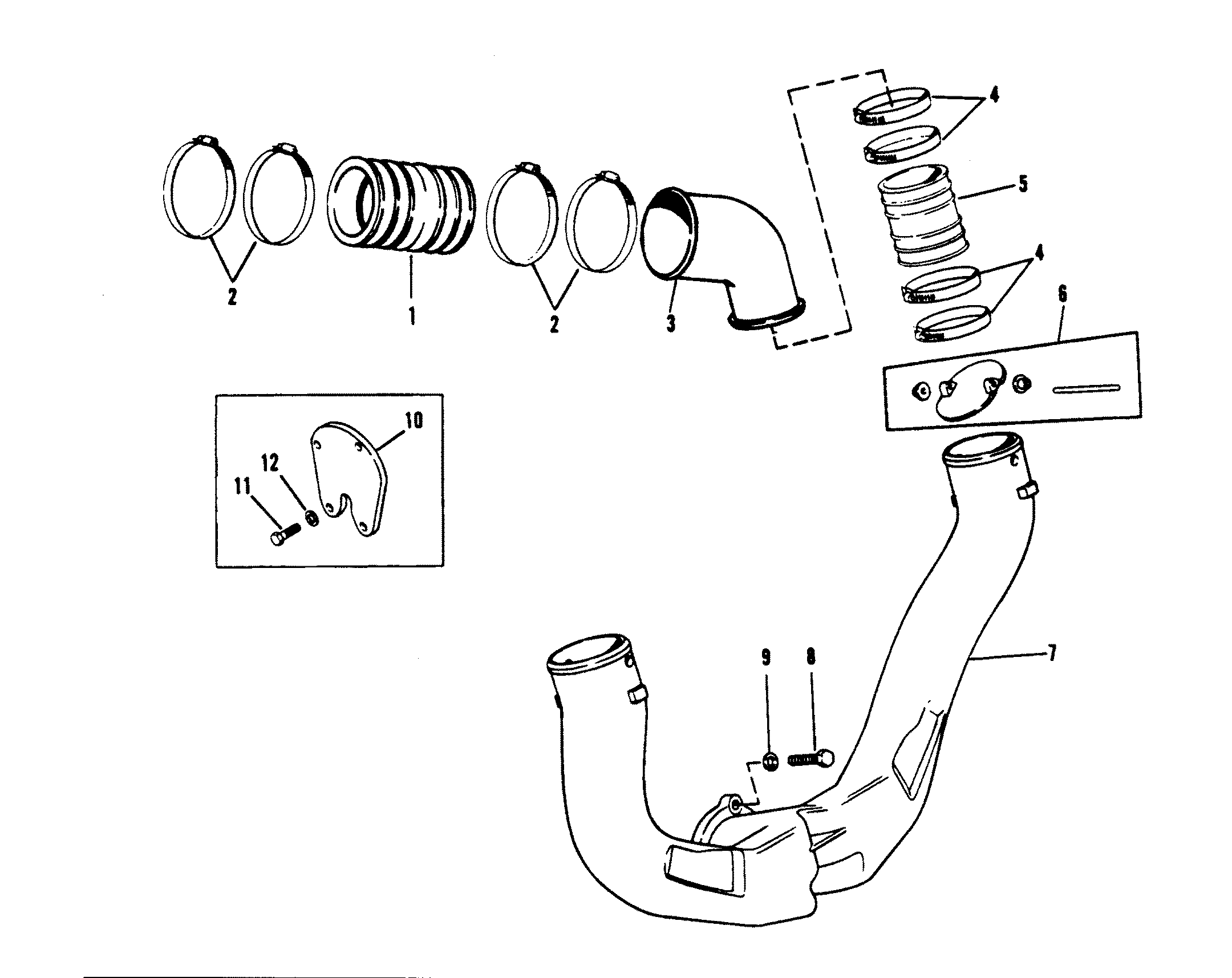

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-44348001 | TUBE | 2 | 32-44348T | THRU PROP EXHAUST | ||||
| 2 | 54-815504372 | 700-01100 | CLAMP | 8 | THRU PROP EXHAUST | ||||
| 3 | 11086T | EXHAUST ELBOW (PORT) | 1 | THRU PROP EXHAUST | |||||
| 3 | 14343T | EXHAUST ELBOW (STARBOARD) | 1 | THRU PROP EXHAUST | |||||
| 4 | 54-815504372 | 700-01100 | CLAMP | 8 | THRU PROP EXHAUST | ||||
| 5 | 32-14358001 | EXHAUST TUBE | 2 | 32-14358T | THRU PROP EXHAUST | ||||
| 6 | 807166A3 | WATER SHUTTER | 1 | 14348A1 | THRU PROP EXHAUST | ||||
| 7 | 807130A4 | EXHAUST PIPE | 1 | 44266T1 | THRU PROP EXHAUST | ||||
| 8 | 10-58640 | SCREW | 4 | THRU PROP EXHAUST | |||||
| 9 | 13-41471 | LOCKWASHER | 4 | THRU PROP EXHAUST | |||||
| 10 | 861776A2 | PLATE | 1 | 97350T1 | THRU TRANSOM EXHAUST | ||||
| 11 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW | 4 | THRU TRANSOM EXHAUST | ||
| 12 | 13-41471 | LOCKWASHER | 4 | THRU TRANSOM EXHAUST |
