350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Cylinder Block And Camshaft

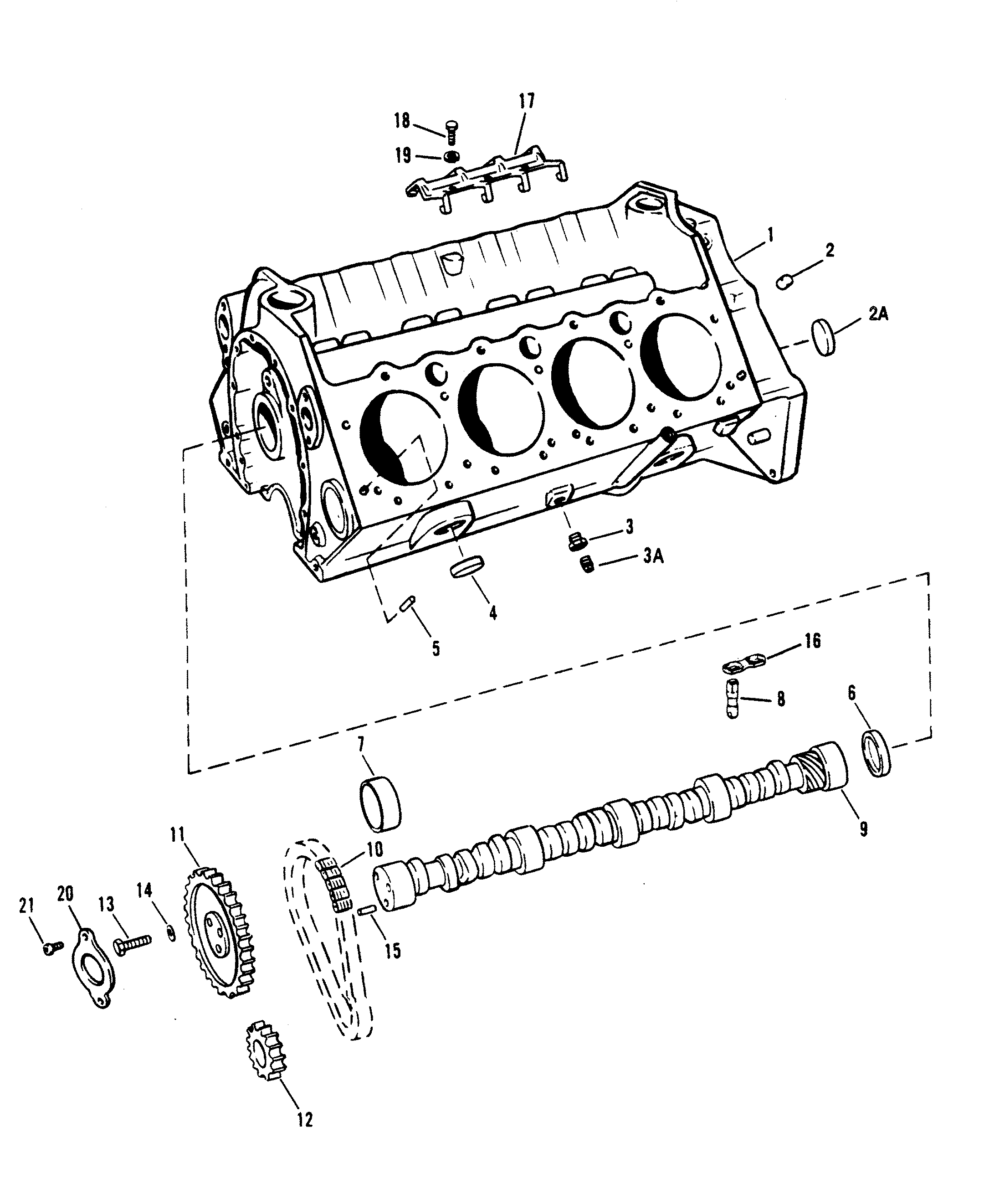

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841-9717         CYLINDER BLOCK ASSEMBLY 1   This Part is No Longer Available NOTE: MARINE LONG BLOCK ENGINE INCLUDES INTERNAL PARTS AND CYLINDER HEADS
2 22-48340         PIPE PLUG (1/4") 3
[841-9717] CYLINDER BLOCK ASSEMBLY INCLUDES ONLY
2A 19-816565         EXPANSION PLUG (15/32") 5
STANDARD PISTONS, PISTON RINGS, CRANKSHAFT BEARINGS AND CAMSHAFT BEARINGS.
3 22-48556         BUSHING 2
1 = CONTENTS OF GASKET SET [27-806988A95]
3A 22-328022         PIPE PLUG 2 22-32802
4 19-34270         EXPANSION PLUG (1-5/8" DIA.) 8

5 17-35465         DOWEL PIN (5/16" DIA.) 4

6 22-72640         PLUG 1

7 23-85674         BEARING UNIT (SET) 1

8 17340T         LIFTER 16 17340
9 431-811658         CAMSHAFT 1

10 11985         TIMING CHAIN 1   This Part is No Longer Available
11 43-811659         SPROCKET 1   This Part is No Longer Available
12 43-42755T         SPROCKET 1 43-42755 This Part is No Longer Available
13 10-845942         BOLT (3/4") 3 10-35339
14 12-848136         WASHER 3

15 17-843378         PIN 1 17-35312
16 17341T         RESTRICTOR 8 17341
17 811662         RETAINER 1

18 10-34500         SCREW 3

19 12-811664         LOCKWASHER 3   This Part is No Longer Available
20 845941         RETAINER 1 811663
21 10-17343         SCREW 2
No longer made, limited availability
- 27-806988A95         GASKET SET-ENGINE OVERHAUL 1   This Part is No Longer Available 1
- 92-809826         SEALER-RED RTV (WHERE APPLICABLE) 1 92-916011
- 34227Q02         PERFECT SEAL (WHERE APPLICABLE) 1 92-342271
- 807447R5         MARINE LONG BLOCK ENGINE (SEE NOTE BELOW) 1 806801A1
