350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Engine Mounting

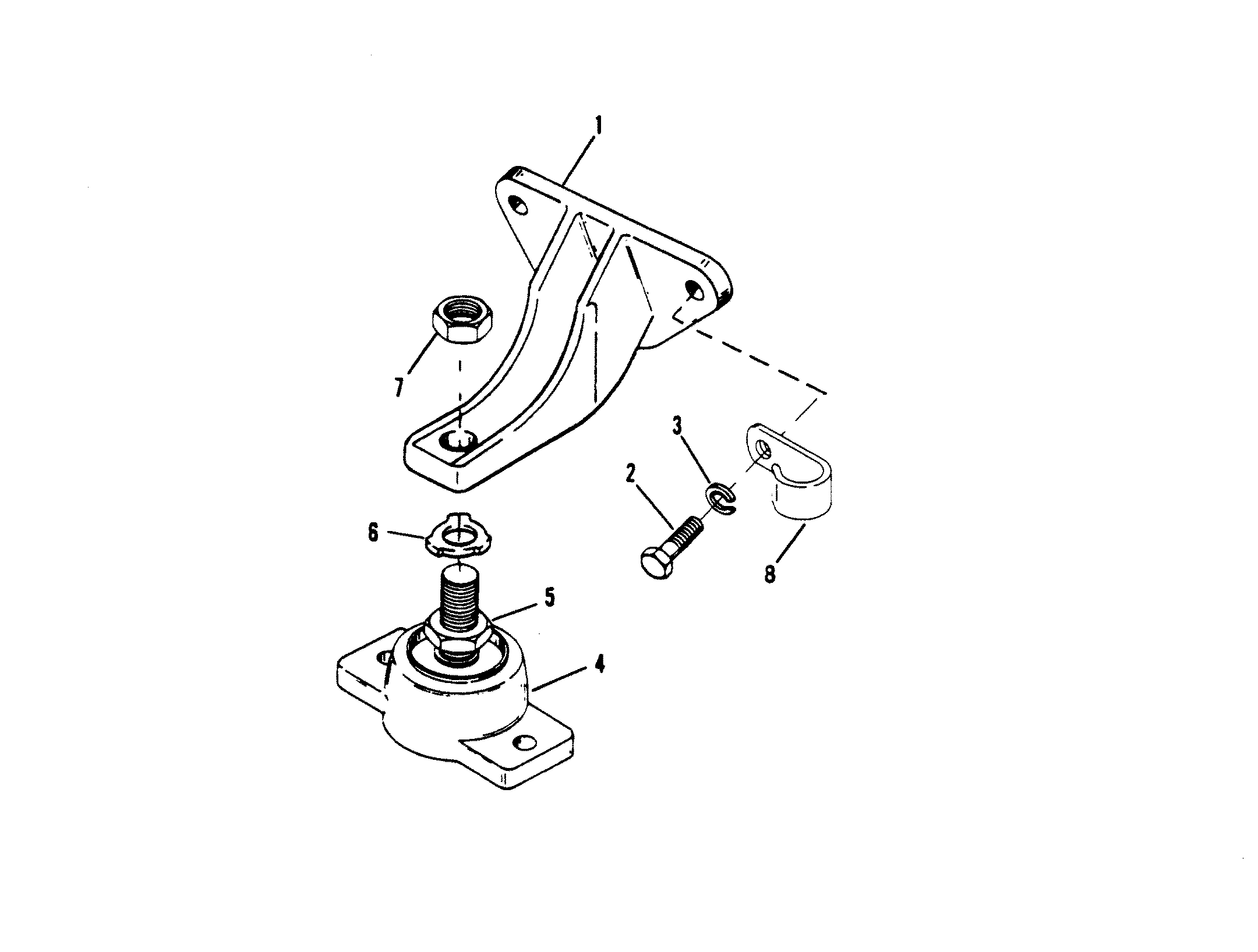

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Water Pump And Front Cover
- Wiring Harness (EFI) (Illustration)
- Wiring Harness (Engine) (Illustration)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET (FRONT) | 2 | ||||||
| 2 | 10-68101 | SCREW (1-3/8") | 5 | ||||||
| 2 | 10-48424 | SCREW (1-5/8") | 1 | ||||||
| 3 | 13-35048 | LOCKWASHER | 6 | ||||||
| 4 | 814263A1 | BASE ASSEMBLY | 2 | ||||||
| 5 | 11-816331 | NUT | 2 | ||||||
| 6 | 14-12657 | TAB WASHER | 2 | ||||||
| 7 | 11-859126 | NUT | 2 | 11-49252 | |||||
| 8 | 54-78945 | CLAMP | 1 |
