454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Alternator (Mando)

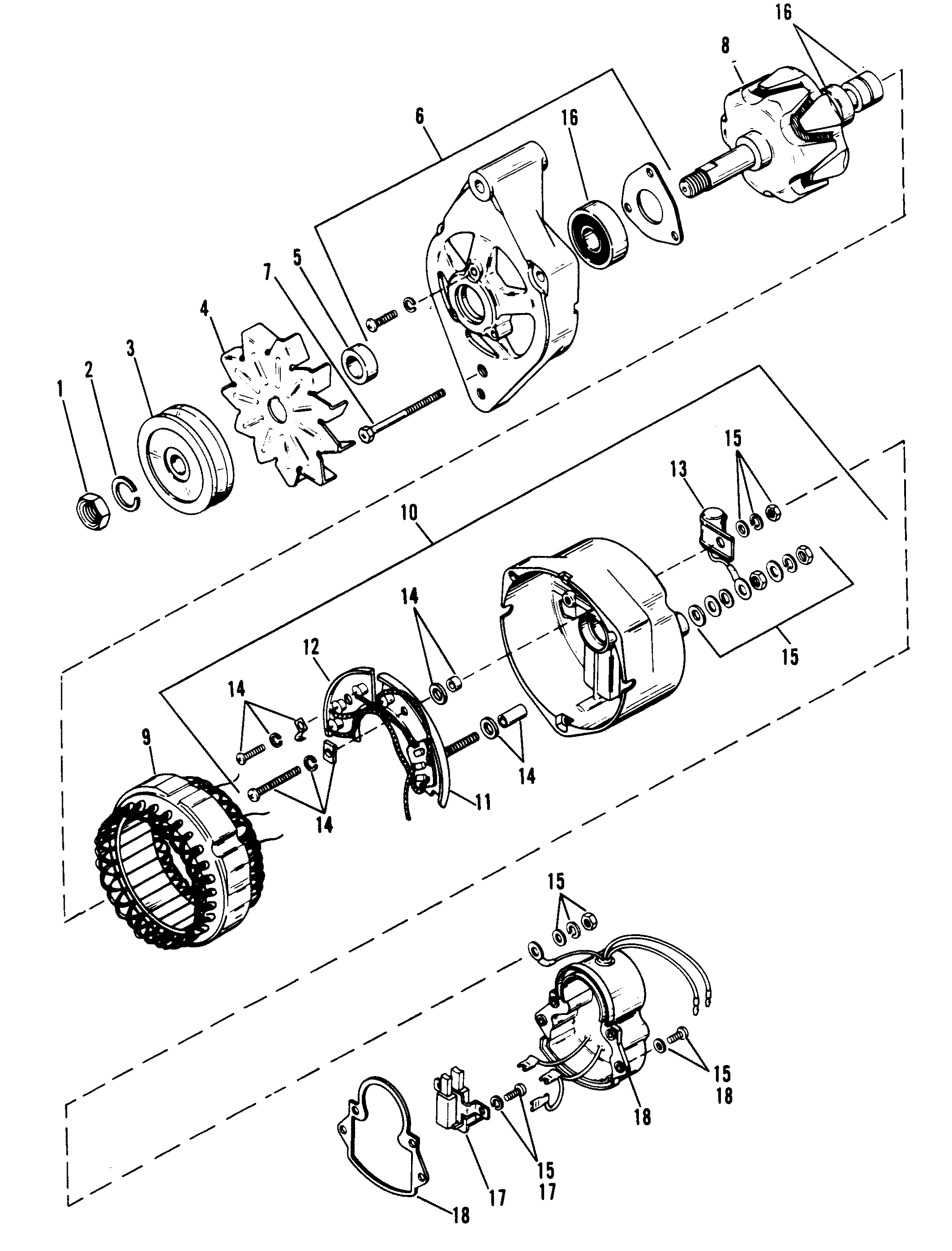

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-809136 | NUT | 1 | 11-42768 | |||||
| 2 | 13-42769 | LOCKWASHER | 1 | ||||||
| 3 | 809134 | PULLEY | 1 | 42770 | |||||
| 4 | 42771 | FAN | 1 | This Part is No Longer Available | |||||
| 5 | 23-42772 | SPACER | 1 | This Part is No Longer Available | |||||
| 6 | 42774 | BRACKET ASSEMBLY, FRONT | 1 | This Part is No Longer Available | |||||
| 7 | 10-42773 | BOLT | 3 | This Part is No Longer Available | |||||
| 8 | 42775 | ROTOR (INCLUDES BEARINGS) | 1 | This Part is No Longer Available | |||||
| 9 | 42776 | STATOR | 1 | This Part is No Longer Available | |||||
| 10 | 42777 | BRACKET ASSEMBLY, REAR | 1 | This Part is No Longer Available | |||||
| 11 | 42778 | HEAT SINK (+) | 1 | This Part is No Longer Available | |||||
| 12 | 42779 | HEAT SINK (-) | 1 | This Part is No Longer Available | |||||
| 13 | 42780 | CONDENSOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 14 | 42783 | HARDWARE KIT, INTERNAL | 1 | This Part is No Longer Available | |||||
| 15 | 42782 | HARDWARE KIT, EXTERNAL | 1 | This Part is No Longer Available | |||||
| 16 | 42781 | BEARING KIT | 1 | This Part is No Longer Available | |||||
| 17 | 42784 | BRUSH HOLDER KIT (INCL. SPRINGS & BRUSHES) | 1 | ||||||
| 18 | 42785 | REGULATOR KIT | 1 | No longer made, limited availability |
