454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Thermostat Housing (New Design)

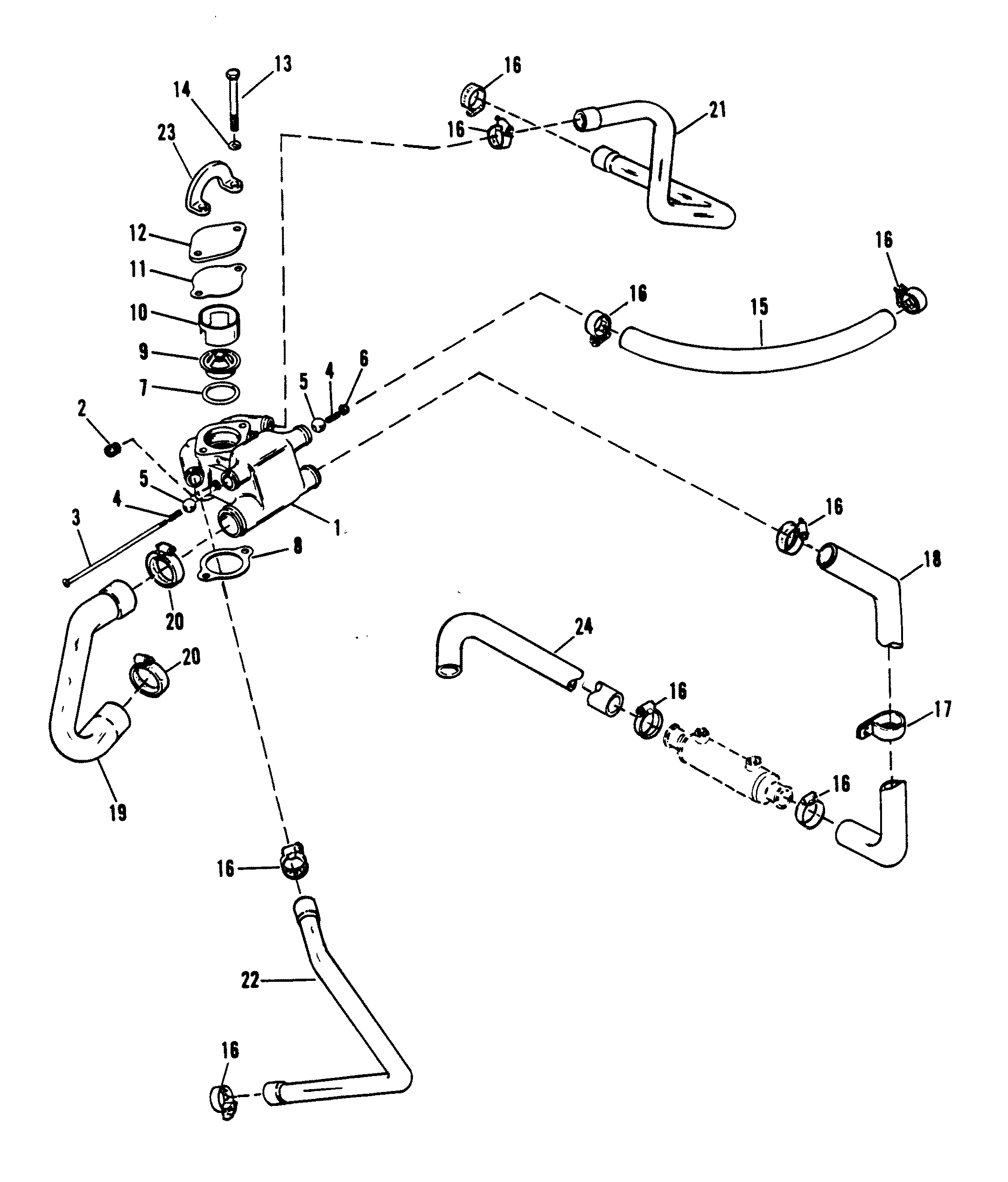

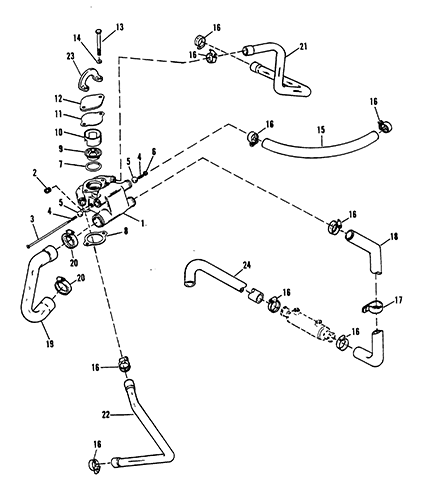

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16413A3         THERMOSTAT HOUSING ASSEMBLY 1   This Part is No Longer Available
2 22-32803     700-21894   PIPE PLUG 1

3 10-17989



SCREW 1

4 24-75533



SPRING 2

5 30-98475



NYLON BALL 2

6 11-29488

700-21163
NUT 1
No longer made, limited availability
7 25-30224
676-9-76501 700-82250
"O" RING 1
2
8 27-530451



GASKET, THERMOSTAT HOUSING 1
2
9 807252T1



THERMOSTAT (143 ) 1 59137
10 23-806922



SLEEVE, THERMOSTAT 1 23-17495
11 27-331792



GASKET, THERMOSTAT COVER 1
2
12 17494A1



COVER, THERMOSTAT 1

13 10-60410



SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4") 2

14 13-35048



LOCKWASHER, THERMOSTAT HOUSING SCREW 2

15 32-8M0062614



HOSE, TEE TO EXHAUST ELBOW (19") 2 32-3322070
16 54-815504220



CLAMP, HOSE AR 54-32780
17 54-47715



CLIP, HOSE 1

18 32-16011



HOSE, OIL COOLER TO THERMOSTAT HOUSING 1

19 32-897181



HOSE, THERMOSTAT HOUSING TO WATER PUMP 1 32-89718
20 54-815504232



CLAMP, HOSE 2 54-87268
21 32-897491



HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) 1 32-89749
22 32-897301



HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.) 1 32-89730
23 12552



LIFTING EYE 1

24 32-96246A4



HOSE, OIL COOLER TO DRIVE UNIT 1

- 27-65184A88



ENGINE GASKET SET 1
