454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Flame Arrestor (New Design)

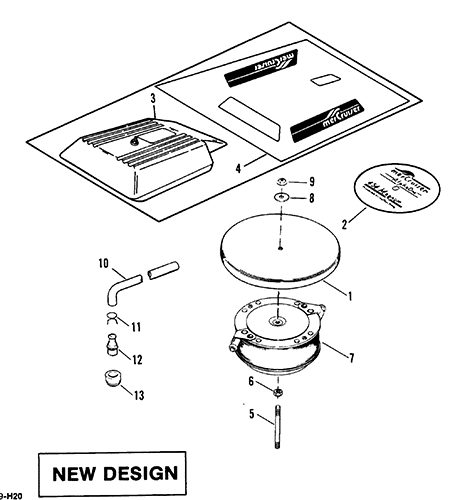

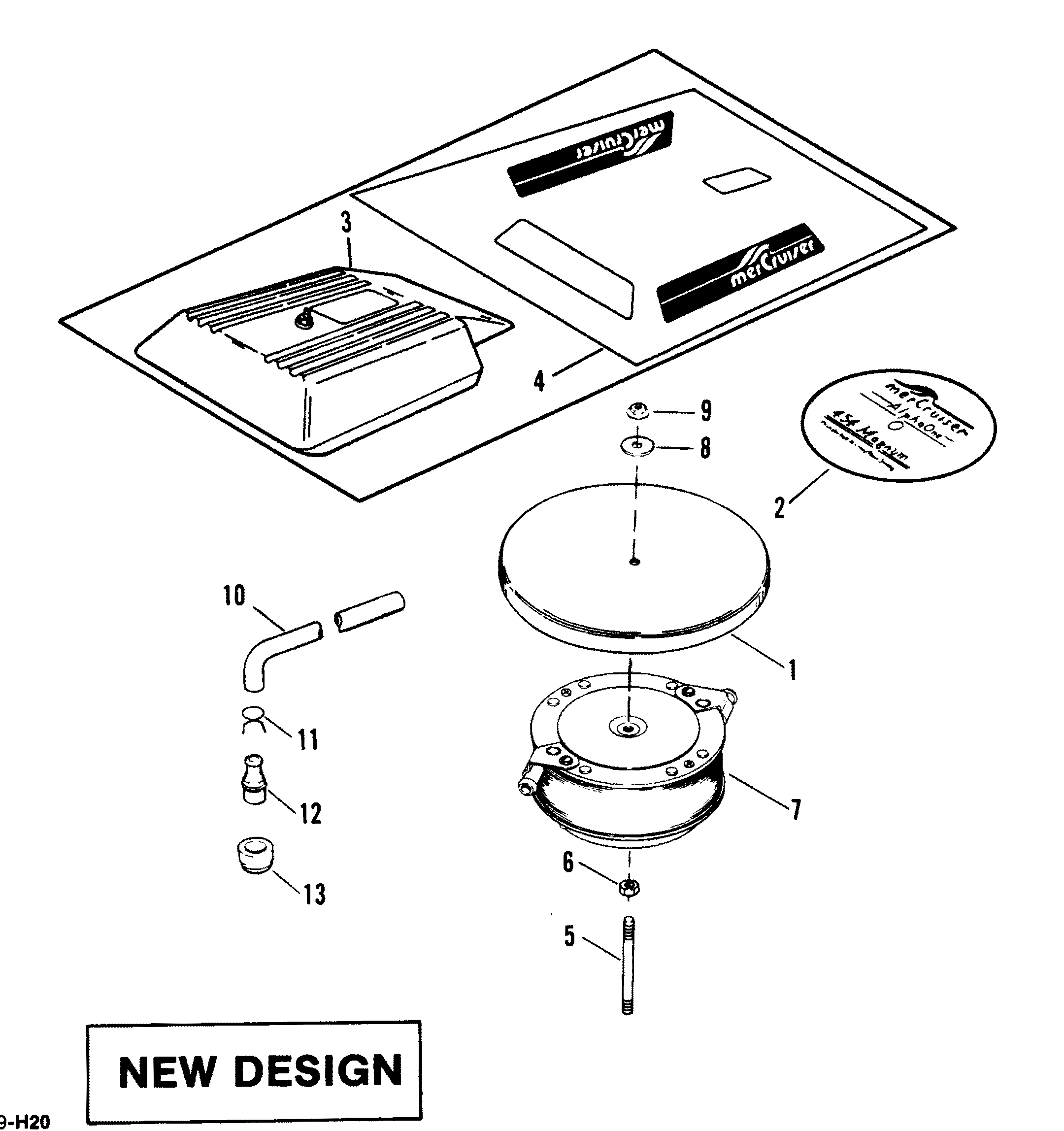

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14605T1         COVER, CARBURETOR 1 14605T This Part is No Longer Available
2 37-1372319         DECAL, HORSEPOWER 1   This Part is No Longer Available
3 18484A3         COVER, CARBURETOR 1
NEW DESIGN
4 37-812776A9         DECAL SET 1   This Part is No Longer Available NEW DESIGN
5 16-805161         STUD, FLAME ARRESTOR 1 16-578351 This Part is No Longer Available
6 11-28941         NUT, JAM - FLAME ARRESTOR 1

7 805298A1         FLAME ARRESTOR 1 57882T1
8 12-86400         WASHER, SEALING 1

9 11-826709109         NUT, FLAME ARRESTOR STUD 1 11-20586
10 32-8M0062669         HOSE, VENT - CARBURETOR (11-1/4") 2 32-9331512
11 54-53101         CLAMP, VENT HOSE 4   This Part is No Longer Available
12 47957         CONNECTOR, VENT HOSE (STRAIGHT) 1   This Part is No Longer Available No longer made, limited availability
12 97850T         ELBOW, VENT HOSE (90 ) 1 97850
13 25-59987         GROMMET, ROCKER COVER 2
No longer made, limited availability
