454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Cylinder Block And Camshaft

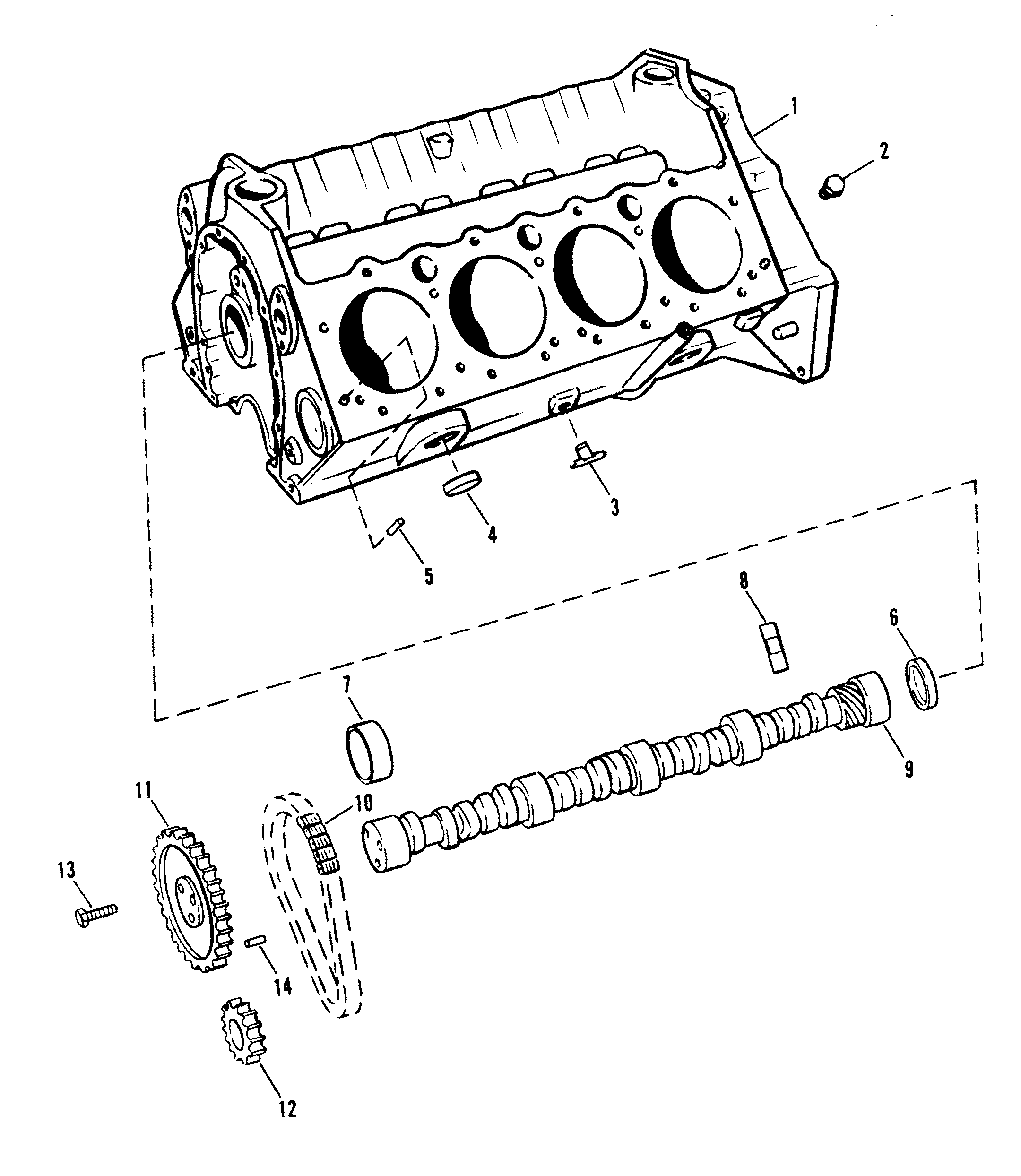

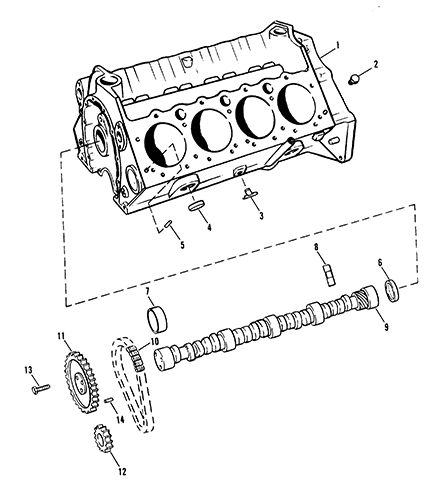

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842-9639 | CYLINDER BLOCK ASSEMBLY | 1 | This Part is No Longer Available (Note: 454 Magnum Short Block-18706A1) | |||||
| 2 | 22-48340 | PIPE PLUG, CYLINDER BLOCK (1/4") | 4 | ||||||
| 2 | 22-48358T | PIPE PLUG, CYLINDER BLOCK (3/8") | 2 | 22-48358 | |||||
| 3 | 22-16951Q1 | DRAIN COCK, CYLINDER BLOCK | 2 | 22-16951A1 | |||||
| 4 | 22-69300 | PLUG, EXPANSION - CYLINDER BLOCK (1-3/4" DIA.) | 8 | 19-37478 | |||||
| 5 | 17-52190 | PIN, DOWEL - BLOCK TO HEAD | 4 | ||||||
| 6 | 19-94140 | PLUG, EXPANSION - CAMSHAFT BEARING HOLE | 1 | ||||||
| 7 | 23-85684 | BEARING UNIT, CAMSHAFT (SET) | 1 | ||||||
| 8 | 72638 | LIFTER, HYDRAULIC VALVE - TAPPET | 16 | ||||||
| 9 | 431-4734 | CAMSHAFT | 1 | ||||||
| 10 | 75588T | CHAIN, CAMSHAFT TIMING | 1 | 75588 | This Part is No Longer Available | ||||
| 11 | 43-86481 | SPROCKET, CAMSHAFT | 1 | This Part is No Longer Available | |||||
| 12 | 43-86482 | SPROCKET, CRANKSHAFT TIMING | 1 | This Part is No Longer Available | |||||
| 13 | 10-34505 | BOLT, CAMSHAFT TIMING SPROCKET | 3 | ||||||
| 14 | 17-843378 | PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.) | 1 | 17-35312 | |||||
| - | 27-65184A88 | ENGINE GASKET SET | 1 | (Note: 454 Magnum Long Block - 18706A1) |
