454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Carburetor And Linakge

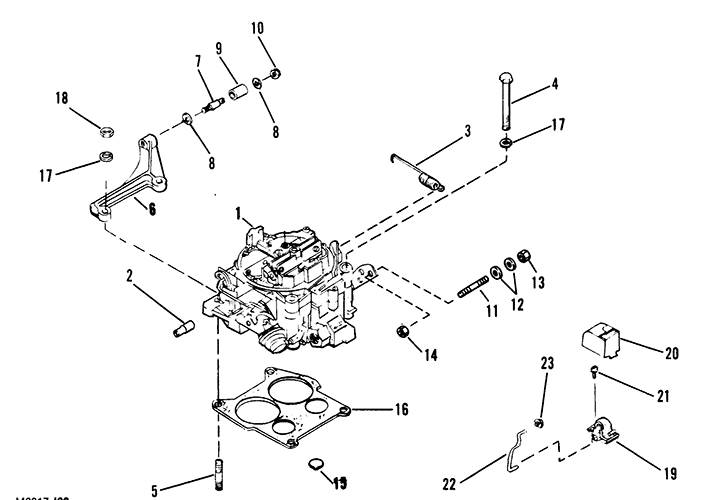

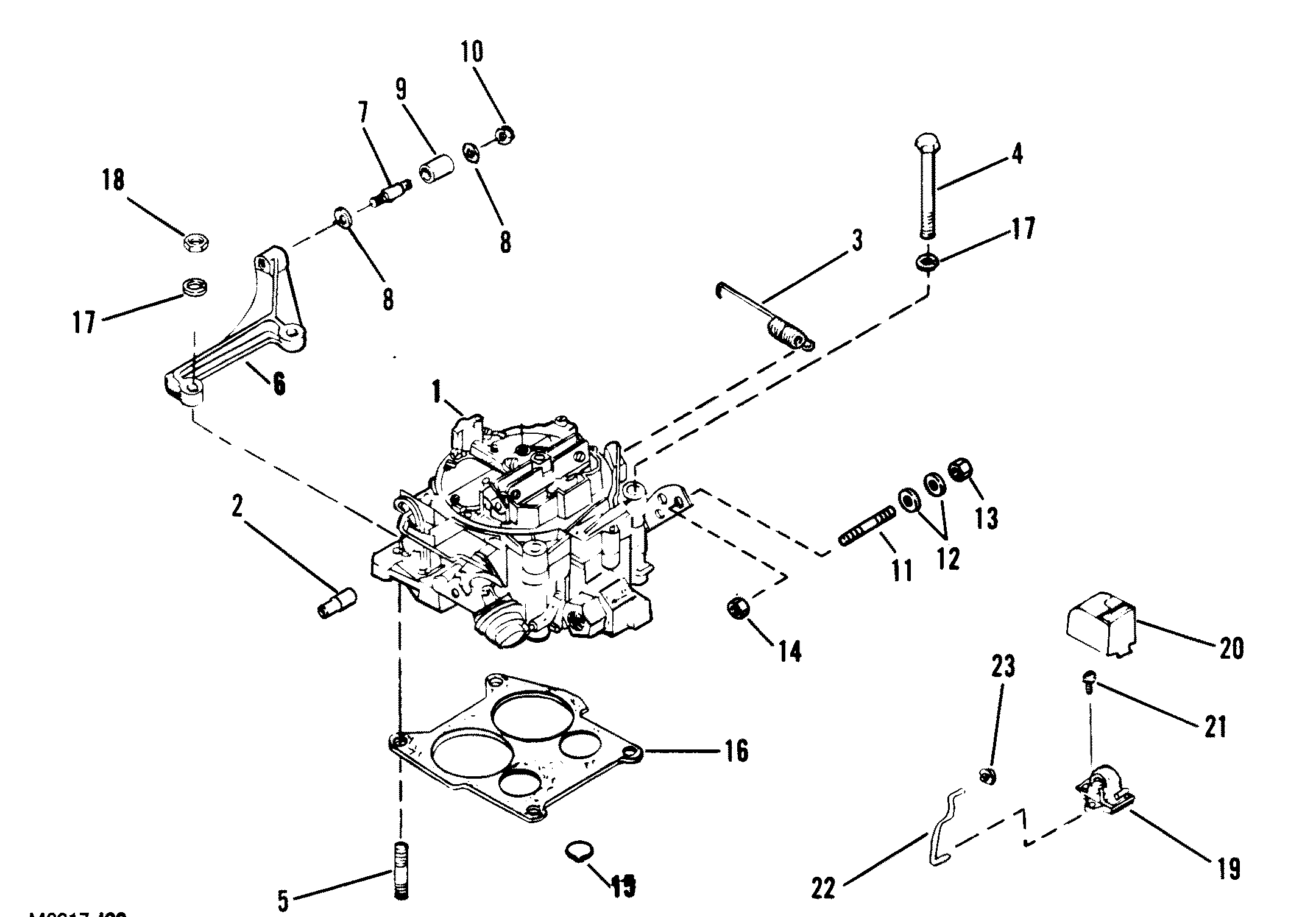

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1347-804626R1         CARBURETOR ASSEMBLY 1 1347-8291A3
2 22-97282         CONNECTOR, CARBURETOR 1   This Part is No Longer Available
3 24-897454         SPRING, THROTTLE RETURN 1 24-32817
4 10-74822         SCREW, CARBURETOR (3-1/2") 2

5 16-46857         STUD, CARBURETOR (1-7/8") 2

6 805359A02         BRACKET, THROTTLE CABLE 1 41329A3
7 16-38525         STUD, THROTTLE CABLE 1

8 12-24664         WASHER, THROTTLE CABLE STUD 2

9 23-31866         SPACER, THROTTLE CABLE STUD 1

10 11-826709109         NUT, THROTTLE CABLE STUD 1 11-20586
11 16-96112         STUD, THROTTLE CABLE 1

12 12-29245         WASHER, THROTTLE CABLE STUD 2

13 11-8267089         NUT, THROTTLE CABLE STUD 1 11-20361
14 11-826709109         NUT, THROTTLE CABLE STUD 1 11-20586
15 22-48358T         PLUG, INTAKE MANIFOLD VACUUM HOLE 1 22-48358
16 27-524572         GASKET, CARBURETOR 1
2
17 12-20084         WASHER, CARBURETOR STUD 4

18 11-29250         NUT, CARBURETOR STUD 2

19 66205         CHOKE, AUTOMATIC - CARBURETOR 1   This Part is No Longer Available
20 63922         COVER, AUTOMATIC CHOKE 1 66198
21 10-69235         SCREW, AUTOMATIC CHOKE THERMOSTAT 1

22 77931         LEVER, CHOKE 1

23 54-59989         CLIP, AUTOMATIC CHOKE ROD 1
No longer made, limited availability
