454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Flywheel Housing

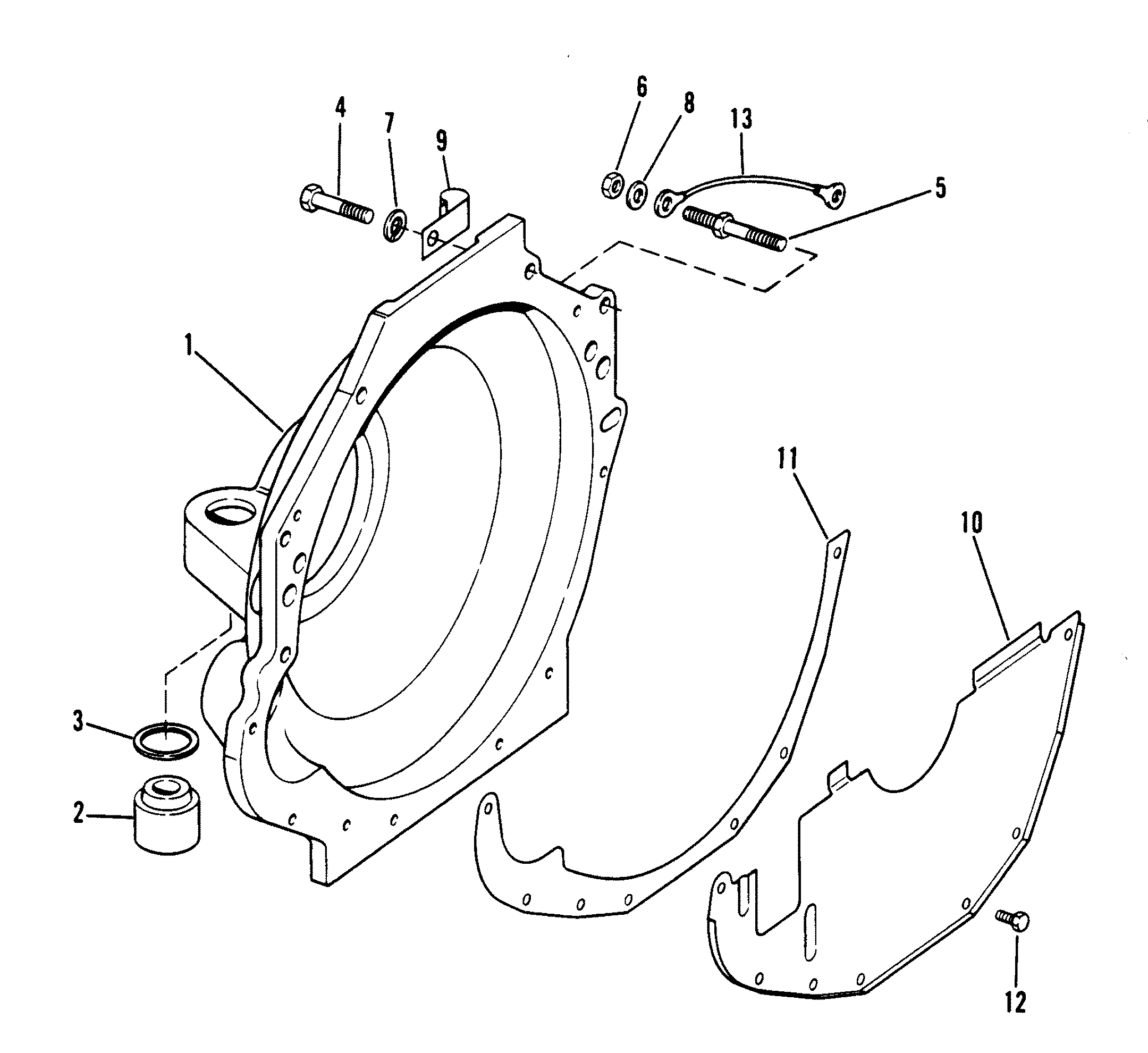

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04         FLYWHEEL HOUSING 1 12675A7
2 865329A02         MOUNT, RUBBER - FLYWHEEL HOUSING 2 99297A1
3 23-99322         SPACER, RUBBER MOUNT - FLYWHEEL HOUSING 2

4 10-37612         SCREW, FLYWHEEL HOUSING ATTACHING (1-1/4") 4

4 10-358701         SCREW, FLYWHEEL HOUSING ATTACHING (2") 1 10-64900
5 16-64066         STUD, FLYWHEEL HOUSING ATTACHING (2-1/4") 1

6 11-32219         NUT, FLYWHEEL HOUSING ATTACHING STUD 1

7 13-35048         LOCKWASHER, FLYWHEEL HOUSING SCREW (3/8") 6

8 12-20572         WASHER, FLYWHEEL HOUSING SCREW - SPECIAL (3/8") 1

9 54-78945         "J" CLAMP, FLYWHEEL HOUSING STUD 1

9 54-92850         CLAMP 2

10 13930A3         COVER ASSEMBLY 1   This Part is No Longer Available
11 27-96274         GASKET, FLYWHEEL HOUSING SCREW 1   This Part is No Longer Available
12 10-32773         SCREW, COVER TO FLYWHEEL HOUSING 7

13 84-62826A6         WIRE, FLYWHEEL HOUSING STUD 1
