| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

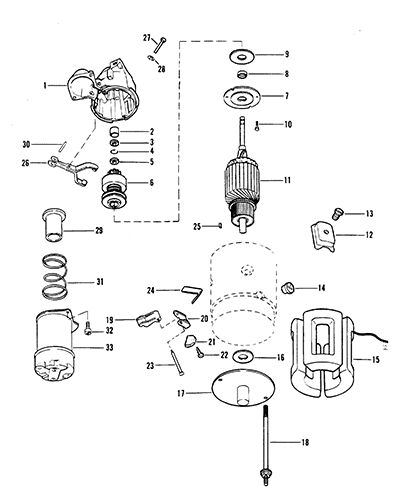

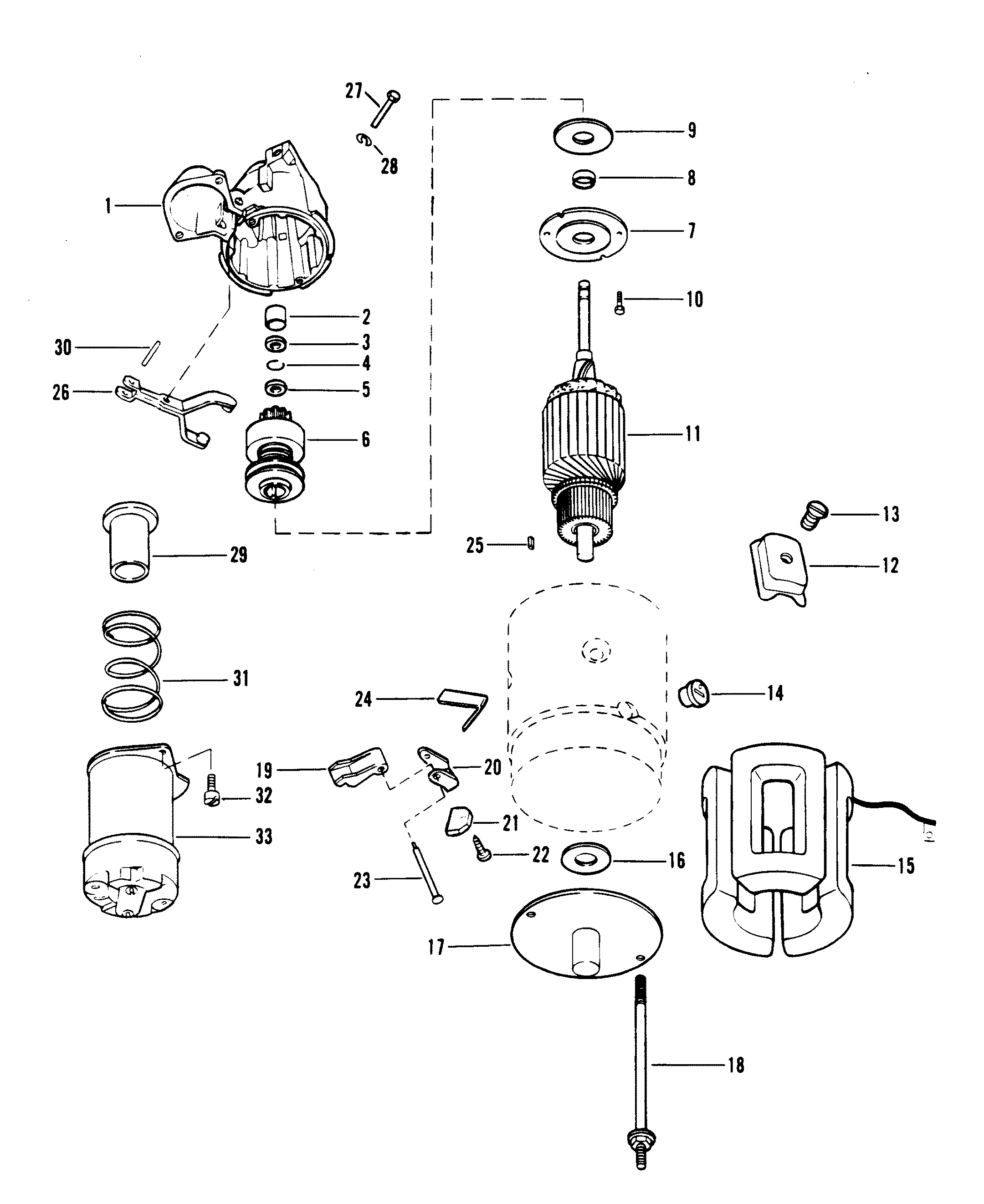

50-863007A1 |
620-5399M |
676-9-15907 |
|
602-10099MD |
STARTER MOTOR |
1 |
50-99418A2 |
|
| 1 |
75666 |
|
|
|
|
HOUSING |
1 |
|
This Part is No Longer Available |
| 2 |
23-33369 |
|
|
|
|
BUSHING, DRIVE END HOUSING |
1 |
|
This Part is No Longer Available |
| 3 |
23-809457 |
|
|
|
|
COLLAR, THRUST |
1 |
33292 |
This Part is No Longer Available |
| 4 |
53-33290 |
|
|
|
|
RING, RETAINING - PINION STOP COLLAR |
1 |
|
|
| 5 |
33291 |
|
|
|
|
COLLAR, PINION STOP |
1 |
|
|
| 6 |
79205T |
|
|
|
|
DRIVE ASSEMBLY, CLUTCH |
1 |
79205 |
This Part is No Longer Available |
| 7 |
79396 |
|
|
|
|
PLATE, BEARING |
1 |
|
This Part is No Longer Available |
| 8 |
23-71694 |
|
|
|
|
BUSHING, BEARING PLATE |
1 |
|
This Part is No Longer Available |
| 9 |
12-68614 |
|
|
|
|
WASHER, BEARING PLATE |
1 |
|
This Part is No Longer Available |
| 10 |
10-79209 |
|
|
|
|
SCREW, BEARING PLATE |
2 |
|
This Part is No Longer Available |
| 11 |
75665 |
|
|
|
|
ARMATURE |
1 |
|
This Part is No Longer Available |
| 12 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SHOE, POLE - FIELD COIL (DELCO REMY #810601) |
4 |
|
This part is not sold separate |
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW, POLE SOLE TO FIELD COIL (DELCO REMY #1968396)4 |
4 |
|
This part is not sold separate |
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GROMMET, FIELD COIL (DELCO REMY #1846097) |
1 |
|
This part is not sold separate |
| 15 |
75664 |
|
|
|
|
FIELD COIL ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 16 |
12-33258 |
|
|
|
|
WASHER, LEATHER -COMMUTATOR END FRAME |
1 |
|
This Part is No Longer Available |
| 17 |
79211 |
|
|
|
|
FRAME, COMMUTATOR END |
1 |
|
This Part is No Longer Available |
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, BOLT, THRU (DELCO REMY #1941111) |
1 |
|
This part is not sold separate |
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, BOLT, THRU (DELCO REMY #1939970) |
1 |
|
This part is not sold separate |
| 19 |
33284 |
|
|
|
|
HOLDER, INSULATED - FIELD FRAME BRUSH |
2 |
|
This Part is No Longer Available |
| 20 |
33283 |
|
|
|
|
HOLDER, FIELD FRAME BRUSH GROUND |
2 |
|
This Part is No Longer Available |
| 21 |
33270 |
|
|
|
|
BRUSH, FIELD FRAME |
4 |
|
|
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW, BRUSH LEAD (DELCO REMY #1967747) |
2 |
|
This part is not sold separate |
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW, BRUSH LEAD (DELCO REMY #443527) |
2 |
|
This part is not sold separate |
| 23 |
33294 |
|
|
|
|
SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS |
2 |
|
This Part is No Longer Available |
| 24 |
24-33285 |
|
|
|
|
SPRING, FIELD FRAME BRUSH |
4 |
|
This Part is No Longer Available |
| 25 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, PIN, DOWEL - FIELD FRAME (DELCO REMY #1985696) |
1 |
|
This part is not sold separate |
| 26 |
71698 |
|
|
|
|
LEVER, SHIFT |
1 |
|
This Part is No Longer Available |
| 27 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, STUD, SHIFT LEVER (DELCO REMY #1945804) |
1 |
|
This part is not sold separate |
| 28 |
53-33354 |
|
|
|
|
RETAINING RING, STUD |
1 |
|
This Part is No Longer Available |
| 29 |
33317 |
|
|
|
|
PLUNGER, SHIFT LEVER |
1 |
|
This Part is No Longer Available |
| 30 |
17-79207 |
|
|
|
|
PIN, PLUNGER TO SHIFT LEVER |
1 |
|
This Part is No Longer Available |
| 31 |
24-46889 |
|
|
|
|
SPRING, PLUNGER RETURN |
1 |
|
This Part is No Longer Available |
| 32 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW, SOLENOID SWITCH (DELCO REMY #9413260) |
2 |
|
This part is not sold separate |
| 33 |
13037 |
|
|
|
|
SOLENOID SWITCH (4-1/4" LONG) |
1 |
|
|
| 33 |
89-18080 |
|
|
|
|
SOLENOID SWITCH (3-5/8" LONG) |
1 |
|
This Part is No Longer Available |
