454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Exhaust System

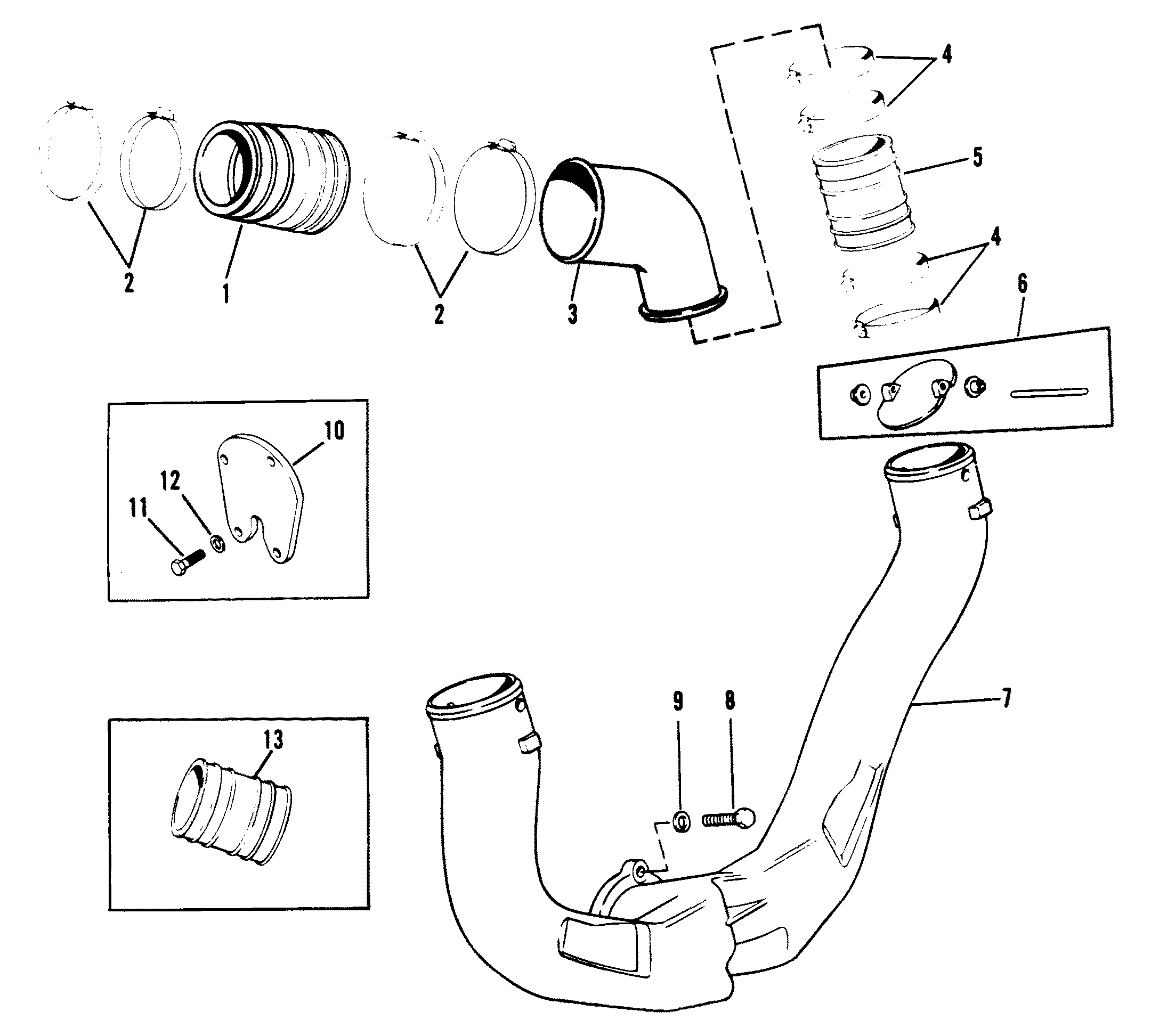

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-44348001



TUBE, EXHAUST 2 32-44348 THRU PROP EXHAUST
2 54-815504372

700-01100
CLAMP, EXHAUST BELLOWS 8 54-31765 THRU PROP EXHAUST
3 44267T



EXHAUST ELBOW ASSEMBLY 2
THRU PROP EXHAUST
4 54-815504372

700-01100
CLAMP, EXHAUST TUBE 8 54-31765 THRU PROP EXHAUST
5 32-14358001



EXHAUST TUBE 2 32-14358 THRU PROP EXHAUST
6 807166A3



WATER SHUTTER 1 14348A1 THRU PROP EXHAUST
7 807130A4



EXHAUST PIPE 1 44266T1 THRU PROP EXHAUST
8 10-58640



SCREW, EXHAUST ELBOW (1-1/4") 4
THRU PROP EXHAUST
9 13-41471



LOCKWASHER, EXHAUST ELBOW SCREW 4
THRU PROP EXHAUST
10 861776A2



PLATE 1 97350T THRU TRANSOM EXHAUST
11 10-98794
676-9-78129 700-28300 525-10-98794 SCREW 4
THRU TRANSOM EXHAUST
12 13-41471



LOCKWASHER 4
THRU TRANSOM EXHAUST
13 78458A1



EXHAUST TUBE 1
THRU TRANSOM EXHAUST
