454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Wiring Harness, Electrical And Ignition

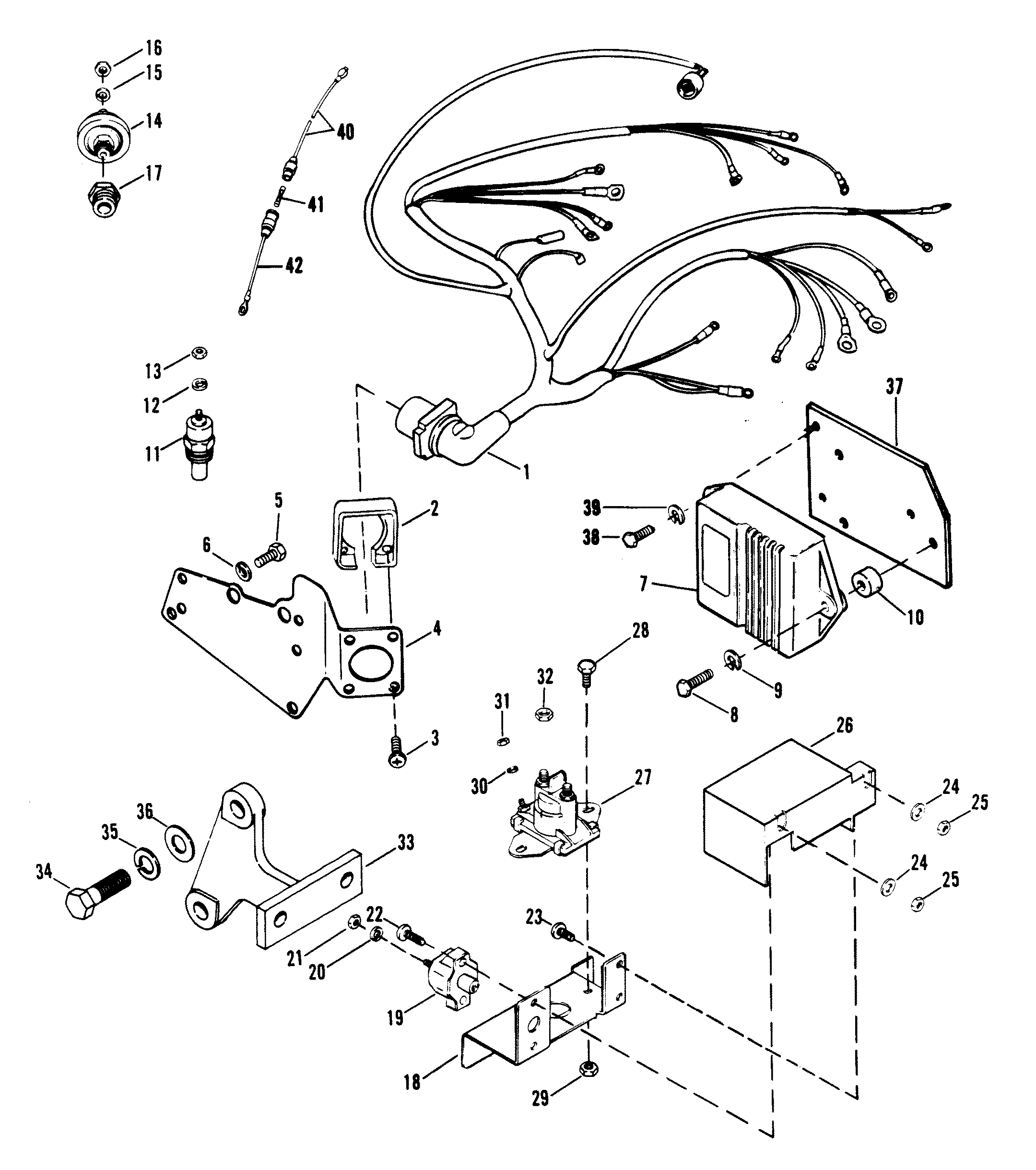

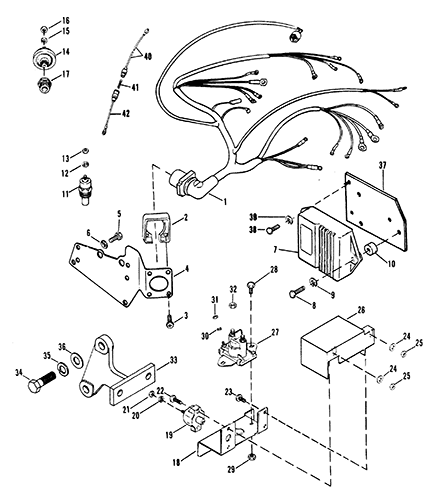

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-94111A11         WIRING HARNESS 1   This Part is No Longer Available
2 26079A2         PLATE, WIRING HARNESS 1 26079 METAL
3 10-34696         SCREW, WIRING HARNESS PALTE (3/4") 4
METAL
2 26079A2         PLATE, WIRING HARNESS 1
PLASTIC
3 10-15001         SCREW, PLATE 4
PLASTIC
4 98493A2         BRACKET, MOUNTING 1   This Part is No Longer Available
5 10-49668         SCREW, MOUNTING BRACKET 3

6 13-26992         LOCKWASHER, MOUNTING BRACKET SCREW (5/8") 3

7 15248A1         IGNITION AMPLIFIER (W/HARNESS 84-15275A1) 1   This Part is No Longer Available
8 10-76630         SCREW, IGNITION AMPLIFIER 3

9 13-26992         LOCKWASHER, IGNITION AMPLIFIER SCREW 3

10 23-92152T         SPACER, IGNITION AMPLIFIER SCREW 3 23-92152
11 806490T   676-9-42400     WATER TEMPERATURE SENDER 1 97257A1
11 49734         WATER TEMPERATURE SENDER (DUAL) OPT. 49734A1
12 13-26996         LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10) 1

13 11-68219         NUT, WATER TEMPERATURE SENDER TERMINAL (#10) 1

14 8M0068784         OIL PRESSURE SENDER 1 90806
14 37293T         OIL PRESSURE SENDER (DUAL) OPT. 37293
15 13-26996         LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10) 1

16 11-68219         NUT, OIL PRESSURE SENDER TERMINAL (#10) 1

17 22-64013         REDUCER, OIL PRESSURE SENDER 1

18 97163         BRACKET, MOUNTING 1   This Part is No Longer Available
19 88-11178A01         CIRCUIT BREAKER (50 AMP) 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
20 13-26996         LOCKWASHER, CIRCUIT BREAKER TERMINAL 2

21 11-68219         NUT, CIRCUIT BREAKER TERMINAL 2

22 10-45862         SCREW, CIRCUIT BREAKER (7/8") 2

23 10-22028         SCREW, INSULATOR 1
No longer made, limited availability
24 12-56681         WASHER, CIRCUIT BREAKER SCREW 3

25 11-46438         NUT, INSULATOR SCREW 3

26 85-96819T         INSULATOR, CIRCUIT BREAKER 1

27 89-96054T     700-72390   STARTER SOLENOID 1 89-96054
28 10-96138         SCREW, STARTER SOLENOID (5/8") 2 10-47910
29 11-20088         NUT, STARTER SOLENOID SCREW 2   This Part is No Longer Available
30 13-26992         LOCKWASHER, STARTER SOLENOID TERMINAL 2

31 11-26419         NUT, STARTER SOLENOID TERMINAL (10-32) 2

32 11-94330         NUT, STARTER SOLENOID TERMINAL (1/4-20) 2

33 96940T         BRACKET, ADAPTOR 1   This Part is No Longer Available
34 10-37612         SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4") 1
3/8-16 THREAD
35 13-35048     700-21495   LOCKWASHER, ADAPTOR BRACKET SCREW 1
3/8-16 THREAD
36 12-20553     700-21675   WASHER, ADAPTOR BRACKET SCREW 1
3/8-16 THREAD
34 10-47462         SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4") 1
7/16-14 THREAD
35 13-32993         LOCKWASHER, ADAPTOR BRACKET SCREW 1
7/16-14 THREAD
36 12-22248         WASHER, ADAPTOR BRACKET SCREW 1
7/16-14 THREAD
37 125001         PLATE, IGNITION AMPLIFIER 1   This Part is No Longer Available OLD DESIGN
38 10-76596         SCREW, AMPLIFIER PLATE 3
OLD DESIGN
39 13-26992         LOCKWASHER, AMPLIFIER PLATE SCREW 3
OLD DESIGN
40 84-95084A9         WIRE ASSEMBLY, FUSE (LONG - RED) 1

41 88-79091         FUSE (20 AMP) 1

42 84-95084A10         WIRE ASSEMBLY, FUSE (SHORT - RED) 1

- 84-11149A5         ADAPTOR KIT 1   This Part is No Longer Available
