454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Shift Bracket (New Design With Spring Guide)

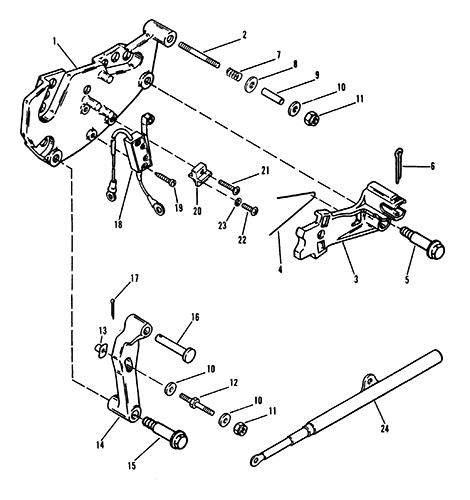

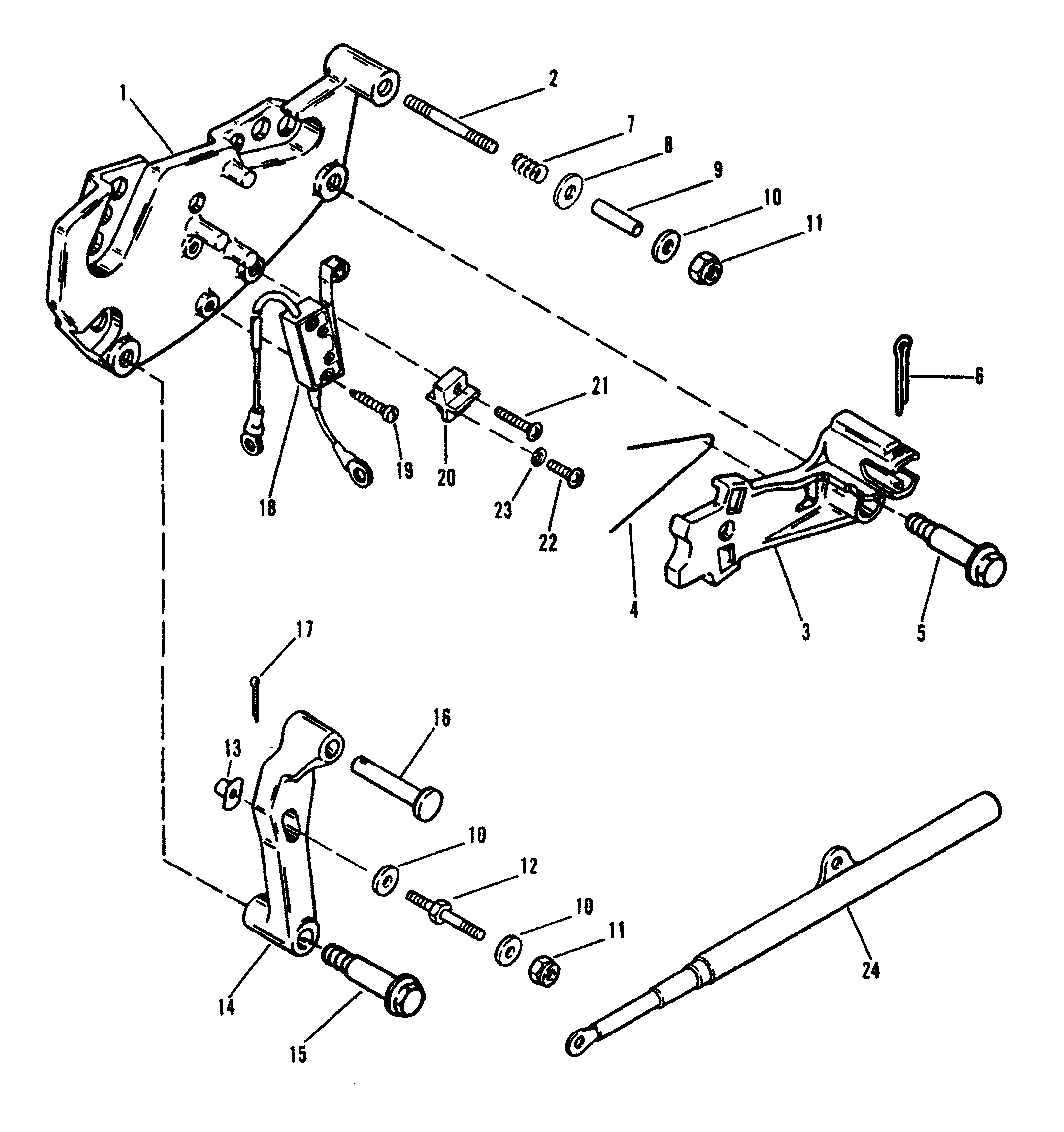

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15         SHIFT BRACKET ASSEMBLY 1 99237A10
2 16-8140021         STUD, SHIFT CABLE 1 16-814002 No longer made, limited availability
3 13051A4         LEVER ASSEMBLY, ACTUATING 1   This Part is No Longer Available
4 24-862850         SPRING, ACTUATING LEVER 1 24-45599
5 10-13743         SHOULDER SCREW, LEVER 1

6 18-328571         COTTER PIN, SHIFT CABLE RETAINING 1 18-32857
7 24-98880         SPRING, SHIFT CABLE STUD 1

8 12-56720         WASHER, SHIFT BRACKET STUD 1

9 16-8140021         SPACER, SHIFT CABLE STUD 1 23-814003
10 12-35462         WASHER, SHIFT CABLE STUD 3

11 11-8267119         NUT, SHIFT CABLE STUD 2 11-13438
12 16-96112         STUD, SHIFT CABLE 1

13 11-63341         TEE NUT, SHIFT CABLE STUD 1

14 13898T06         SHIFT LEVER ASSEMBLY 1 13898A3
15 10-13743         SHOULDER SCREW, SHIFT LEVER 1

16 17-814001         SHOULDER PIN, SHIFT LEVER 1

17 18-210711         COTTER PIN, SHIFT LEVER 1 18-21071
18 39670A28         SWITCH ASSEMBLY, CUT-OUT 1   This Part is No Longer Available
19 10-30902         SCREW, SWITCH TO SHIFT BRACKET 2

20 86-66986         TERMINAL BLOCK 1   This Part is No Longer Available
21 10-96113         SCREW, TERMINAL BLOCK (7/8") 1

22 10-73287         SCREW, TERMINAL BLOCK (3/8") 1

23 13-26996         LOCKWASHER, TERMINAL BLOCK SCREW 2

24 813995A1         SPRING GUIDE ASSEMBLY 1
