454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Oil Filter And Adapter

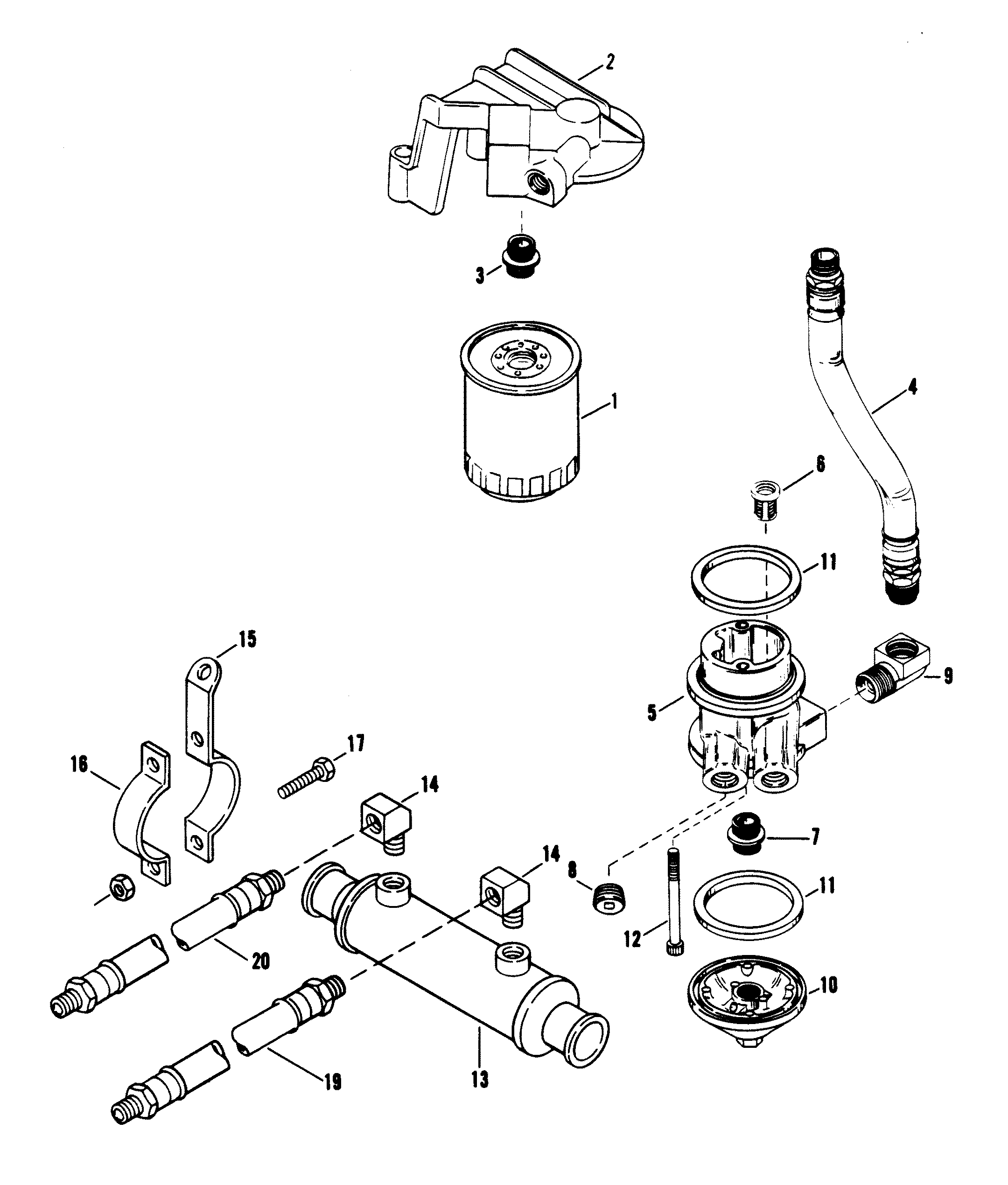

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-866340Q03         OIL FILTER 1 14957
2 44393A2         BRACKET, OIL FILTER 1   This Part is No Longer Available
3 22-805632         ADAPTOR 1 32720
4 32-9235759         HOSE, OIL - ADAPTER TO BRACKET (34") 1

5 90783A22         ADAPTER ASSEMBLY, OIL FILTER 1

6 99889         VALVE, BY-PASS 1

7 22-805632         ADAPTER 1 32720
8 22-37372         PIPE PLUG 1

9 22-97368         ELBOW, OIL HOSE (90 ) 2

10 91830         COVER, ADAPTER 1

11 27-91892         GASKET, ADAPTER COVER 2
2
12 10-91966         SCREW, OIL FILTER ADAPTER (4") 1
No longer made, limited availability
12 10-91967         SCREW, OIL FILTER ADAPTER (3-1/4") 1   This Part is No Longer Available No longer made, limited availability
13 63831A3         OIL COOLER, ENGINE 1
WITHOUT POWER STEERING
14 22-63825         ELBOW, ENGINE OIL COOLER (90 ) 2
WITHOUT POWER STEERING
13 89690T         OIL COOLER, ENGINE 1
WITH POWER STEERING
14 22-63825         ELBOW, ENGINE OIL COOLER (90 ) 1
WITH POWER STEERING
14 22-48872         ELBOW, ENGINE OIL COOLER (45 ) 1
WITH POWER STEERING
15 63820T         BRACKET, OIL COOLER (LONG) 1 638201
16 56328A1         BRACKET, OIL COOLER (SHORT) 1

17 10-60300         SCREW, OIL COOLER BRACKT (3/4") 2

18 11-30506         NUT, OIL COOLER BRACKET SCREW 2

19 32-9235769         HOSE, OIL - OIL COOLER TO BRACKET (44") 1
W/O POWER STEERING
20 32-9235728         HOSE, OIL - OIL COOLER TO ADAPTER (13-1/2") 1
W/O POWER STEERING
19 32-9235769         HOSE, OIL - OIL COOLER TO BRACKET (44") 1
W/POWER STEERING
20 32-9235715         HOSE, OIL - OIL COOLER TO ADAPTER (8-1/2") 1
W/POWER STEERING
