454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Power Steering Components

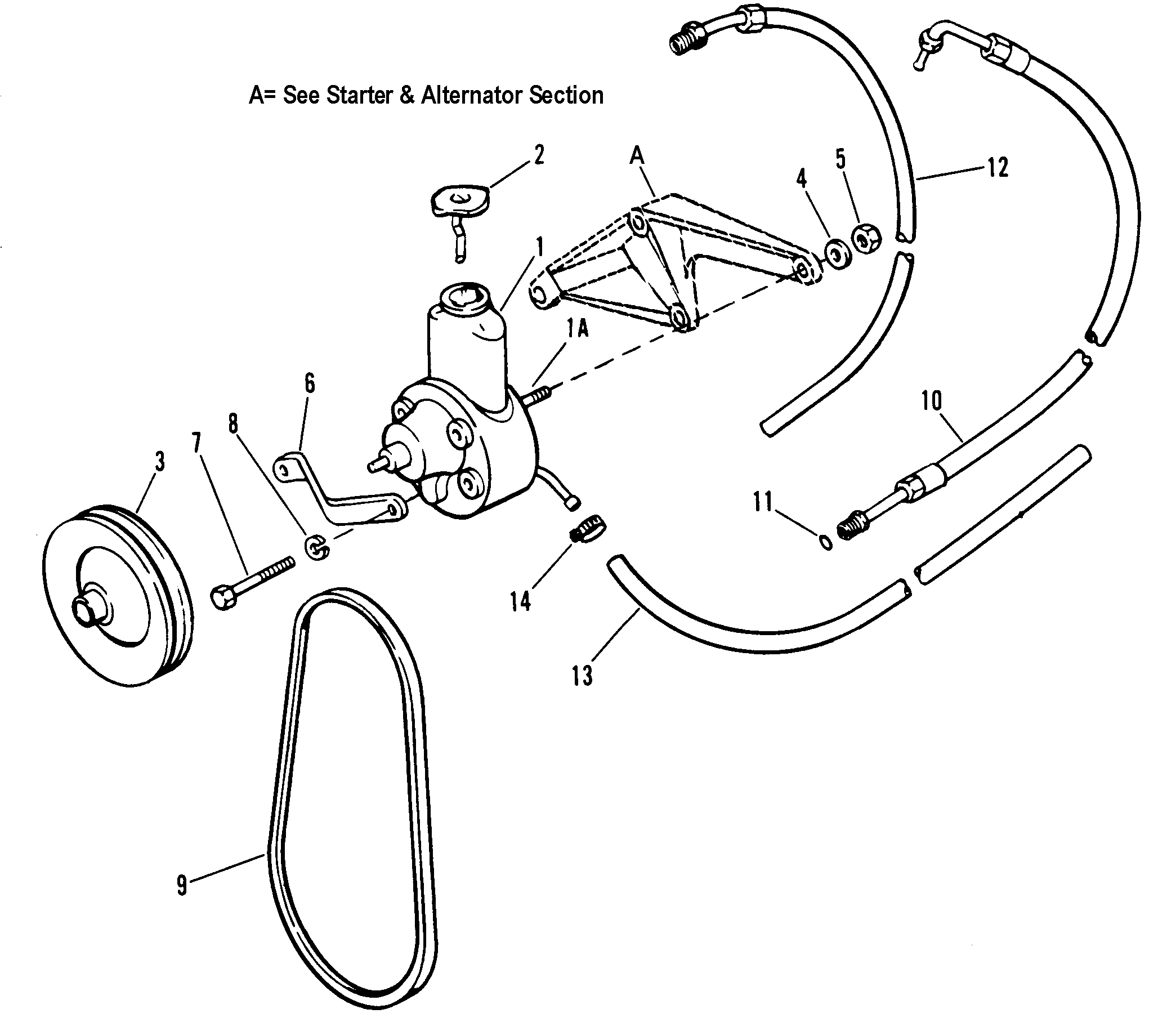

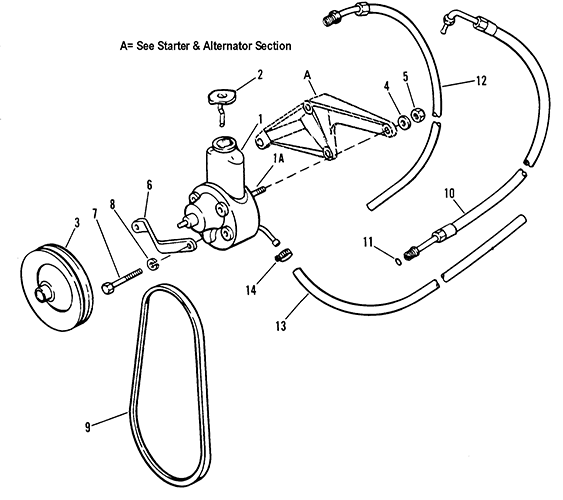

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY, POWER STEERING | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD, POWER STEERING PUMP | 1 | ||||||
| 2 | 36-95805 | CAP, POWER STEERING PUMP | 1 | ||||||
| 3 | 73873A1 | PULLEY, POWER STEERING PUMP | 1 | ||||||
| 4 | 23-72057 | SPACER, PUMP SCREW | 2 | ||||||
| 5 | 11-90517 | NUT, MOUNTING STUD | 2 | ||||||
| 6 | 98813F1 | BRACE, PUMP MOUNTING | 1 | 98813A1 | |||||
| 7 | 10-40001188 | SCREW, PUMP MOUNTING BRACE | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 9 | 57-96834Q | V-BELT, POWER STEERING PUMP (50") | AR | 57-96834T | |||||
| 9 | 57-13458Q | V-BELT, POWER STEERING PUMP (55") | AR | 57-13458T | |||||
| 10 | 32-90494 | HOSE, PRESSURE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | "O" RING, PRESSURE HOSE END | 1 | ||||||
| 12 | 32-9884339 | HOSE, RETURN (FITTINGS ON ONE END) | 1 | ||||||
| 13 | 32-8M0062341 | HOSE, PUMP TO OIL COOLER | 1 | 32-5251914 | |||||
| 14 | 54-815504206 | CLAMP, HOSE ATTACHING | 3 | 54-35830 |
