| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
817119A4 |
620-3186M |
676-9-19101 |
|
|

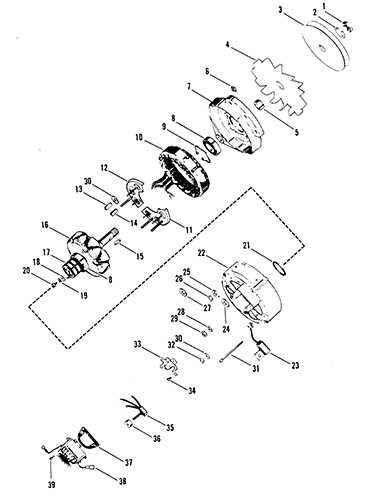

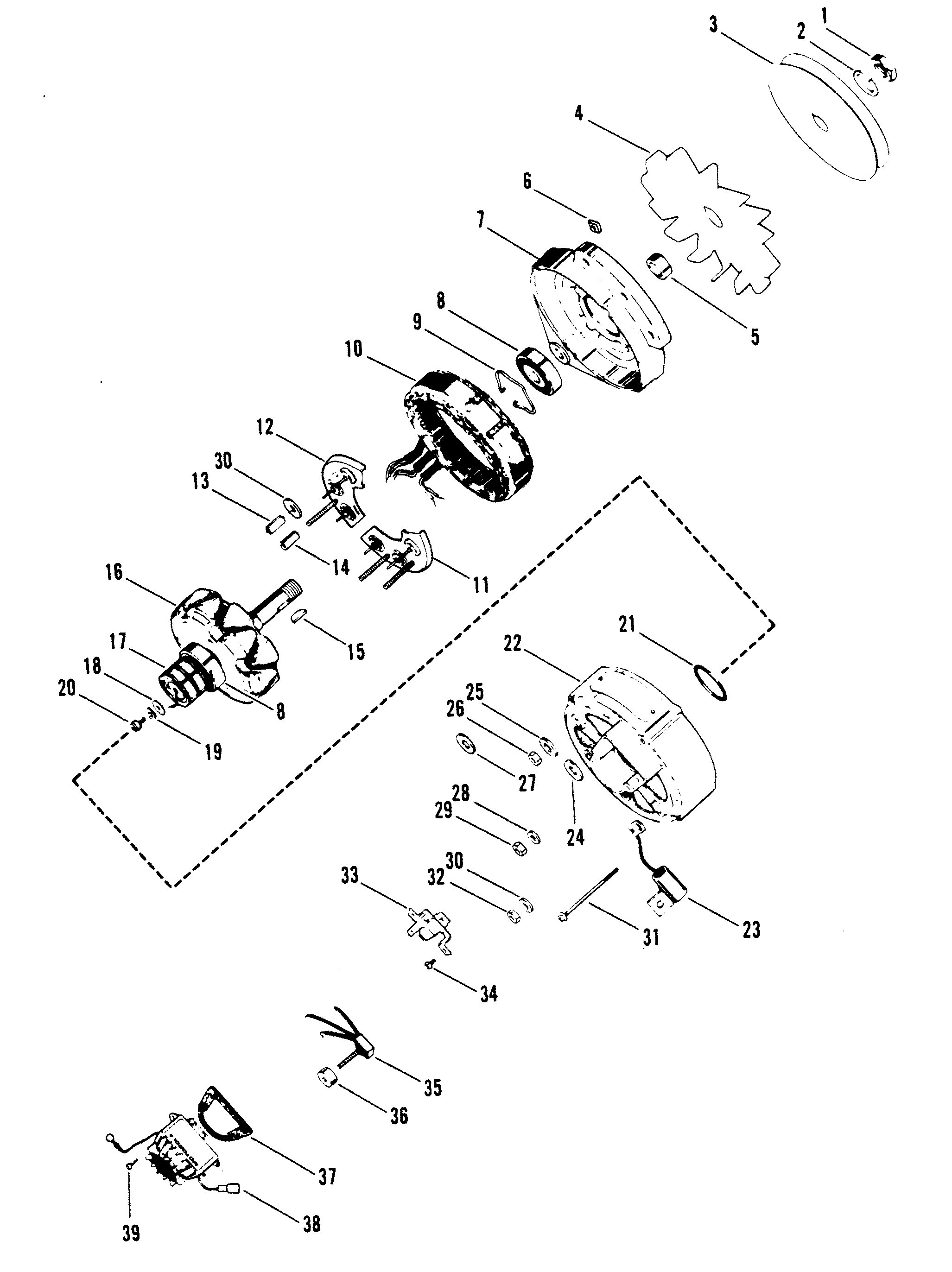

ALTERNATOR ASSEMBLY (55 AMP) |
1 |
92497A3 |
|
| 1 |
390-7027 |
|
|
|
|
NUT, FAN AND PULLEY TO ROTOR |
1 |
|
This Part is No Longer Available |
| 2 |
390-7033 |
|
|
|
|
LOCKWASHER, FAN AND PULLEY NUT |
1 |
|
This Part is No Longer Available |
| 3 |
390-8637 |
|
|
|
|
PULLEY, DRIVE END FRAME |
1 |
|
This Part is No Longer Available |
| 4 |
390-7004 |
|
|
|
|
FAN, DRIVE END FRAME |
1 |
|
|
| 5 |
813969 |
|
|
|
|
SPACER, FAN TO DRIVE END FRAME |
1 |
390-7012 |
This Part is No Longer Available |
| 6 |
390-7028 |
|
|
|
|
NUT, THRU BOLT ATTACHING |
4 |
|
This Part is No Longer Available |
| 7 |
390-7000 |
|
|
|
|
COVER ASSEMBLY, FRONT |
1 |
|
This Part is No Longer Available |
| 8 |
390-7005 |
|
|
|
|
BALL BEARING, DRIVE END |
2 |
|
This Part is No Longer Available |
| 9 |
390-7006 |
|
|
|
|
RETAINER, DRIVE END BALL BEARING |
1 |
|
This Part is No Longer Available |
| 10 |
390-8636 |
|
|
|
|
STATOR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 11 |
390-7009 |
|
|
|
|
DIODE RECTIFIER, NEGATIVE |
1 |
|
This Part is No Longer Available |
| 12 |
390-7010 |
|
|
|
|
HEAT SINK, POSITIVE |
1 |
|
This Part is No Longer Available |
| 13 |
390-7020 |
|
|
|
|
SLEEVE, INSULATOR |
1 |
|
This Part is No Longer Available |
| 14 |
390-7018 |
|
|
|
|
SLEEVE, INSULATOR |
1 |
|
This Part is No Longer Available |
| 15 |
390-7034 |
|
|
|
|
KEY, ROTOR |
1 |
|
This Part is No Longer Available |
| 16 |
390-8635 |
|
|
|
|
ROTOR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 17 |
390-7014 |
|
|
|
|
SLIP RING |
1 |
|
This Part is No Longer Available |
| 18 |
390-7206 |
|
|
|
|
WASHER, ROTOR SCREW |
1 |
|
This Part is No Longer Available |
| 19 |
390-7207 |
|
|
|
|
LOCKWASHER, ROTOR SCREW |
1 |
|
This Part is No Longer Available |
| 20 |
390-7029 |
|
|
|
|
SCREW, ROTOR SHAFT (5/8") |
1 |
|
This Part is No Longer Available |
| 21 |
390-7007 |
|
|
|
|
RETAINER, ROTOR SHAFT BEARING |
1 |
|
This Part is No Longer Available |
| 22 |
390-7003 |
|
|
|
|
COVER ASSEMBLY, REAR |
1 |
|
This Part is No Longer Available |
| 23 |
813972 |
|
|
|
|
CONDENSOR |
1 |
390-7035 |
This Part is No Longer Available |
| 24 |
390-7023 |
|
|
|
|
WASHER, REGULATOR TERMINAL STUD |
1 |
|
This Part is No Longer Available |
| 25 |
390-7024 |
|
|
|
|
WASHER, CONDENSOR TERMINAL STUD |
1 |
|
This Part is No Longer Available |
| 26 |
390-7025 |
|
|
|
|
NUT, TERMINAL STUD |
1 |
|
This Part is No Longer Available |
| 27 |
390-7208 |
|
|
|
|
WASHER, TERMINAL STUD |
1 |
|
This Part is No Longer Available |
| 28 |
390-7032 |
|
|
|
|
LOCKWASHER, TERMINAL STUD |
2 |
|
This Part is No Longer Available |
| 29 |
390-7026 |
|
|
|
|
NUT, TERMINAL ATTACHING |
1 |
|
This Part is No Longer Available |
| 30 |
390-7022 |
|
|
|
|
WASHER, CONDENSOR TERMINAL STUD |
1 |
|
This Part is No Longer Available |
| 31 |
390-8638 |
|
|
|
|
THRU BOLT |
4 |
|
This Part is No Longer Available |
| 32 |
390-7021 |
|
|
|
|
NUT, CONDENSOR TERMINAL ATTACHING |
1 |
|
This Part is No Longer Available |
| 33 |
390-7011 |
|
|
|
|
BRUSH HOLDER ASSEMBLY |
1 |
|
No longer made, limited availability |
| 34 |
390-7030 |
|
|
|
|
SCREW, BRUSH HOLDER (1/2") |
2 |
|
This Part is No Longer Available |
| 35 |
390-7008 |
|
|
|
|
DIODE TRIO |
1 |
|
This Part is No Longer Available |
| 36 |
390-7019 |
|
|
|
|
SPACER, DIODE TRIO |
1 |
|
This Part is No Longer Available |
| 37 |
390-7013 |
|
|
|
|
GASKET, VOLTAGE REGULATOR |
1 |
|
This Part is No Longer Available |
| 38 |
808534T |
|
|
700-72250 |
|
VOLTAGE REGULATOR |
1 |
390-7036 |
|
| 39 |
390-7015 |
|
|
|
|
SCREW, VOLTAGE REGULATOR ATTACHING |
4 |
|
This Part is No Longer Available |
