454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Intake Manifold And Front Cover

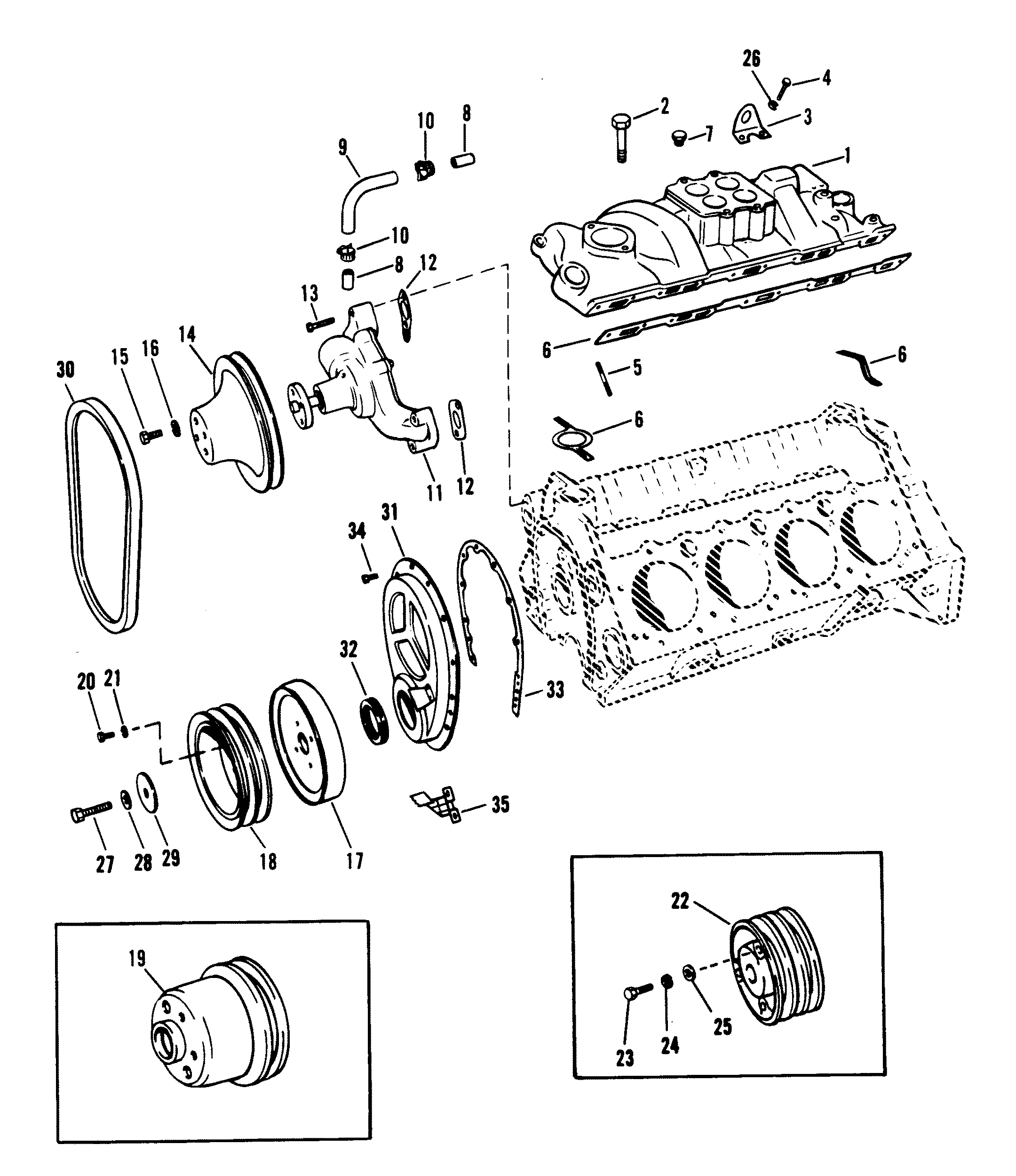

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 811575T         INTAKE MANIFOLD 1 59974
2 10-37510         BOLT, INTAKE MANIFOLD 16
No longer made, limited availability
3 54-64628         EYE, LIFTING 1

4 10-34354         SCREW, LIFTING EYE 2

5 NSS         STUD, GUARD TO INTAKE MANIFOLD (GM #3959544) 4

6 8M0050224         GASKET SET, INTAKE MANIFOLD 1 27-65184 2
7 22-75983         PIPE PLUG, WATER PUMP/INTAKE MANIFOLD 2

8 22-806242         CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD 2 22-66201
9 32-99520         HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD 1 32-66206
10 54-815504412         CLAMP, BY-PASS HOSE 2 54-43510
11 8504541         WATER PUMP ASSEMBLY 1 17670
12 27-49110         GASKET, WATER PUMP MOUNTING 2
2
13 10-32132         SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4") 4

14 42799         PULLEY, WATER PUMP (2 GROOVE) AR   This Part is No Longer Available
14 15120T         PULLEY, WATER PUMP (3 GROOVE) AR   This Part is No Longer Available
15 10-47277         SCREW, PULLEY TO WATER PUMP (3/4") 4

16 13-39107     700-21496   LOCKWASHER, WATER PUMP PULLEY SCREW 4

17 816729         BALANCER, HARMONIC - CRANKSHAFT 1 14757 This Part is No Longer Available
18 52181         PULLEY, CRANKSHAFT REF 1
#18 IS STAMPED
19 845524A1         PULLEY, POWER STEERING 1 77244A1 #18 IS STAMPED
20 10-98556         BOLT, PULLEY (1-3/4") 3
#18 IS STAMPED
21 13-35048         LOCKWASHER, PULLEY BOLT 3
#18 IS STAMPED
22 90081T         PULLEY, CRANKSHAFT REF 1
#22 IS CAST
23 10-53734         BOLT, PULLEY (3") 3
#22 IS CAST
24 13-35048         LOCKWASHER, PULLEY BOLT 3
#22 IS CAST
25         WASHER, PULLEY BOLT 3
#22 IS CAST
26 13-35048         LOCKWASHER, LIFTING EYE SCREW 2

27 10-14758         BOLT, PULLEY AND HARMONIC BALANCER 1
No longer made, limited availability
28 13-14759         LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT 1   This Part is No Longer Available
29 12-49103         WASHER, PULLEY AND BALANCER BOLT 1

30 57-78200Q1         BELT, ALTERNATOR DRIVE (47") 1 57-78200A1
31 66215         COVER ASSEMBLY, CRANKCASE FRONT 1   This Part is No Longer Available
32 26-8219471         CRANKCASE FRONT COVER 1 26-49154 2
33 27-54529   676-9-61601 700-30440   GASKET, CRANKCASE FRONT END COVER 1
2
34 10-35366         SCREW, CRANKCASE AND FRONT END COVER 10

35 59966         POINTER, TIMING 1

- 27-65184A88         ENGINE GASKET SET - Overhaul 1
