454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Cylinder Head And Rocker Cover

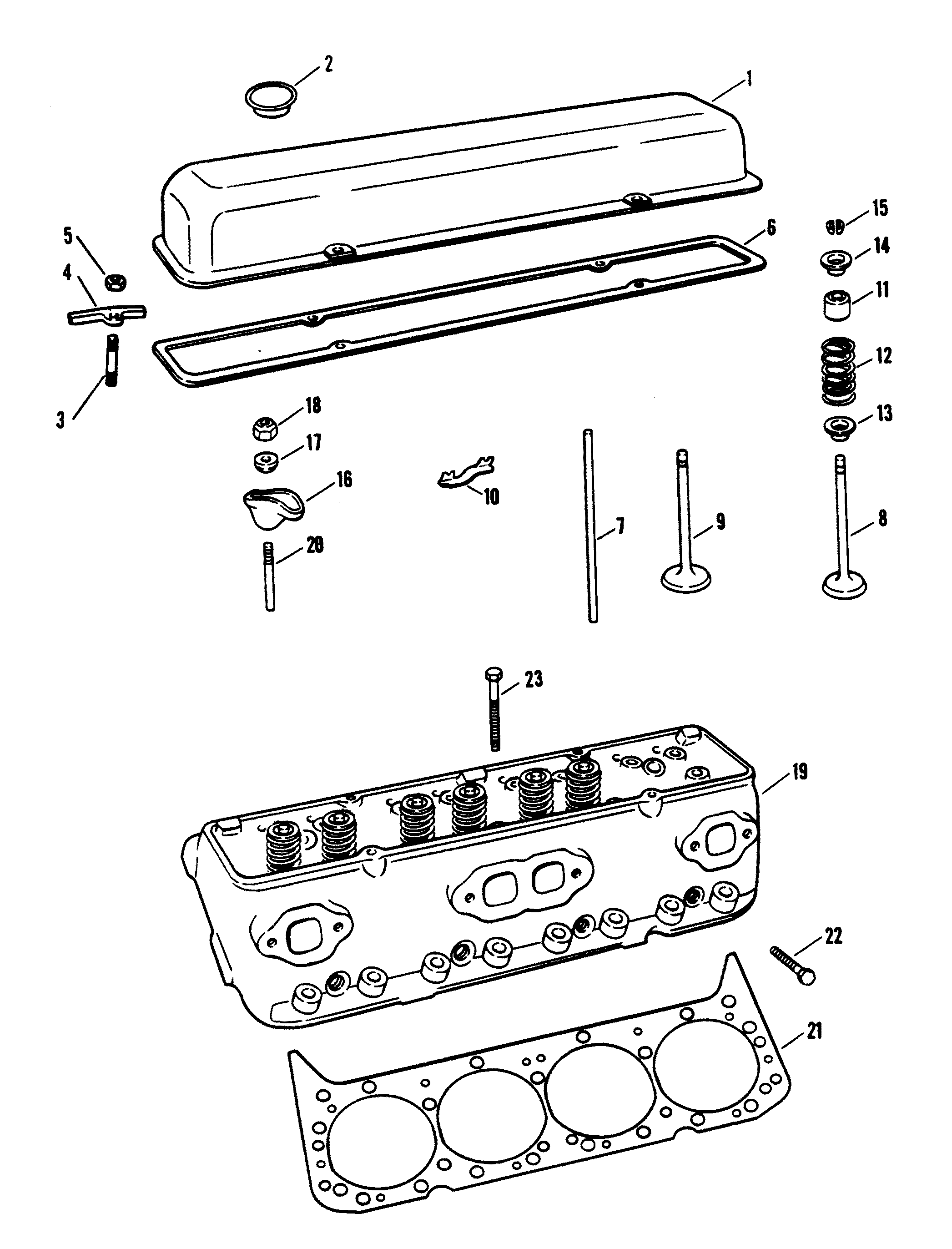

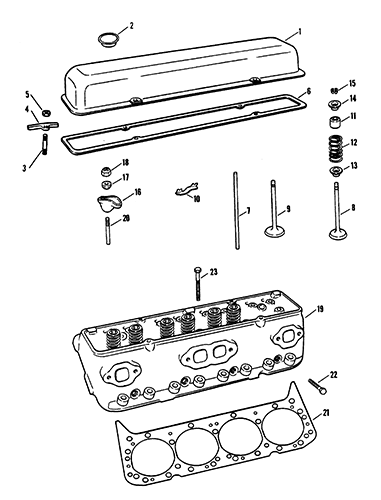

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17671         COVER, ROCKER 2   This Part is No Longer Available
2 36-807152         CAP, OIL FILLER 2 36-75336 This Part is No Longer Available
3 16-11995         STUD, ROCKER COVER 14   This Part is No Longer Available
4 14763         REINFORCEMENT, ROCKER COVER STUD 8
No longer made, limited availability
4 14764         REINFORCEMENT, ROCKER COVER STUD 6
No longer made, limited availability
5 11-11996         NUT, ROCKER COVER STUD 14

6 27-49121         GASKET, ROCKER COVER 2
2
7 75589         ROD, VALVE PUSH (INLET) 8

7 75590         ROD, VALVE PUSH (EXHAUST) 8

8 67861         VALVE, EXHAUST (STANDARD) 8   This Part is No Longer Available
8 NSS         NOT SOLD SEPARATE, VALVE, EXHAUST (.015 O.S.) (GM #14045189) AR
This part is not sold separate
9 49134         VALVE, INLET (STANDARD) 8

9 49135         VALVE, INLET (.015 O.S.) AR   This Part is No Longer Available
10 75979         GUIDE, PUSH ROD 8
No longer made, limited availability
11 26-75988         SEAL, VALVE 16
2
12 24-14754T         SPRING, VALVE (INLET AND EXHAUST) 16 24-14754
13 14755         ROTATOR, VALVE SPRING 16   This Part is No Longer Available
14 14753         CAP, VALVE 16   This Part is No Longer Available
15 28-54530         KEY, VALVE STEM 32

16 19241         ARM, ROCKER VALVE 16   This Part is No Longer Available
17 58041         BALL UNIT, ROCKER VALVE ARM 16

18 11-49119         NUT, ROCKER VALVE ARM STUD 16
No longer made, limited availability
19 938-883491R1         CYLINDER ASSEMBLY 2 938-9553 This Part is No Longer Available
20 16-49133         STUD, ROCKER VALVE ARM AR   This Part is No Longer Available
21 8M0049045         GASKET, CYLINDER HEAD 2 27-13687 2
22 10-8M0000463         BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2") 8 10-49106
23 10-8M0000482         BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4-1/8") 24 10-49105
- 27-65184A88         ENGINE GASKET SET 1
