454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Exhaust Manifold And Exhaust Elbow

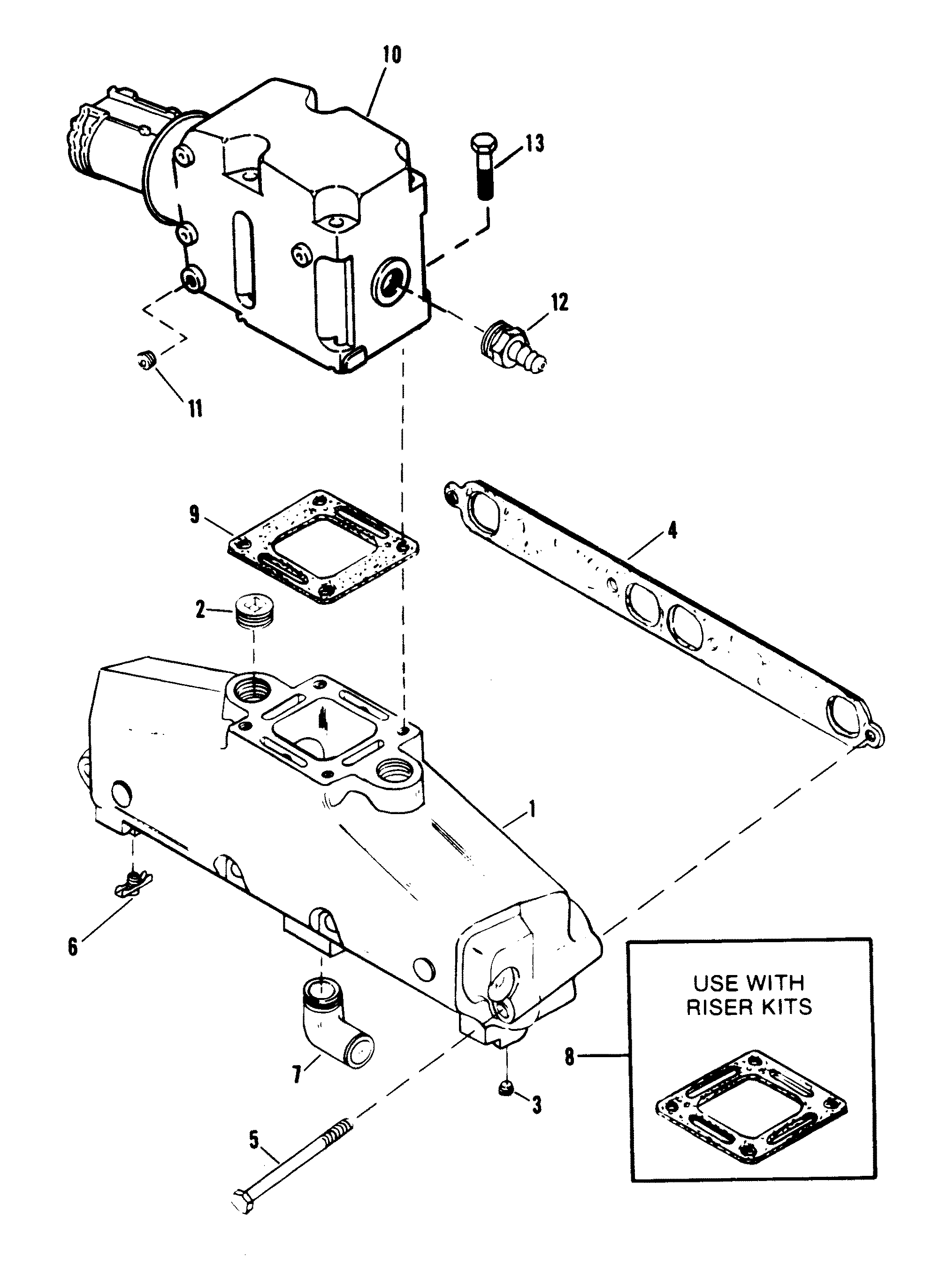

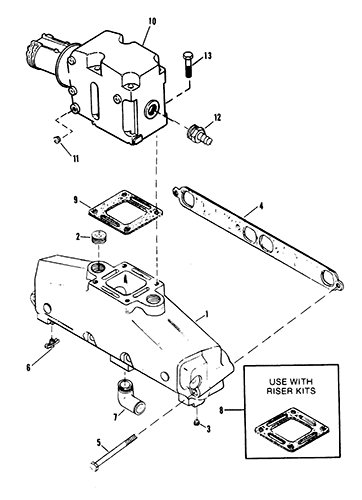

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807078T10



EXHAUST MANIFOLD ASSEMBLY 2 89011A8
2 22-41622
676-9-41205 700-21892
PLUG, EXHAUST MANIFOLD AR 22-33198A1
3 22-73379



PLUG, PIPE - EXHAUST MANIFOLD 4

4 27-46820
676-9-61400 700-33760
GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD 2
2
5 10-37612



SCREW, EXHAUST MANIFOLD (1-1/4") 8

5 10-48424



SCREW, EXHAUST MANIFOLD (1-5/8") 8

6 22-16951Q1



DRAIN COCK, EXHAUST MANIFOLD 2 22-16951A1
7 22-36305T



ELBOW, EXHAUST MANIFOLD 2 22-36305
8 27-863726



GASKET, ELBOW (USE WITH RISER KITS) 2 27-87105
9 27-863724



GASKET, EXHAUST ELBOW (STANDARD COOLING) 2 27-41813 2
10 807988A03



EXHAUST ELBOW ASSEMBLY (7 ) 2 44354A3
11 22-36382

700-21887
PLUG, PIPE - EXHAUST ELBOW 2

12 22-865159



FITTING, EXHAUST ELBOW (45 ) 1 22-92499
12 22-45084



FITTING, EXHAUST ELBOW (STRAIGHT) 1
No longer made, limited availability
13 10-43749



SCREW, MANIFOLD 6

13 10-44387



SCREW, MANIFOLD 2

- 27-65184A88



ENGINE GASKET SET 1
