454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Fuel Pump And Fuel Filter

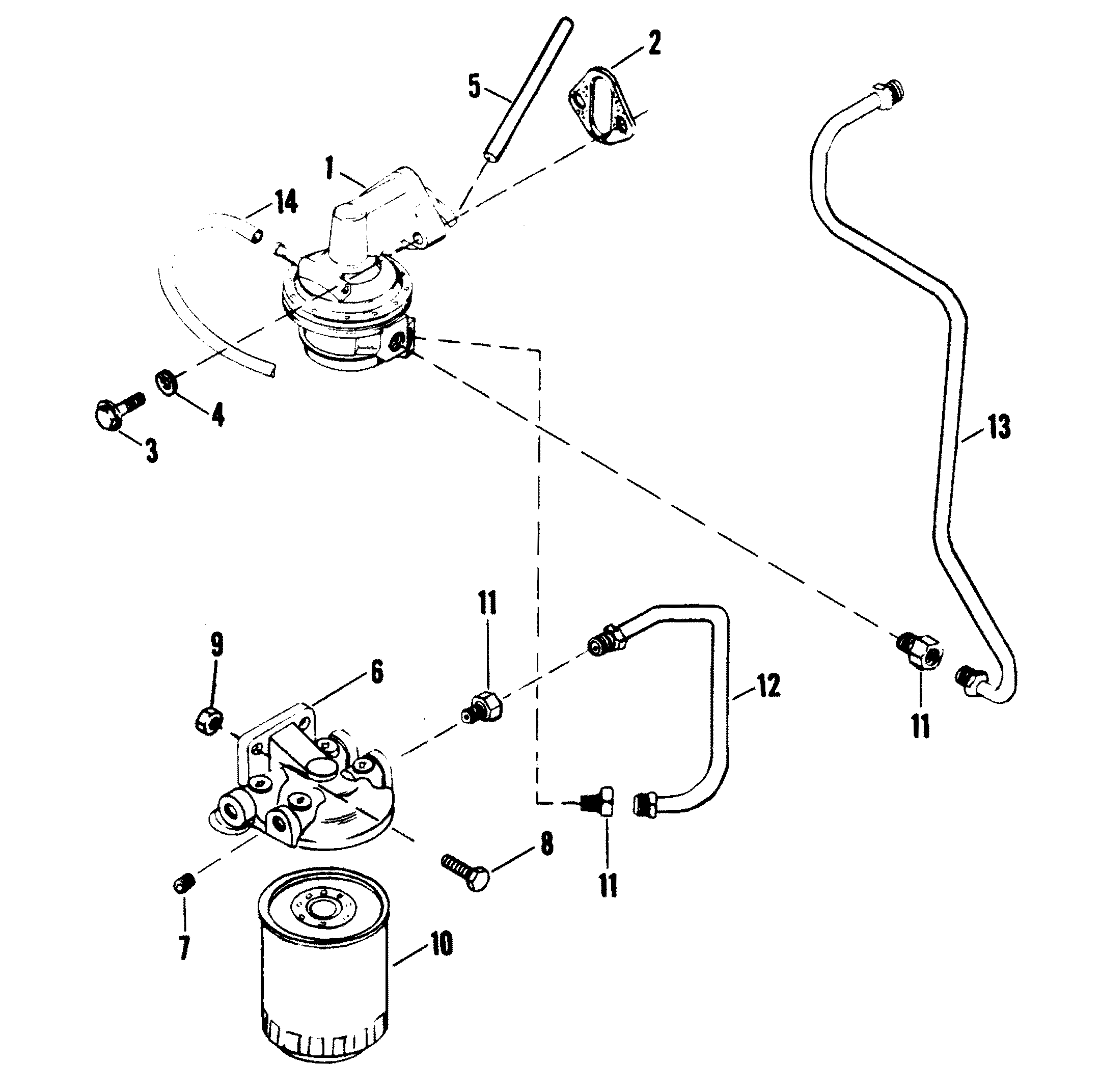

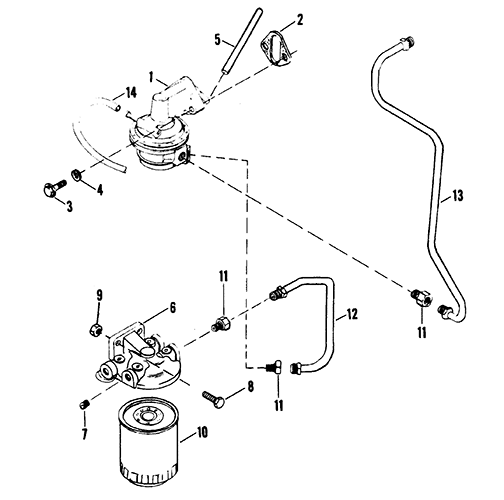

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862048A1 | FUEL PUMP (AIRTEX) | 1 | 97399A2 | |||||
| 1 | 862048A1 | FUEL PUMP (CARTER) | 1 | 812454A1 | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, FUEL PUMP TO CYLINDER BLOCK | 1 | 2 | |||
| 3 | 10-34354 | 700-22447 | SCREW, FUEL PUMP (1-1/2") | 2 | |||||
| 4 | 13-35048 | 700-21495 | LOCKWASHER, FUEL PUMP SCREW | 2 | |||||
| 5 | 35377 | ROD, PUSH - FUEL PUMP | 1 | ||||||
| 6 | 89876A3 | BASE, FUEL FILTER | 1 | ||||||
| 7 | 22-36382 | 700-21887 | PLUG, PIPE - FUEL FILTER | 3 | |||||
| 8 | 10-26066 | SCREW, FUEL FILTER TO MOUNTING BRACKET (1-1/4") | 2 | No longer made, limited availability | |||||
| 9 | 11-82670911 | NUT, FUEL FILTER SCREW | 2 | 11-35814 | |||||
| 10 | 35-802893Q01 | FUEL FILTER | 1 | 35-604941 | |||||
| 11 | 22-33821 | ELBOW, FUEL LINE TO FUEL PUMP AND FUEL FILTER | 3 | ||||||
| 12 | 32-96082 | FUEL LINE, FUEL FILTER TO FUEL PUMP | 1 | 32-96082A1 | This Part is No Longer Available (Use with Airtex Fuel Pump) | ||||
| 12 | 32-19037T | FUEL LINE, FILTER TO PUMP | 1 | (Use with Carter Fuel Pump) | |||||
| 13 | 32-96080T1 | FUEL LINE, FUEL PUMP TO CARBURETOR | 1 | 32-96080 | |||||
| 14 | 32-7381567 | HOSE, PLASTIC - FUEL PUMP TO CARBURETOR | 1 | 32-7381563 |
