454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Engine Mounting (Stamped Bracket)

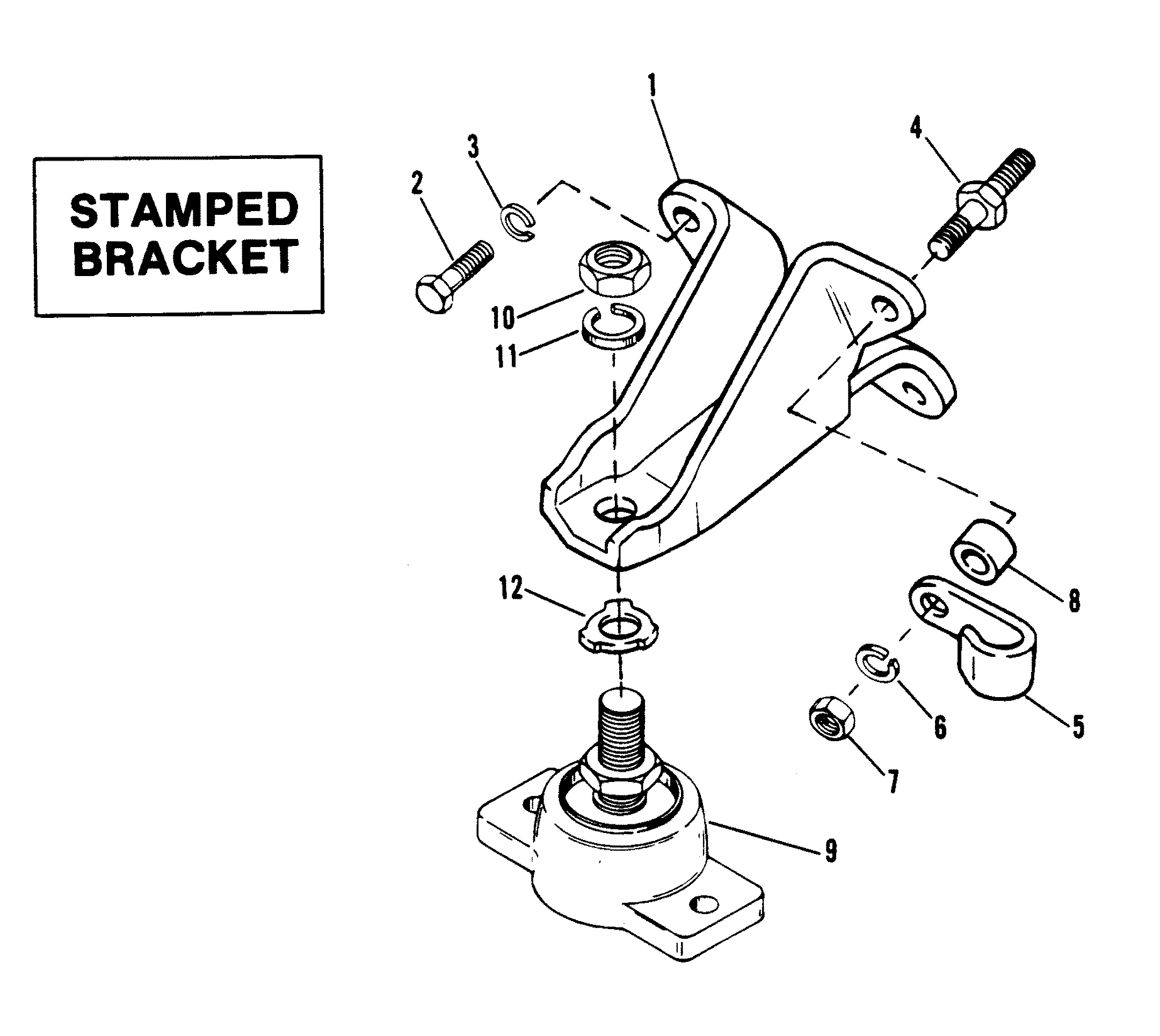

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET, MOUNTING - ENGINE (FRONT) 2 44364A1
2 10-37612



SCREW, MOUNTING BRACKET TO ENGINE 5

3 13-35048



LOCKWASHER, MOUNTING BRACKET SCREW 5

3 12-46132



WASHER, MOUNTING BRACKET SCREW 1

4 16-64066



STUD, MOUNTING BRACKET TO ENGINE 1
STARBOARD
5 54-78945



CLIP, WIRING HARNESS 1
STARBOARD
6 13-35048



LOCKWASHER, MOUNTING BRACKET STUD 2
STARBOARD
7 11-32219



NUT, MOUNTING BRACKET STUD 1
STARBOARD
8 23-57369



SPACER, MOUNTING STUD 1

9 66284A2



BASE, ENGINE MOUNT 2
10 11-20739



NUT, JAM - ENGINE MOUNT BASE 6
11 13-68102



LOCKWASHER, MOUNTING BRACKET 2
12 14-12657



TAB WASHER 2
