454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Audio Warning System

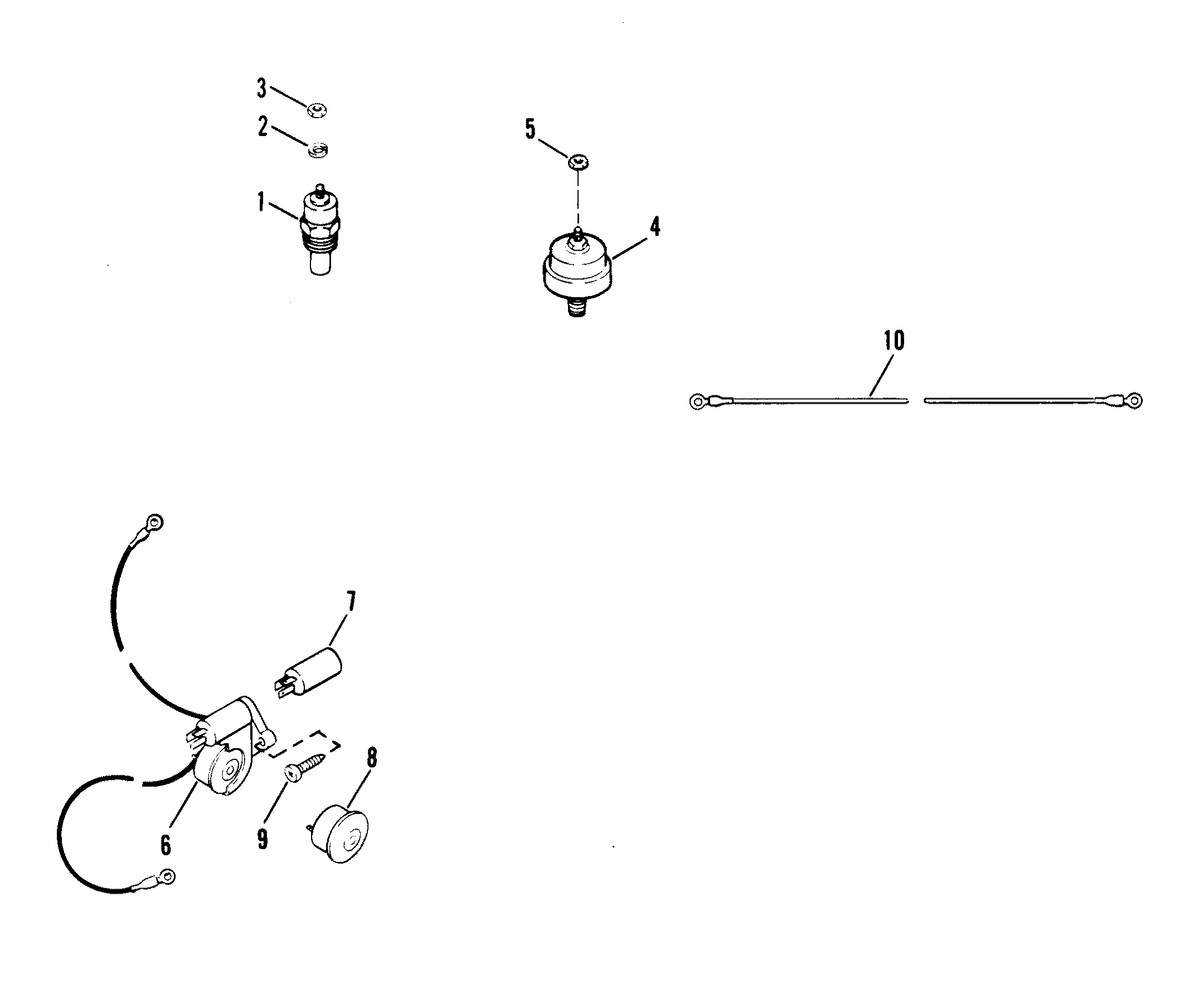

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH, WATER TEMPERATURE | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, TEMPERATURE SWITCH (#10) | 1 | ||||||
| 3 | 11-45076 | NUT, TEMPERATURE SWITCH (10-32) | 1 | ||||||
| 4 | 87-805605A1 | SWITCH PRESSURE | 1 | 38559 | |||||
| 5 | 11-45076 | NUT, PRESSURE SWITCH TERMINAL (10-32) | 1 | ||||||
| 6 | 816492A14 | BUZZER HOUSING ASSEMBLY | 1 | 86047A11 | Please note - this is the new style buzzer, not horn & timer | ||||
| 7 | 816492A14 | TIMER, TEMPERATURE BUZZER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 68878A6 | HORN | 1 | ||||||
| 9 | 10-69013 | SCREW, HORN ATTACHING | 2 | ||||||
| 10 | 84-86044A4 | WIRE ASSEMBLY, TAN/BLUE (36") | 1 | This Part is No Longer Available |
