800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Carburetor And Linkage (Page 1 0F 2)

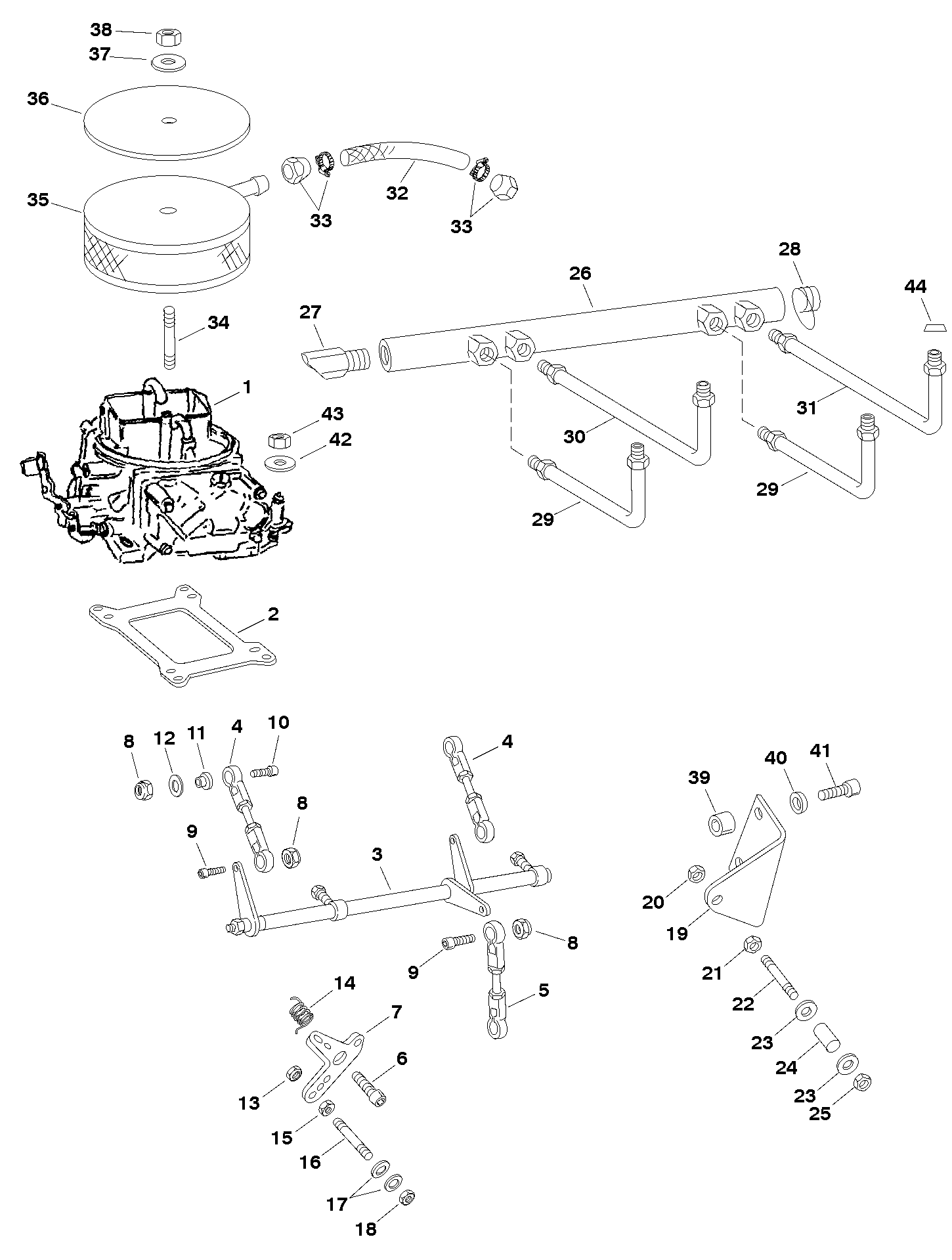

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3312-821030A17         CARBURETOR (BLUE) 1   This Part is No Longer Available (REAR)
1 3312-821030A18         CARBURETOR (BLUE) 1   (FRONT)
2 818892         SPACER-Carburetor Base 2   5
NS 1399-650878         JET-Main (.089) 2   1
NS 1399-650888         JET-Main (.104) 2   1
NS 24-48143         SPRING 2   1
NS 35-93568         FILTER 2   1
NS 32-42265         TUBE-Fuel Bowl Vent 1   1
NS 22-47945         PLUG-Pipe 1   1
NS 27-42270A1         GASKET SET-Bowl 2   1
NS 17-35973         PIN-Dowel 1   1
3 849094A1         LINKAGE ASSEMBLY-Throttle 1 818974A1 This Part is No Longer Available 3
4 849095A1         LINK KIT-Connecting 2 818975
5 849096A1         LINK KIT-Connecting 1 818978 This Part is No Longer Available
6 10-849117         SCREW-Shoulder 1 10-818980
7 849093         BELLCRANK-Lower 1 818979 This Part is No Longer Available 3
8 11-826709109         NUT (.250-28) 6 11-35045
9 10-821282         SCREW (.250-28 x .750) 4   This Part is No Longer Available
10 10-92702         SCREW (.250-28 x .875)-Link Arm 2
11 23-818894         BUSHING-Carburetor Lever 2
12 12-39143         WASHER 2
13 11-826709109         NUT (.250-28) 1 11-35045
14 24-821001         SPRING-Throttle Return 1
15 11-21825         NUT (.250-28) 1
16 16-728091         STUD (.250-28 x 1.620) 1 16-72809
17 12-29245         WASHER 2
18 11-8267098         NUT (.250-20) 1 11-56374
19 818995         BRACKET-Throttle Cable 1   This Part is No Longer Available
20 11-826709109         NUT (.250-28) 1 11-35045
21 11-21825         NUT (.250-28) 1
22 16-728091         STUD (.250-28 x 1.625) 1 16-72809
23 12-69056         WASHER 2 12-21631
24 23-31866         SPACER 1
25 11-8267098         NUT (.250-20) 1 11-56374
26 32-821120A1         RAIL ASSEMBLY-Fuel 1   This Part is No Longer Available
27 22-817395         FITTING (45 Degree) 1
28 22-73379         PLUG (.250-18) 1
29 32-821121         LINE-Fuel-Carb To Rail (Short) 2
30 32-821123         LINE-Fuel-Carb To Rail (Long-Front) 1 32-821122 This Part is No Longer Available
31 32-821123         LINE-Fuel-Carb To Rail (Long-Rear) 1   This Part is No Longer Available
- 27-822740A3         GASKET SET-Engine Overhaul 1   This Part is No Longer Available
