800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Cylinder Block And Camshaft

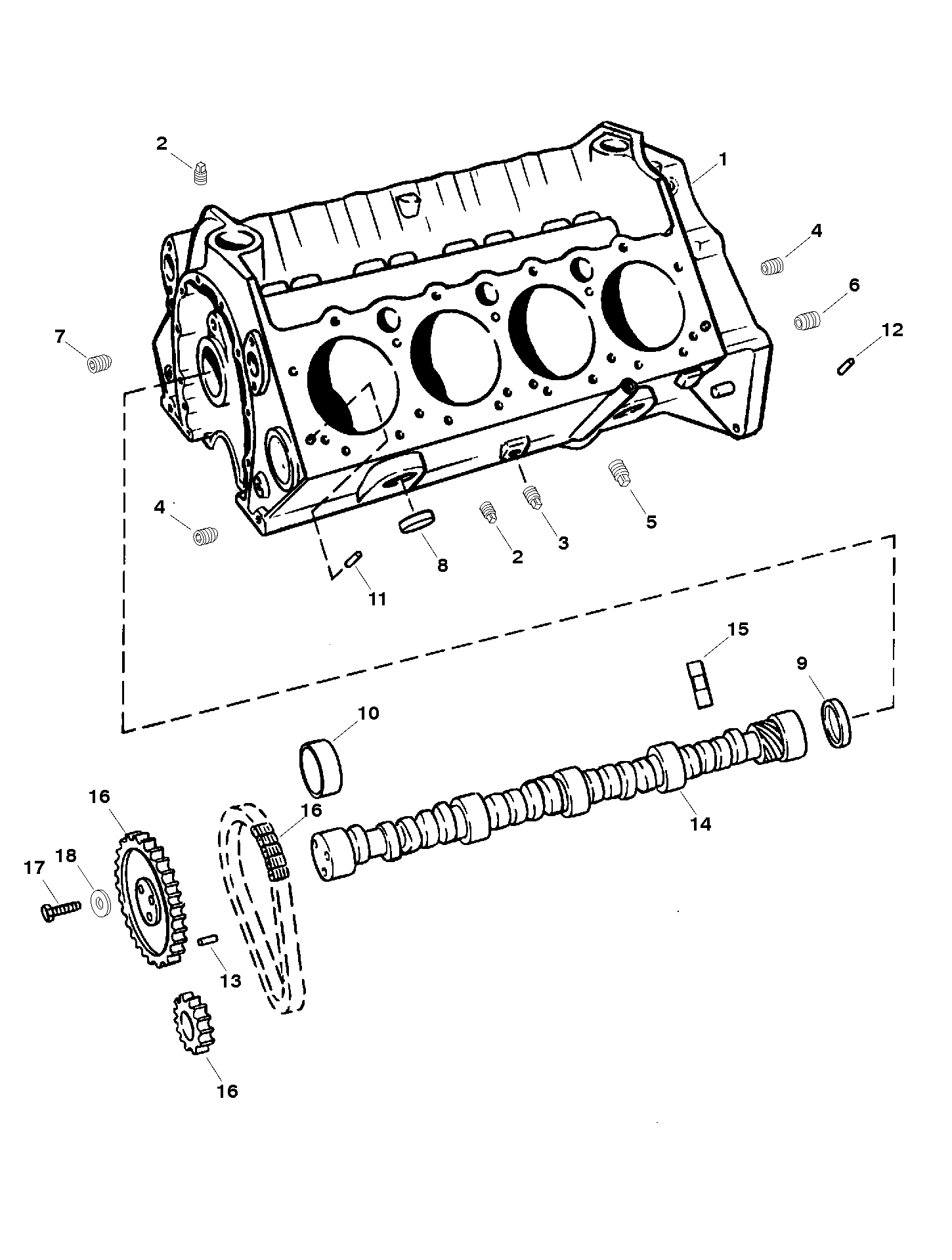

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 847718A10         PARTIAL ENGINE ASSEMBLY 1   This Part is No Longer Available (INCLUDES INTERNAL PARTS AND CYLINDER HEADS)
1 42112A24         BLOCK ASSEMBLY-Cylinder 1   This Part is No Longer Available 2
2 22-328022         PLUG (.125-27)-Hex Head-Brass 4 22-32802 3
3 22-36382     700-21887   PLUG (.250-18)-Hex Head-Brass 3
4 22-32561         PLUG (.250-18)-Socket Head-Steel 3
5 22-32803         PLUG (.375-18)-Hex Head-Brass 1
6 22-36373         PLUG (.375-18)-Socket Head-Steel 2
7 845606         PLUG-Special-Oil Galley 2 42534
8 22-69300         PLUG (1.750)-Expansion 8
9 19-94140         PLUG-Expansion 1
10 23-85684         BEARING UNIT (SET) 1
11 17-52190         PIN-Dowel 4
12 17-843379         PIN-Dowel-Bell Housing 2 17-72382
13 17-843378         PIN-Dowel-Timing Cover 2 17-35312
14 491-818870         CAMSHAFT 1   This Part is No Longer Available 2
15 93722T         LIFTER 16 93722 2
16 77531         GEAR & CHAIN KIT-Timing 1   2
17 10-34505         SCREW 3   2
18 12-848136         WASHER 3   2
19 847718A10         COMPONENT OF PARTIAL ENGINE     This Part is No Longer Available
