| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

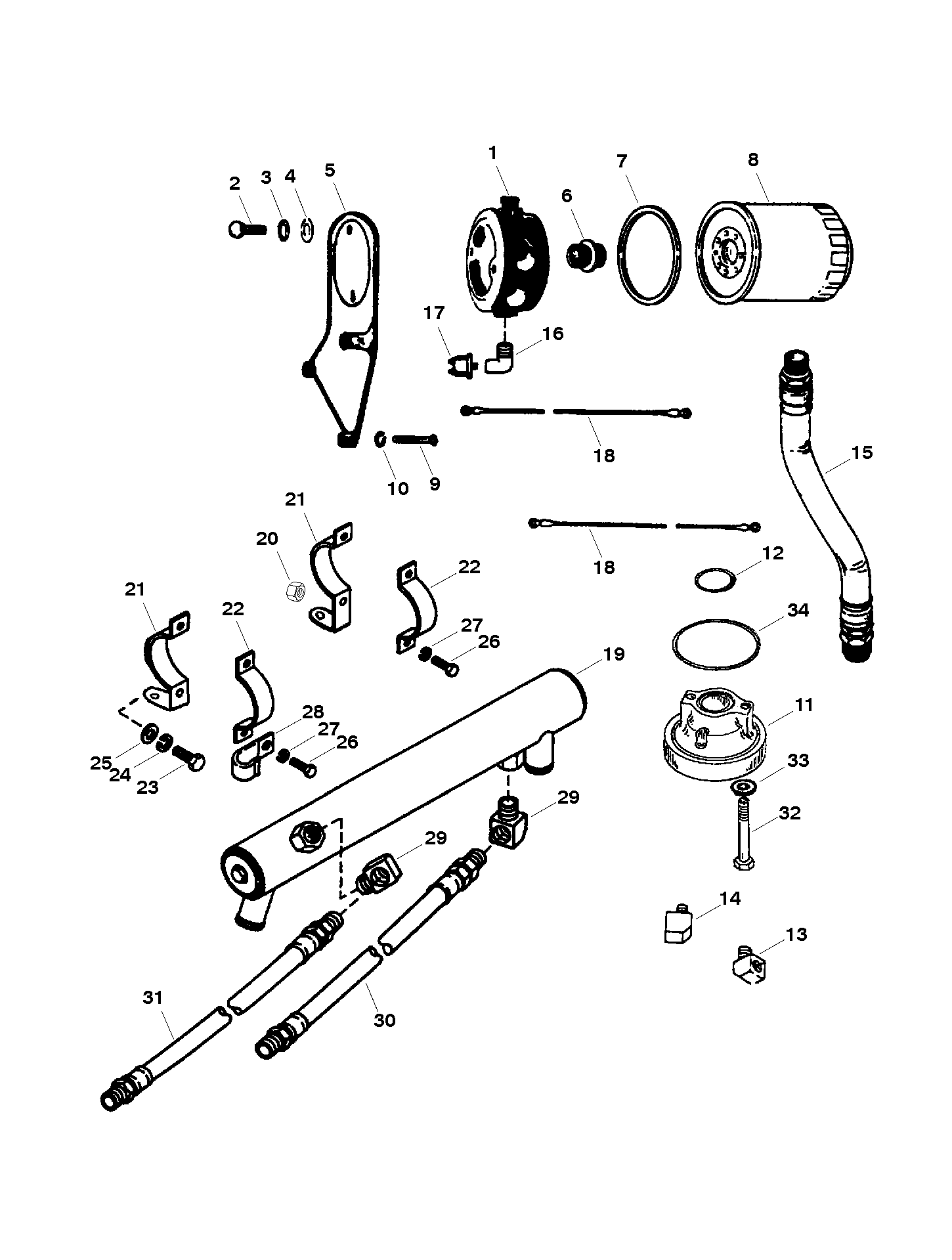

| 1 |
48504T2 |
|
|
|
|
ADAPTOR-Oil Filter |
1 |
48504A2 |
|
| 2 |
10-34353 |
|
|
|
|
SCREW (.375-16 x 1.00)-Adaptor to Bracket |
2 |
|
|
| 3 |
13-35048 |
|
|
|
|
LOCKWASHER (.375)-Adaptor Screw |
2 |
|
|
| 4 |
12-20553 |
|
|
|
|
WASHER-Oil Filter Adaptor Screw |
2 |
|
|
| 5 |
63880T |
|
|
|
|
BRACKET-Oil Filter |
1 |
|
|
| 6 |
22-805632 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 7 |
27-91892 |
|
|
|
|
GASKET-Adaptor Cover and Oil Filter |
1 |
|
|
| 8 |
35-16595Q |
|
|
|
|
FILTER-Oil |
1 |
35-16595 |
|
| 9 |
10-825427 |
|
|
|
|
SCREW (.437-14 x 1.250)-Bracket to Engine |
2 |
10-15942 |
3 |
| 9 |
10-35047 |
|
|
|
|
SCREW (.375-16 x 1.250)-Bracket to Engine |
1 |
|
|
| 10 |
12-45176 |
|
|
|
|
WASHER (.437)-Bracket Screw |
2 |
|
|
| 10 |
12-45175 |
|
|
|
|
WASHER (.375)-Bracket Screw |
1 |
|
|
| 11 |
8141531 |
|
|
|
|
ADAPTOR-Oil Filter |
1 |
|
|
| 12 |
25-26855 |
|
676-9-76541 |
|
|
O RING |
1 |
|
5 |
| 13 |
22-63825 |
|
|
|
|
ELBOW-Oil Hose |
1 |
|
|
| 14 |
22-48246 |
|
|
|
|
ELBOW-Oil Hose |
1 |
|
|
| 15 |
32-9235745 |
|
|
|
|
HOSE ASSEMBLY-Oil (22.00 In.) |
1 |
|
|
| 16 |
22-54035 |
|
|
|
|
ELBOW (90 Degree) |
1 |
|
This Part is No Longer Available |
| 17 |
87-94009 |
|
|
|
|
SWITCH-Choke Pressure |
1 |
|
|
| 18 |
84-79139A29 |
|
|
|
|
CABLE ASSEMBLY (RED) (21.00 In.) |
1 |
|
This Part is No Longer Available |
| 18 |
84-848879A1 |
|
|
|
|
CABLE ASSEMBLY (35.00 In.) |
1 |
84-79139A16 |
(SENDER TO CHOKE) 3 |
| 19 |
816482T |
|
|
|
|
COOLER-Oil |
1 |
816482 |
|
| NS |
817043 |
|
|
|
|
END CAP |
2 |
|
1 |
| NS |
27-817042 |
|
|
|
|
GASKET |
2 |
|
1 |
| NS |
8M0039163 |
|
|
|
|
O RING |
2 |
25-814878 |
1 |
| NS |
10-816767 |
|
|
|
|
SCREW |
2 |
|
1 |
| 20 |
11-30506 |
|
|
|
|
NUT (.250-28)-Oil Cooler Bracket |
4 |
|
|
| 21 |
12820 |
|
|
|
|
BRACKET-Oil Cooler |
2 |
|
|
| 22 |
56328A1 |
|
|
|
|
BRACKET-Oil Cooler |
2 |
|
|
| 23 |
10-34353 |
|
|
|
|
SCREW (.375-16 x 1.00) |
2 |
|
|
| 24 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
2 |
|
|
| 25 |
12-20553 |
|
|
|
|
WASHER |
2 |
|
|
| 26 |
10-60300 |
|
|
|
|
SCREW (.250-28 x .750) |
4 |
|
|
| 27 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
4 |
|
|
| 28 |
54-15095 |
|
|
|
|
J CLIP |
1 |
|
|
| 29 |
22-63825 |
|
|
|
|
ELBOW (90 Degree) |
2 |
|
|
| 30 |
32-9235749 |
|
|
|
|
HOSE ASSEMBLY-Oil (24.00 In.) |
1 |
|
|
| 31 |
32-9235751 |
|
|
|
|
HOSE ASSEMBLY-Oil (26.00 In.) |
1 |
|
|
| 32 |
10-67450 |
|
|
|
|
SCREW (.312-18 x 2.250) |
2 |
|
|
| 33 |
12-36533 |
|
|
|
|
WASHER |
2 |
|
|
| 34 |
25-32507 |
|
|
|
|
O RING-Filter Adaptor |
1 |
|
5 |
| - |
27-822740A3 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
|
This Part is No Longer Available |
