| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

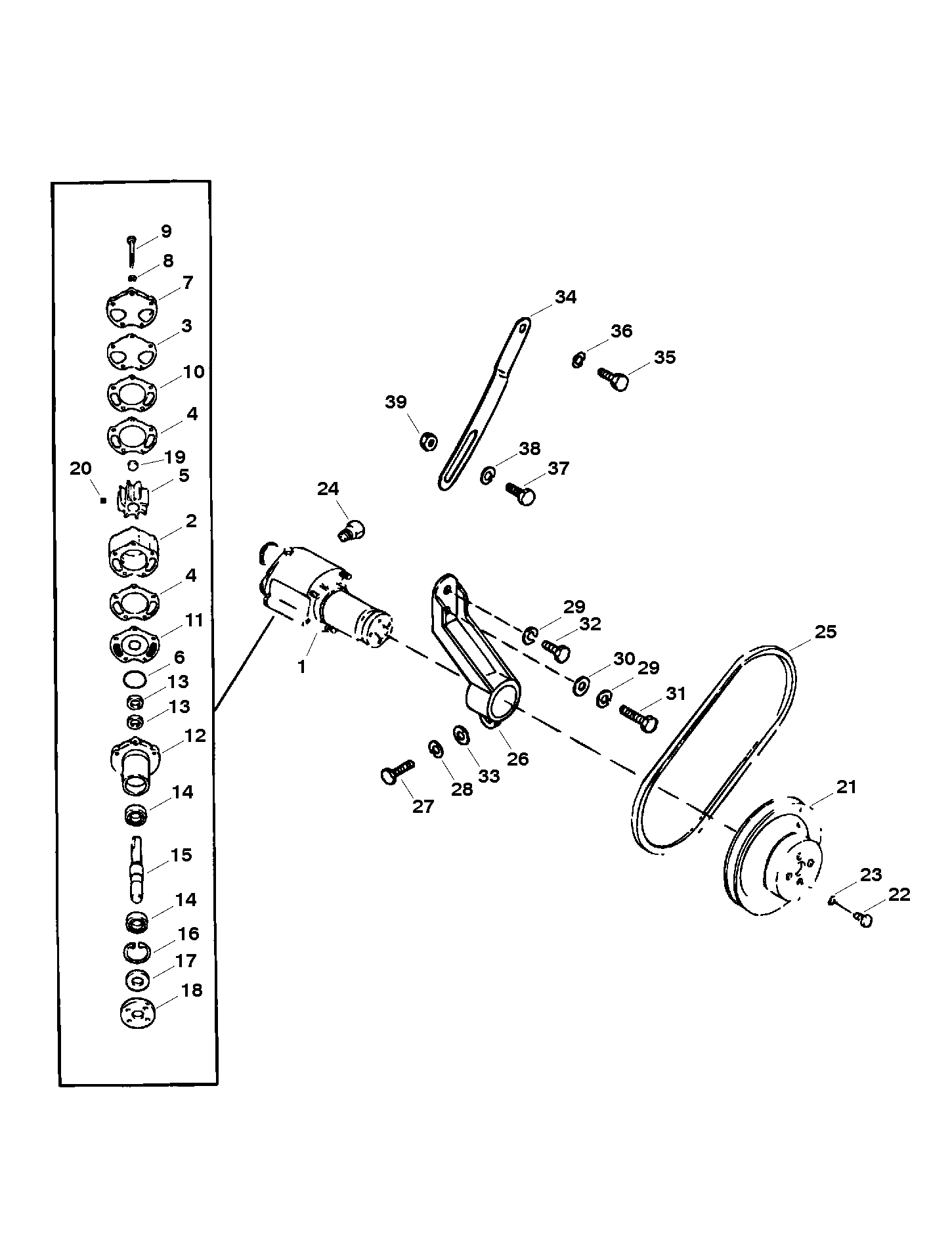

| 1 |
46-72774T38 |
|
|
|
|
PUMP ASSEMBLY-Sea Water |
1 |
46-72774A38 |
|
| 2 |
46-72774A89 |
|
|
|
|
BODY/IMPELLER KIT-Sea Water Pump |
1 |
|
|
| 3 |
27-8052151 |
|
|
|
|
GASKET-Cover to Outer Wear Plate |
1 |
|
|
| 4 |
27-94914 |
|
|
|
|
GASKET-Body to Wear Plate |
2 |
|
|
| 5 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER (USE WITHOUT KEY) |
1 |
47-593621 |
|
| 6 |
25-94288 |
|
|
|
|
RING-Quad-Pump Housing |
1 |
|
|
| 7 |
87631A4 |
|
|
|
|
COVER KIT-Sea Water Pump |
1 |
|
(ALSO INCLUDES #3) |
| 8 |
12-20084 |
|
|
|
|
WASHER |
5 |
|
|
| 9 |
10-73275 |
|
|
|
|
SCREW (.312-18 x 2.875) |
5 |
|
|
| 10 |
94916 |
|
|
|
|
WEAR PLATE-Outer |
1 |
|
|
| 11 |
94576 |
|
|
|
|
WEAR PLATE-Inner |
1 |
|
|
| 12 |
46-94913A1 |
|
|
|
|
HOUSING ASSEMBLY-Sea Water Pump |
1 |
|
|
| 13 |
26-90562 |
|
676-9-76107 |
700-85080 |
|
SEAL-Oil-Sea Water Pump Shaft |
2 |
|
|
| 14 |
30-72961 |
|
|
|
|
BEARING-Ball-Sea Water Pump Shaft |
2 |
|
|
| 15 |
59501A1 |
|
|
|
|
SHAFT-Sea Water Pump |
1 |
|
|
| 16 |
53-23720 |
|
|
|
|
RING-Retaining-Ball Bearing |
1 |
|
|
| 17 |
26-72785 |
|
|
|
|
SEAL-Oil-Sea Water Pump Shaft |
1 |
|
|
| 18 |
47530 |
|
|
|
|
HUB-Sea Water Pump Pulley |
1 |
|
|
| 19 |
19-59504 |
|
|
|
|
PLUG-Impeller |
1 |
|
|
| 20 |
8M0032837 |
|
|
|
|
KEY-Impeller Drive |
1 |
28-56662 |
|
| 21 |
737981 |
|
|
|
|
PULLEY-Sea Water Pump (BLUE) |
1 |
|
This Part is No Longer Available |
| 22 |
10-47277 |
|
|
|
|
SCREW (.312-24 x .750) |
4 |
|
|
| 23 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER (.312) |
4 |
|
|
| 24 |
22-328022 |
|
|
|
|
PLUG-Pipe (.125-27) |
1 |
22-32802 |
(FOR WATER PUMP BODY) 3 |
| 25 |
57-847889Q |
|
|
|
|
V BELT-Sea Water Pump |
1 |
57-847889 |
|
| 26 |
474891 |
|
|
|
|
BRACKET-Sea Water Pump |
1 |
|
|
| 27 |
10-34354 |
|
|
|
|
SCREW (.375-16 x 1.500) |
1 |
|
|
| 28 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
1 |
|
|
| 29 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
2 |
|
|
| 30 |
12-27025 |
|
|
|
|
WASHER |
1 |
|
|
| 31 |
10-47462 |
|
|
|
|
SCREW (.437-14 x 1.00) Bracket to Block-Bottom |
1 |
|
|
| 32 |
10-48948 |
|
|
|
|
SCREW (.437-14 x .875) Bracket to Block-Top |
1 |
|
This Part is No Longer Available |
| 33 |
12-29330 |
|
|
|
|
WASHER (For Slot) |
1 |
|
|
| 34 |
47544 |
|
|
|
|
BRACE-Water Pump |
1 |
|
|
| 35 |
10-47462 |
|
|
|
|
SCREW (.437-14 x 1.250) |
1 |
|
|
| 36 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
1 |
|
|
| 37 |
10-35786 |
|
|
|
|
SCREW (.375-24 x 1.00) |
1 |
|
|
| 38 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
1 |
|
|
| 39 |
11-46335 |
|
|
|
|
NUT (.375-24) |
1 |
|
|
