| Note: WHEN INSTALLING SEAL ON VALVE, REMOVE SPRING CLIP FROM TOP OF SEAL AND DISCARD. |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

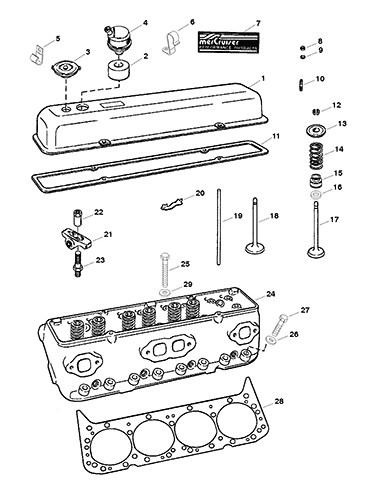

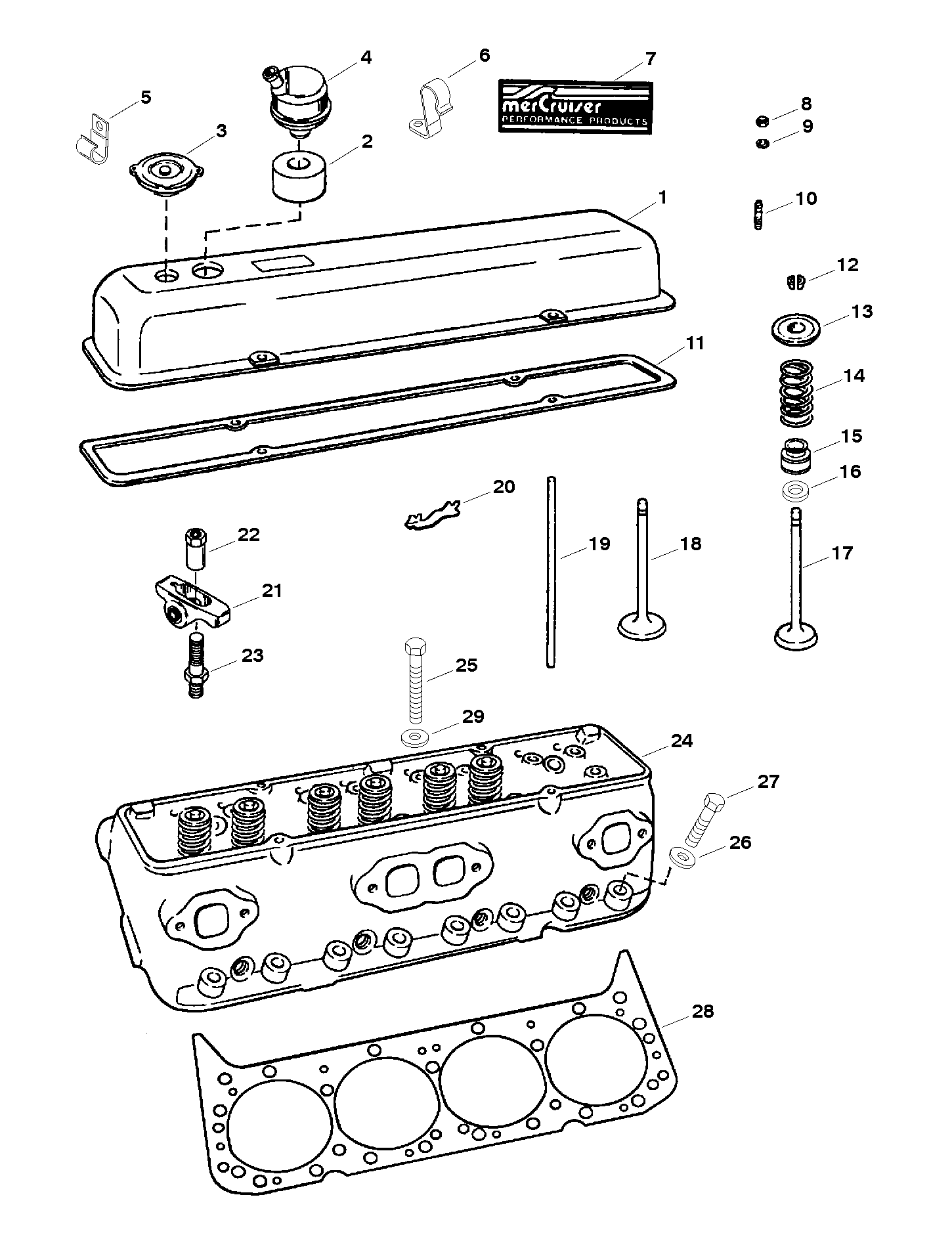

| 1 |
821948T4 |
|
|
|
|
COVER ASSEMBLY-Rocker (BLUE) |
2 |
821948A4 |
This Part is No Longer Available |
| 2 |
25-49767 |
|
|
|
|
GROMMET-Rocker Cover |
2 |
|
This Part is No Longer Available No longer made, limited availability |
| 3 |
36-811569 |
|
|
|
|
CAP-Oil Filler |
2 |
|
|
| 4 |
41598T |
|
|
|
|
BREATHER-Rocker Cover |
2 |
14902 |
This Part is No Longer Available |
| 5 |
54-642352 |
|
|
|
|
J CLIP |
1 |
|
|
| 6 |
54-42553 |
|
|
|
|
J CLIP |
2 |
|
(POWER STEERING MODELS) |
| 7 |
37-818991 |
|
|
|
|
DECAL |
2 |
|
|
| 8 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT (.250-28)-Rocker Cover Stud |
14 |
|
|
| 9 |
12-35462 |
|
|
|
|
WASHER-Rocker Cover Stud |
14 |
|
|
| 10 |
16-56766 |
|
|
|
|
STUD-Rocker Cover |
14 |
|
|
| 11 |
27-14765 |
|
676-9-61311 |
|
|
GASKET-Rocker Cover |
2 |
|
5 |
| 12 |
96028 |
|
|
|
|
VALVE LOCK |
32 |
|
|
| 13 |
843376 |
|
|
|
|
RETAINER |
16 |
98598 |
|
| 14 |
24-13455T |
|
|
|
|
SPRING-Valve |
16 |
24-13455 |
|
| 15 |
26-827645 |
|
|
|
|
SEAL-Valve |
16 |
15832 |
(SEE NOTE) 5 |
| 16 |
15-845669 |
|
|
|
|
SHIM (.015)-Valve Spring |
AR |
15-54531 |
4 |
| 16 |
15-77624 |
|
|
|
|
SHIM (.030)-Valve Spring |
AR |
|
4 |
| 17 |
843080 |
|
|
|
|
VALVE-Exhaust (STANDARD) |
8 |
13024 |
|
| 18 |
986781 |
|
|
|
|
VALVE-Inlet (2.190 Dia.) (STANDARD) |
8 |
|
|
| 19 |
848509 |
|
|
|
|
PUSHROD-Valve (8.650) |
8 |
|
(INLET) |
| 19 |
848508 |
|
|
|
|
PUSHROD-Valve (9.600) |
8 |
|
(EXHAUST) |
| 20 |
49132 |
|
|
|
|
GUIDE-Pushrod |
8 |
|
|
| 21 |
14729T1 |
|
|
|
|
ROCKER ARM-Valve |
16 |
147291 |
|
| 22 |
11-848610 |
|
|
|
|
NUT-Valve Rocker Arm |
16 |
|
|
| 23 |
95820 |
|
|
|
|
STUD-Valve Rocker Arm |
16 |
|
|
| 24 |
938-817129T |
|
|
|
|
HEAD-Cylinder |
2 |
938-817129 |
This Part is No Longer Available |
| 25 |
10-847875 |
|
|
|
|
SCREW (.437-14 x 3.960)-Cylinder Head |
4 |
|
|
| 25 |
10-847876 |
|
|
|
|
SCREW (.437-14 x 4.180)-Cylinder Head |
20 |
|
|
| 26 |
12-848542 |
|
|
|
|
WASHER (.437 x .750) |
8 |
|
This Part is No Longer Available |
| 27 |
10-848495 |
|
|
|
|
SCREW (.437-14 x 2.110)-Cylinder Head |
8 |
|
This Part is No Longer Available |
| 28 |
27-8M0051520 |
|
|
|
|
GASKET-Cylinder Head |
2 |
27-8227401 |
5 |
| 29 |
12-847877 |
|
|
|
|
WASHER (.437 x .812) |
24 |
|
This Part is No Longer Available |
| NS |
92-809826 |
|
|
|
|
SEALER-Red RTV |
AR |
92-916011 |
(REQUIRED FOR COMPLETE OVERHAUL) 3,4 |
| NS |
34227Q02 |
|
|
|
|
PERFECT SEAL |
AR |
92-342271 |
(REQUIRED FOR COMPLETE OVERHAUL) 4 |
| - |
27-822740A3 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
|
This Part is No Longer Available |
