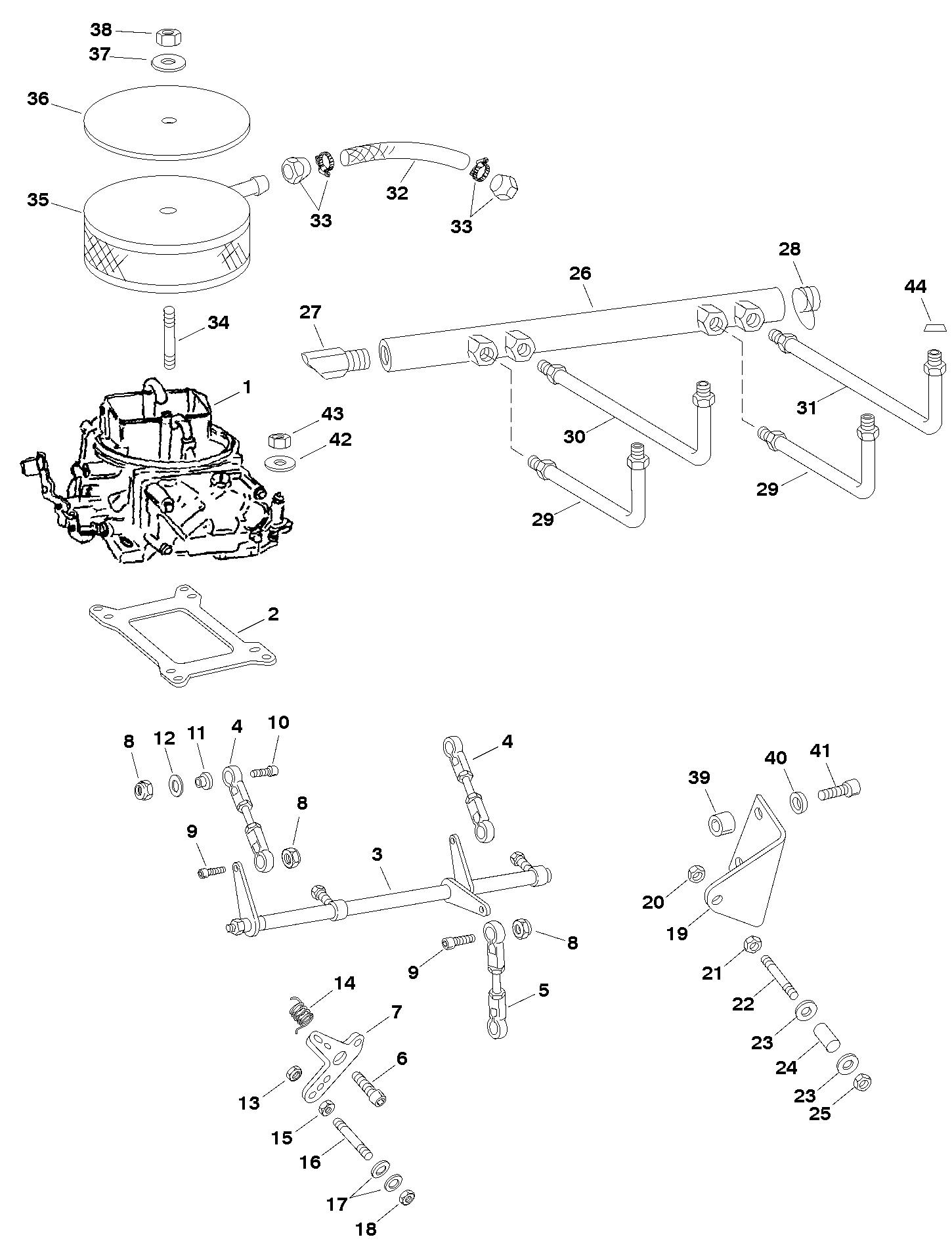

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
3312-821030A17 |
|
|
|
|
CARBURETOR (BLUE) |
1 |
|
This Part is No Longer Available (REAR) |
| 1 |
3312-821030A18 |
|
|
|
|
CARBURETOR (BLUE) |
1 |
|
(FRONT) |
| 32 |
32-821284A8 |
|
|
|
|
HOSE ASSEMBLY (16.00 In.)-Breather |
2 |
|
|
| 33 |
54-84763012 |
|
|
|
|
CLAMP-Hose |
4 |
|
This Part is No Longer Available |
| 34 |
16-30667 |
|
676-9-78143 |
|
|
STUD (.250-28 x 3.125)-Flame Arrestor |
2 |
|
|
| 35 |
818755T |
|
|
|
|
ARRESTOR-Flame |
1 |
818755 |
(FRONT) (SERIAL # 0F348742 AND BELOW) |
| 35 |
8187561 |
|
|
|
|
ARRESTOR-Flame |
1 |
818756 |
This Part is No Longer Available (REAR) (SERIAL # 0F348742 AND BELOW) |
| 35 |
8486231 |
|
|
|
|
ARRESTOR-Flame |
1 |
848623 |
(FRONT) (SERIAL # 0F615830 THRU 0K000911) 3 |
| 35 |
8485881 |
|
|
|
|
ARRESTOR-Flame |
1 |
848588 |
(REAR) (SERIAL # 0F615830 THRU 0K000911) 3 |
| 35 |
848918 |
|
|
|
|
ARRESTOR-Flame |
1 |
|
(FRONT) (SERIAL # 0L000186 AND UP) . |
| 35 |
848916 |
|
|
|
|
ARRESTOR-Flame |
1 |
|
This Part is No Longer Available (REAR) (SERIAL # 0L000186 AND UP) . |
| 36 |
37-848625 |
|
|
|
|
DECAL |
1 |
37-818989 |
(FRONT) (SERIAL # 0F348742 AND BELOW) |
| 36 |
37-818990 |
|
|
|
|
DECAL |
1 |
|
This Part is No Longer Available (REAR) (SERIAL # 0F348742 AND BELOW) |
| 36 |
37-848600 |
|
|
|
|
DECAL |
1 |
|
This Part is No Longer Available (FRONT) (SERIAL # 0F615830 THRU 0K000911) |
| 36 |
37-848625 |
|
|
|
|
DECAL |
1 |
|
(REAR) (SERIAL # 0F615830 THRU 0K000911) |
| 37 |
12-86400 |
|
|
|
|
WASHER |
2 |
|
|
| 38 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT (.250-28) |
2 |
|
|
| 39 |
821018 |
|
|
|
|
SPACER |
2 |
|
This Part is No Longer Available |
| 40 |
12-70132 |
|
|
|
|
WASHER |
2 |
|
|
| 41 |
10-821281 |
|
|
|
|
SCREW (.312-18 x 2.500) |
2 |
|
|
| 42 |
12-848136 |
|
|
|
|
WASHER |
8 |
|
|
| 43 |
11-82670911 |
|
|
|
|
NUT (.312-24) |
8 |
11-35814 |
|
| 44 |
27-848438 |
|
|
|
|
GASKET-Flare (Copper) |
4 |
|
|
