800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)

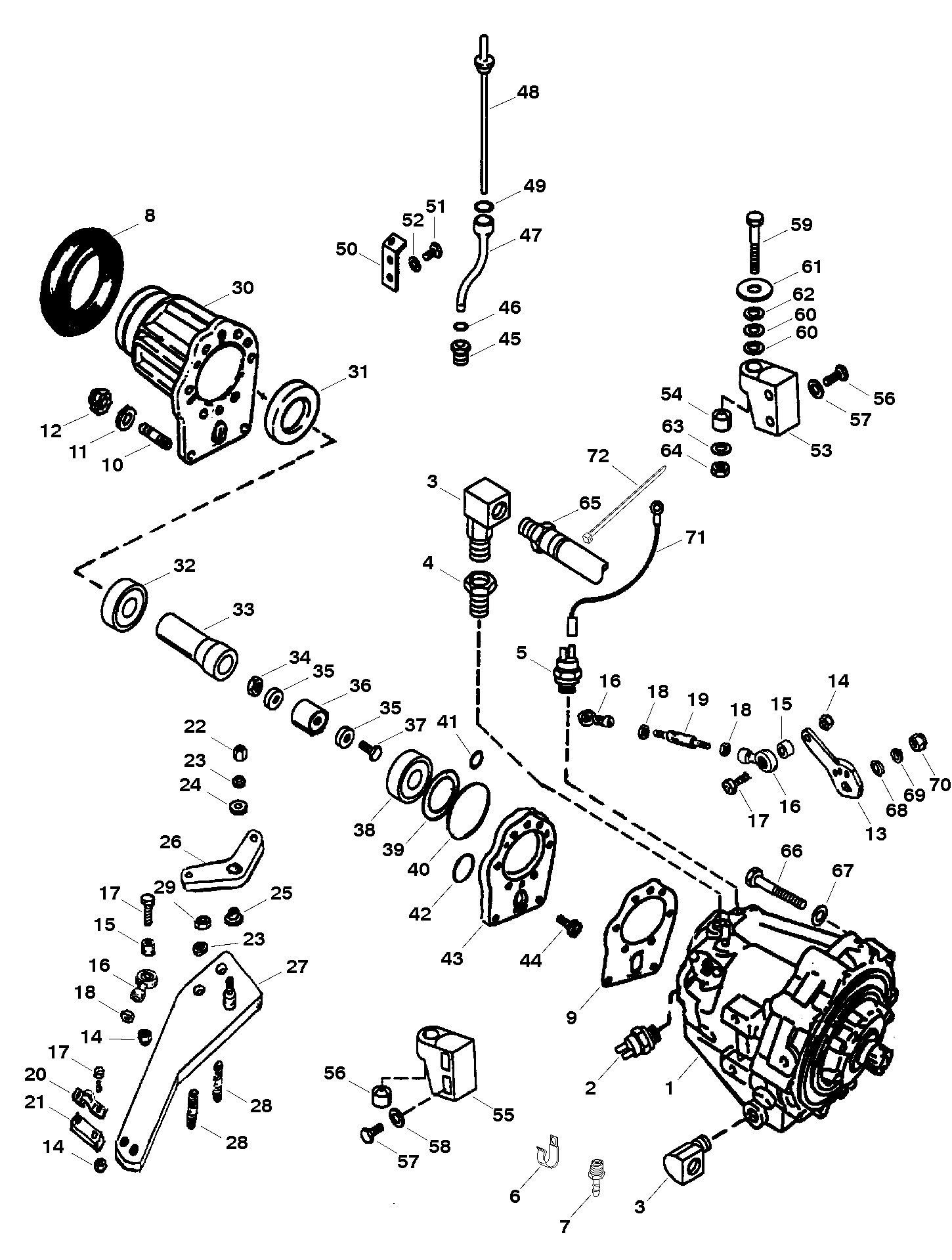

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 821847A1         TRANSMISSION ASSEMBLY 1   This Part is No Longer Available
1 821847A5         TRANSMISSION 1
45 48461         ADAPTOR-Oil Level Gauge Tube 1   This Part is No Longer Available
46 25-48462         O RING-Oil Level Gauge Tube 1
47 48463         TUBE-Oil Level Gauge 1   This Part is No Longer Available
48 48464         DIPSTICK-Oil Level 1   This Part is No Longer Available
49 25-35276         O RING-Oil Level Gauge 1
50 48466         BRACKET-Mounting 1   This Part is No Longer Available
51 10-34290         SCREW (.250-20 x .625) 2
52 13-26992         LOCKWASHER (.250) 2
53 47340A1         BRACKET ASSY-Trans Mount (PORT) 1
54 35852         MOUNT-Transmission Bracket 1
55 47334A2         BRACKET ASSY-Trans Mount (STBD) 1   This Part is No Longer Available
56 35852         MOUNT-Transmission Bracket 1
57 10-47462         SCREW (.437-14 x 1.250) 4
58 13-32993         LOCKWASHER (.437) 4
59 10-47467         SCREW (.625-18 x 5.500) 2
60 12-47466         WASHER 4
61 12-47475         WASHER 2
62 13-34846         LOCKWASHER 2
63 12-33171         WASHER 2
64 11-22339         NUT (.625-18) 2
65 32-475166         HOSE (30.00 In.)-Transmission to Oil Cooler 2
66 10-60179         SCREW (.437-14 x 3.500) 6
67 13-32993         LOCKWASHER (.437) 6
68 12-20722         WASHER-Lever to Transmission 1   This Part is No Longer Available
69 13-39107     700-21496   LOCKWASHER (.312) 1
70 11-22053         NUT (.312-24) 1
71 84-88032A5         CABLE ASSEMBLY (Tan/Blue) 1
71 84-86322A29         CABLE ASSEMBLY (Black) 1
72 77054         STA STRAP (14.500 In.) 1
