800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Fuel Pump Assembly

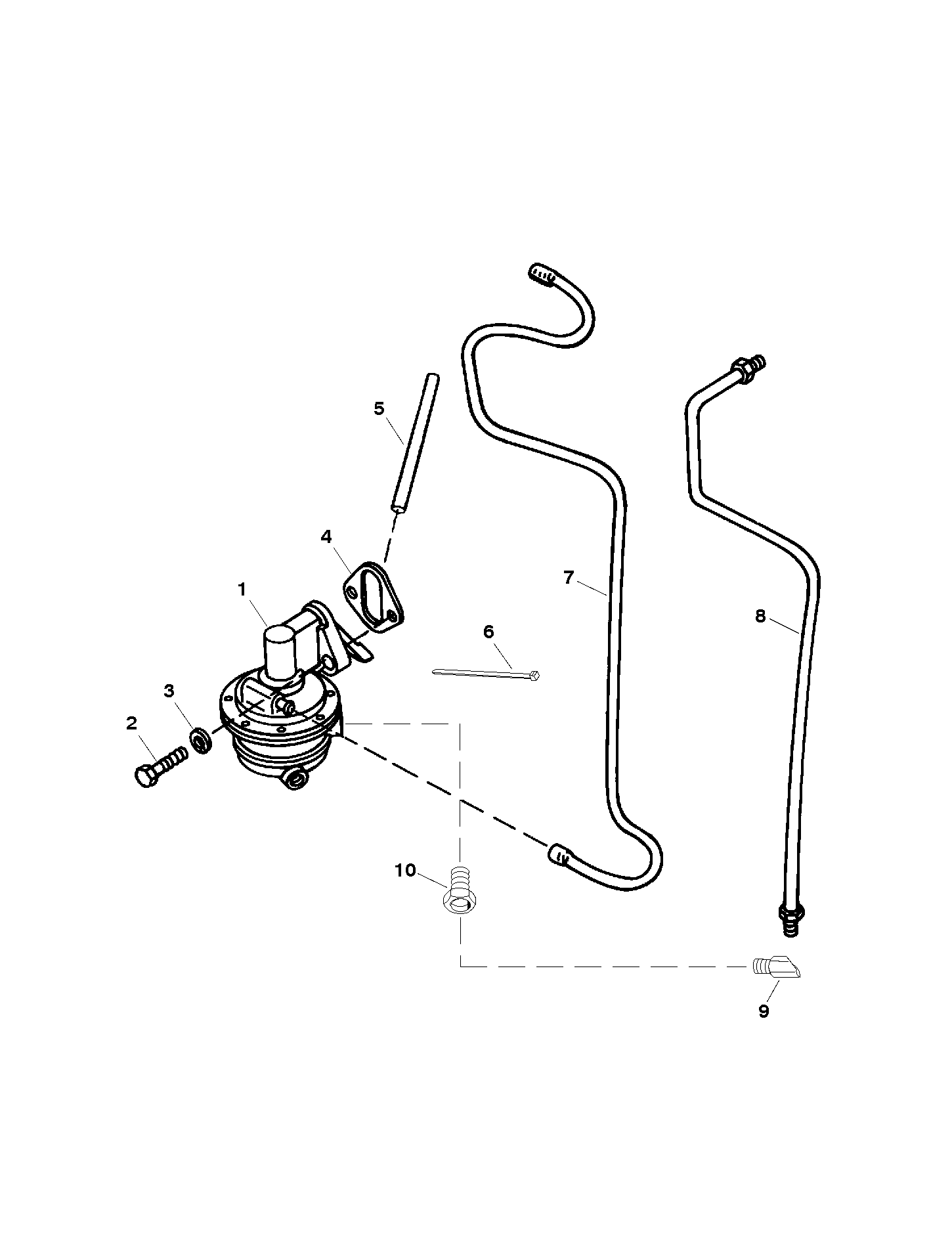

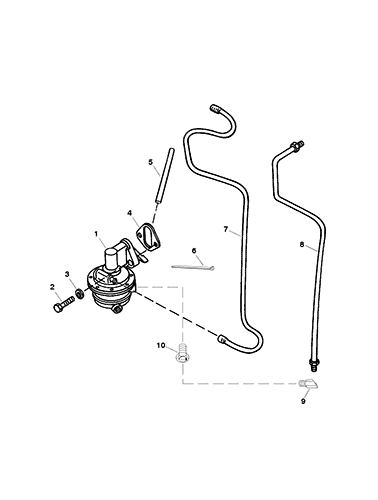

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M8024635 | PUMP ASSEMBLY-Fuel | 1 | 821031 | 2 | ||||
| 2 | 10-37612 | SCREW (.375-16 x 1.250) | 2 | 2 | |||||
| 3 | 13-35048 | LOCKWASHER (.375) | 2 | 2 | |||||
| 4 | 27-34213 | GASKET-Fuel Pump | 1 | 2,5 | |||||
| 5 | 35377 | ROD-Fuel Pump | 1 | 2 | |||||
| 6 | 56762 | CABLE TIE (4.00 In.) | 5 | ||||||
| 7 | 32-8M8023638 | TUBING (48.00 In.)-Fuel Pump to Carburetor | 1 | 32-84862870 | |||||
| 8 | 32-848596 | LINE-Fuel-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 9 | 22-817395 | FITTING (45 Degree) | 1 | ||||||
| 10 | 22-847888 | REDUCER-Pump to Fuel Line | 1 | ||||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
| - | 847718A10 | COMPONENT OF PARTIAL ENGINE | - | This Part is No Longer Available |
