800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Oil Cooler, Filter And Adaptor (0F615830 And Up)

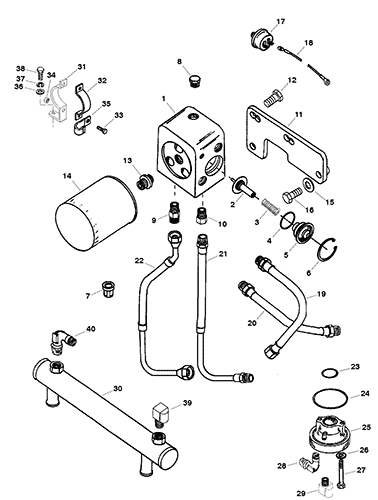

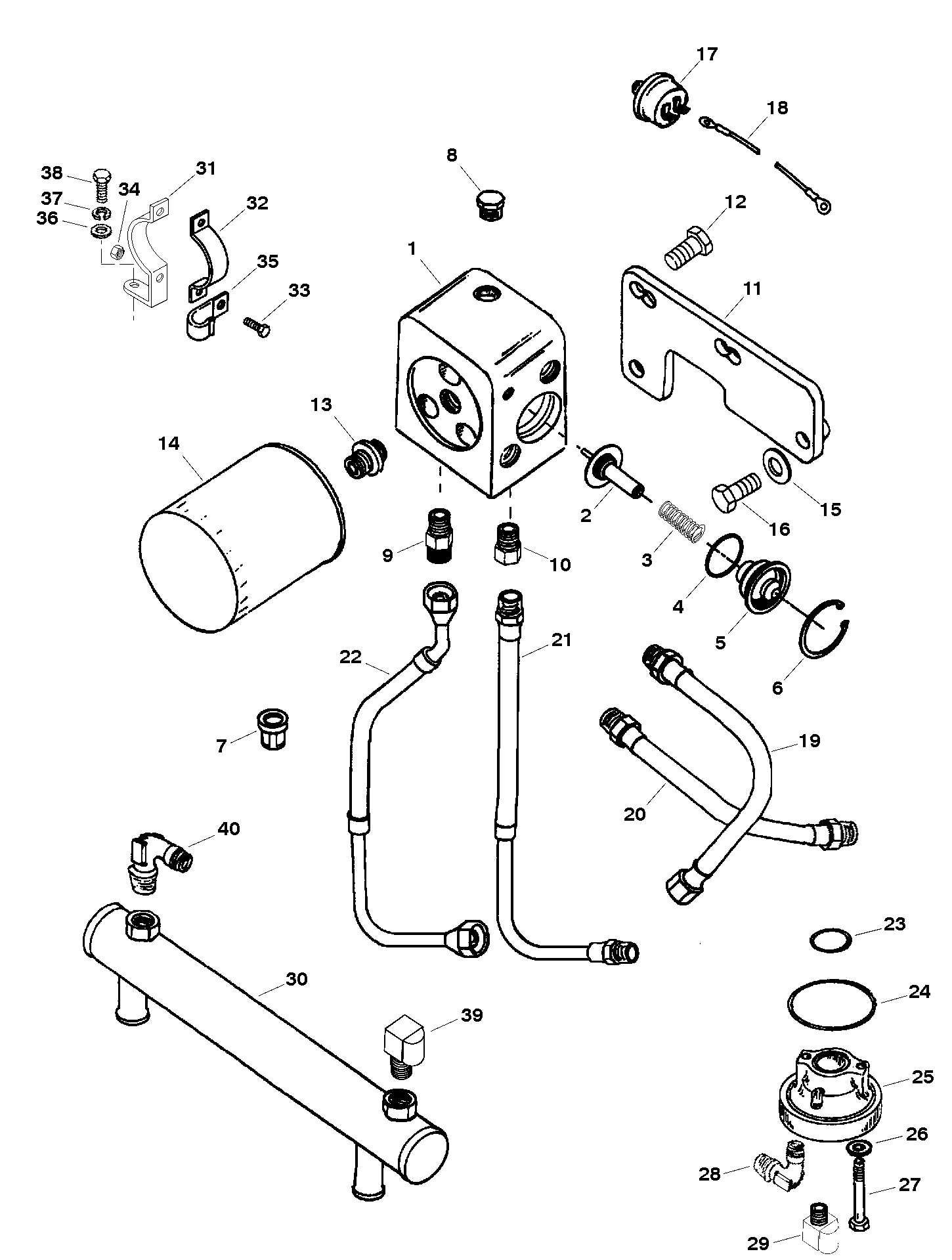

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	848555T					ADAPTOR-Remote Oil Filter	1	848555
2	816163					THERMOSTAT	1
3	24-816162					SPRING	1
4	25-864701					O RING	1	25-47632
5	8161651					COVER-Oil Thermostat	1
6	53-848571					RING-Snap	1
7	99889					VALVE-By Pass	1
8	22-32804					PLUG (.500-14)	1
9	22-806186					FITTING	1
10	22-805563					FITTING	1
11	8485562					BRACKET-Oil Adaptor	1
12	10-99204					SCREW (.437-14 x 1.00)	2
13	22-805632					CONNECTOR-Oil Filter	1
14	35-16595Q					FILTER-Oil	1	35-16595
15	12-45175					WASHER (.375 ID)	1
15	12-45176					WASHER (.437 ID)	1
16	10-35047					SCREW (.375-16 x 1.250)	1
16	10-825427					SCREW (.437-14 x 1.250)	1
17	87-94009					SWITCH-Choke	1
18	84-848879A1					CABLE ASSY	1		(SENDER TO CHOKE) (SER. #0F615830 THRU 0F877725)
18	84-79139A29					CABLE ASSY	1		This Part is No Longer Available (SENDER TO COIL) (SERIAL #0F615830 THRU 0F877725)
18	84-848879A1					CABLE ASSY	1		(SENDER TO CHOKE & COIL) (SERIAL # 0K000223 & UP)
19	32-8485742					HOSE ASSEMBLY (14.500 In.)	1
20	32-848577					HOSE ASSEMBLY (19.00 In.)	1
21	32-848575					HOSE ASSEMBLY-Remote Oil To Adaptor	1
22	32-848576					HOSE ASSEMBLY-Remote Oil To Adaptor	1
23	25-26855		676-9-76541			O RING	1		2,5
24	25-32507					O RING	1		2,5
25	8141531					ADAPTOR-Oil Filter	1		2
26	12-36533					WASHER	2		2
27	10-67450					SCREW (.312-18 x 2.250)	2		2
28	22-706811					ELBOW (90 Degrees)	1		2
29	22-47630					ELBOW	1		2
30	816482T					COOLER-Oil	1	816482
NS	817043					END CAP	2		1
NS	27-817042					GASKET	2		1
NS	8M0039163					O RING	2	25-814878	1
NS	10-816767					SCREW	2		1
31	12820					BRACKET-Oil Cooler	2
32	56328A1					BRACKET-Oil Cooler	2
33	10-60300					SCREW (.250-28 x .750)	4
34	11-30506					NUT (.250-28)	4
35	54-15095					J CLIP	1
36	12-20553					WASHER	2
37	13-35048					LOCKWASHER (.375)	2
38	10-34353					SCREW (.375-16 x 1.00)	2
39	22-47630					ELBOW	1
40	22-706811					ELBOW (90 Degree)	1
-	27-822740A3					GASKET SET-Engine Overhaul	1		This Part is No Longer Available
