| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

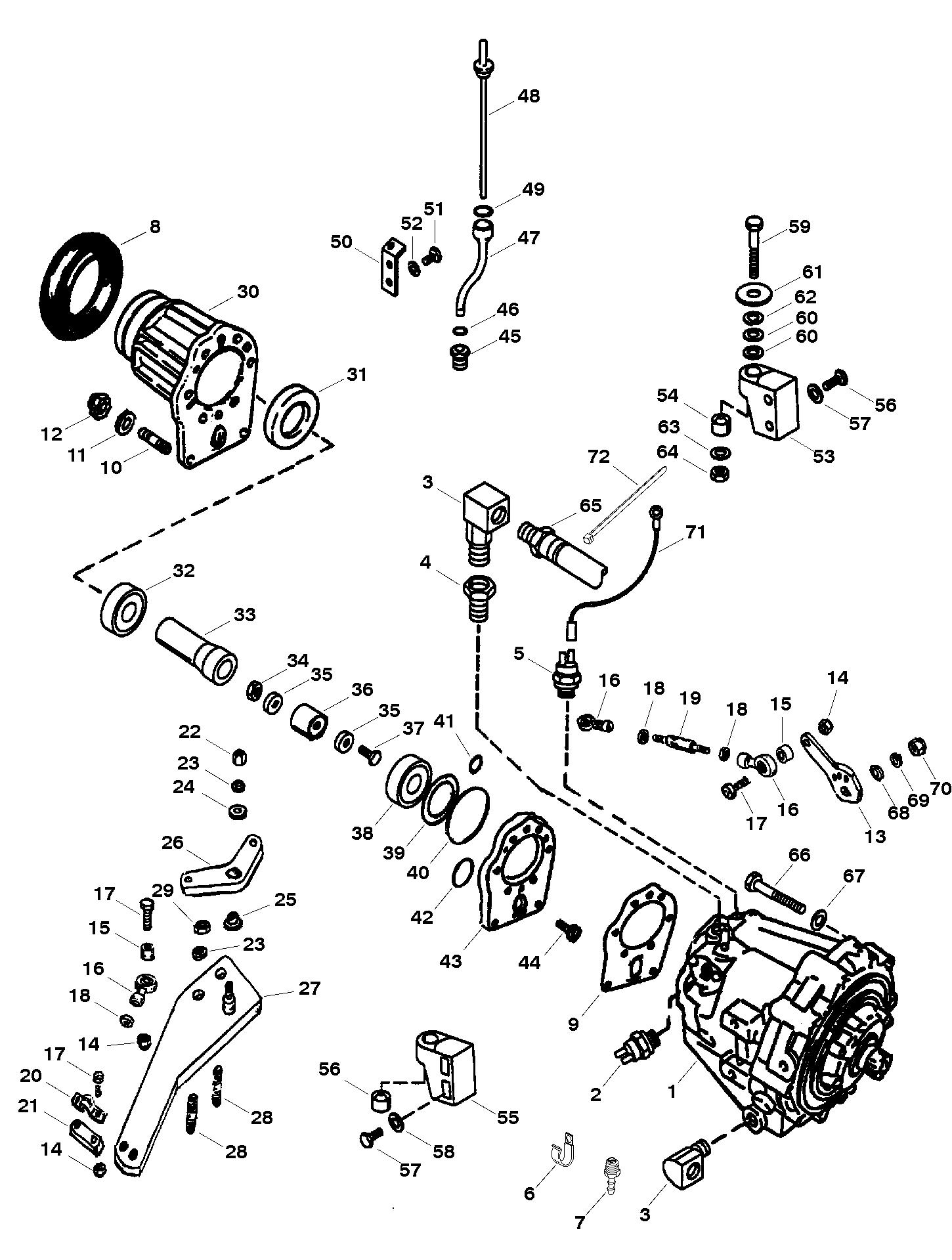

821847A1 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 1 |
821847A5 |
|
|
|
|
TRANSMISSION |
1 |
|
|
| 2 |
47613 |
|
|
|
|
SWITCH-Neutral |
1 |
|
|
| 3 |
22-47629 |
|
|
|
|
ELBOW-Transmission To Oil Hose |
2 |
|
|
| 4 |
22-88517 |
|
|
|
|
FITTING-Reducing-Transmission Elbow |
1 |
|
|
| 5 |
87-88031 |
|
|
|
|
SWITCH-Oil Temp |
1 |
|
|
| 6 |
54-47483 |
|
|
|
|
J CLIP |
1 |
|
|
| 7 |
22-63186 |
|
|
|
|
FITTING (.125-27) (To Hose On Bottle) |
1 |
|
|
| - |
847145T1 |
|
|
|
|
SUPPORT/LEVER KIT-U Joint |
1 |
847145A1 |
|
| 8 |
846693 |
|
|
|
|
SEAL-Housing |
1 |
|
|
| 9 |
27-47903 |
|
|
|
|
GASKET-Trans to Support Housing |
1 |
|
|
| 10 |
16-847030 |
|
|
|
|
STUD (.437 x 3.00 In.) |
6 |
|
|
| 10 |
16-847031 |
|
|
|
|
STUD (.437 x 2.750 In.) |
2 |
|
|
| 11 |
12-842922 |
|
|
|
|
WASHER |
8 |
|
|
| 12 |
11-34933 |
|
676-9-72004 |
|
|
NUT (.437-20) |
8 |
|
|
| 13 |
847052 |
|
|
|
|
LEVER-Shift-Transmission |
1 |
|
|
| 14 |
11-8267096 |
|
|
|
|
NUT (#10-32) |
5 |
11-34059 |
|
| 15 |
23-846787 |
|
|
|
|
SPACER-Rod End |
3 |
|
|
| 16 |
846786 |
|
|
|
|
END-Rod |
3 |
|
|
| 17 |
10-34994 |
|
|
|
|
SCREW (#10-32 x 1.00) |
5 |
|
|
| 18 |
11-68219 |
|
|
|
|
NUT (#10-32) |
3 |
|
|
| 19 |
16-846964 |
|
|
|
|
STUD-Shift Rod |
1 |
|
|
| 20 |
54-846341 |
|
|
|
|
BRACKET-Shift Cable |
1 |
|
|
| 21 |
846344 |
|
|
|
|
SPACER-Cable Bracket |
1 |
|
|
| 22 |
11-826709113 |
|
|
|
|
NUT (.375-24) |
1 |
11-34863 |
|
| 23 |
12-841388 |
|
|
|
|
WASHER |
3 |
|
|
| 24 |
12-846783 |
|
|
|
|
WASHER-Nylon |
1 |
|
|
| 25 |
23-812707 |
|
|
|
|
BUSHING |
1 |
|
|
| 26 |
847025 |
|
|
|
|
ARM-Shift Cable |
1 |
|
|
| 27 |
8M0053746 |
|
|
|
|
PLATE ASSY-Shift Linkage Mount |
1 |
847175 |
|
| 28 |
16-846453 |
|
|
|
|
STUD-Mounting Plate |
2 |
|
|
| 29 |
11-826709112 |
|
|
|
|
NUT (.375-16) |
2 |
11-846869 |
|
| - |
8M0050742 |
|
|
|
|
SUPPORT ASSEMBLY-U Joint |
1 |
847123A1 |
|
| 30 |
8M0054154 |
|
|
|
|
HOUSING-U Joint Support |
1 |
8469611 |
|
| 31 |
26-846497 |
|
|
|
|
SEAL-Coupler-Inner |
1 |
|
|
| 32 |
31-846477A1 |
|
|
|
|
BEARING ASSY-Coupler-Rear |
1 |
|
|
| 33 |
8M0050930 |
|
|
|
|
SHAFT-Coupling |
1 |
846960 |
This Part is No Longer Available |
| 34 |
11-82670910 |
|
|
|
|
NUT (.312-18) |
1 |
11-67980 |
|
| 35 |
12-846967 |
|
|
|
|
WASHER |
2 |
|
|
| 36 |
23-847027 |
|
|
|
|
SEAL-Coupler |
1 |
|
|
| 37 |
10-847209 |
|
|
|
|
SCREW (.375-16 x 1.250) |
1 |
|
|
| 38 |
31-846695A1 |
|
|
|
|
BEARING ASSY-Coupler-Front |
1 |
|
|
| 39 |
15-847029A1 |
|
|
|
|
SHIM SET-Bearing |
2 |
|
|
| 40 |
25-841807 |
|
|
|
|
O RING (3.500 x 3.690) |
1 |
|
|
| 41 |
25-847033 |
|
|
|
|
O RING (.440 x .620) |
1 |
|
|
| 42 |
25-847034 |
|
|
|
|
O RING (1.120 x 1.310) |
1 |
|
|
| 43 |
8470121 |
|
|
|
|
SPACER-U Joint |
1 |
|
|
| 44 |
10-30206 |
|
|
700-22430 |
|
SCREW (.375-16 x 1.00) |
3 |
|
|
