800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Power Steering Components

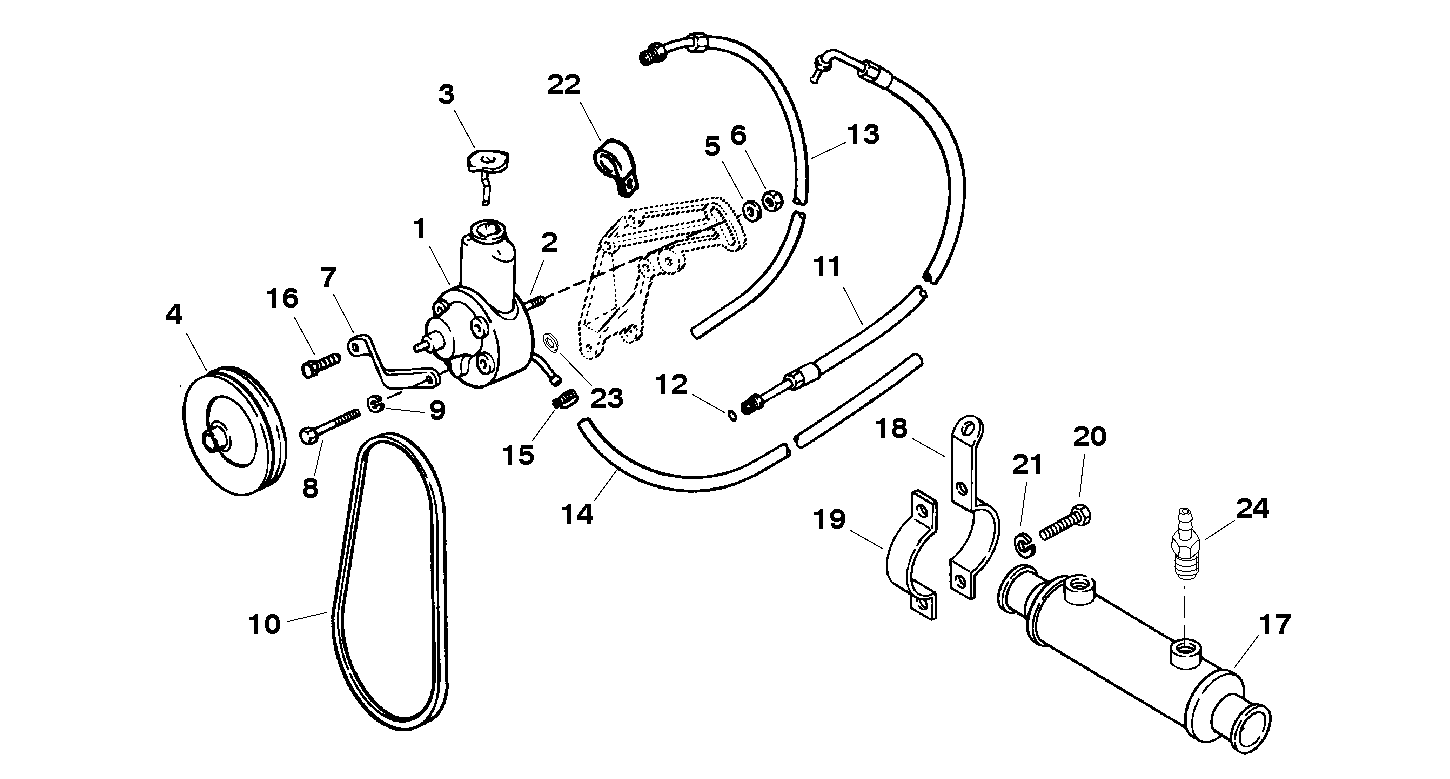

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A25 | PUMP ASSEMBLY-Power Steering (BLUE) | 1 | ||||||
| 2 | 16-41877 | STUD | 1 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 738733 | PULLEY (BLUE) | 1 | This Part is No Longer Available | |||||
| 5 | 12-34567 | WASHER (BRACE SLOT) | 3 | ||||||
| 6 | 11-90517 | NUT | 2 | ||||||
| 7 | 847765 | BRACE | 1 | ||||||
| 8 | 10-40001188 | SCREW (M10 x 20) | 1 | ||||||
| 9 | 13-400248 | LOCKWASHER | 1 | ||||||
| 10 | 57-821023Q | V BELT | 1 | 57-821023 | |||||
| 11 | 32-98494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 12 | 25-89879 | O RING | 1 | ||||||
| 13 | 32-9884339 | HOSE (72.00 In. Bulk) (FITTINGS ON ONE END) | 1 | (CUT 48.00 IN.) | |||||
| 14 | 32-8M0062341 | HOSE (53.00 In. Bulk) | 1 | 32-5251914 | (CUT 19.500 IN.) | ||||
| 15 | 54-180761 | CLAMP | 3 | ||||||
| 16 | 10-35047 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 16 | 10-825427 | SCREW (.437-14 x 1.250) | 1 | 10-15942 | 3 | ||||
| 17 | 99356A2 | COOLER-Oil | 1 | (SERIAL # 0K000911 AND BELOW) | |||||
| 17 | 849291 | COOLER-Oil | 1 | (SERIAL # 0L000186 & UP) | |||||
| 18 | 63820F3 | BRACKET (LONG) | 1 | 638203 | |||||
| 19 | 563281 | BRACKET (SHORT) | 1 | ||||||
| 20 | 10-49668 | SCREW (.250-20 x .750) | 2 | ||||||
| 21 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 22 | 54-848183 | J CLIP-Power Steering Hose | 1 | ||||||
| 22 | 54-42553 | J CLIP-Power Steering Hose to Valve Cover | 2 | ||||||
| 23 | 12-20553 | WASHER (Lower Pivot Stud-Pump To Bracket) | 1 | ||||||
| 24 | 22-70834 | CONNECTOR | 1 | (SERIAL # 0L000186 & UP) | |||||
| - | 844718A10 | COMPONENT OF PARTIAL ENGINE | - |
