800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Oil Pan And Oil Pump

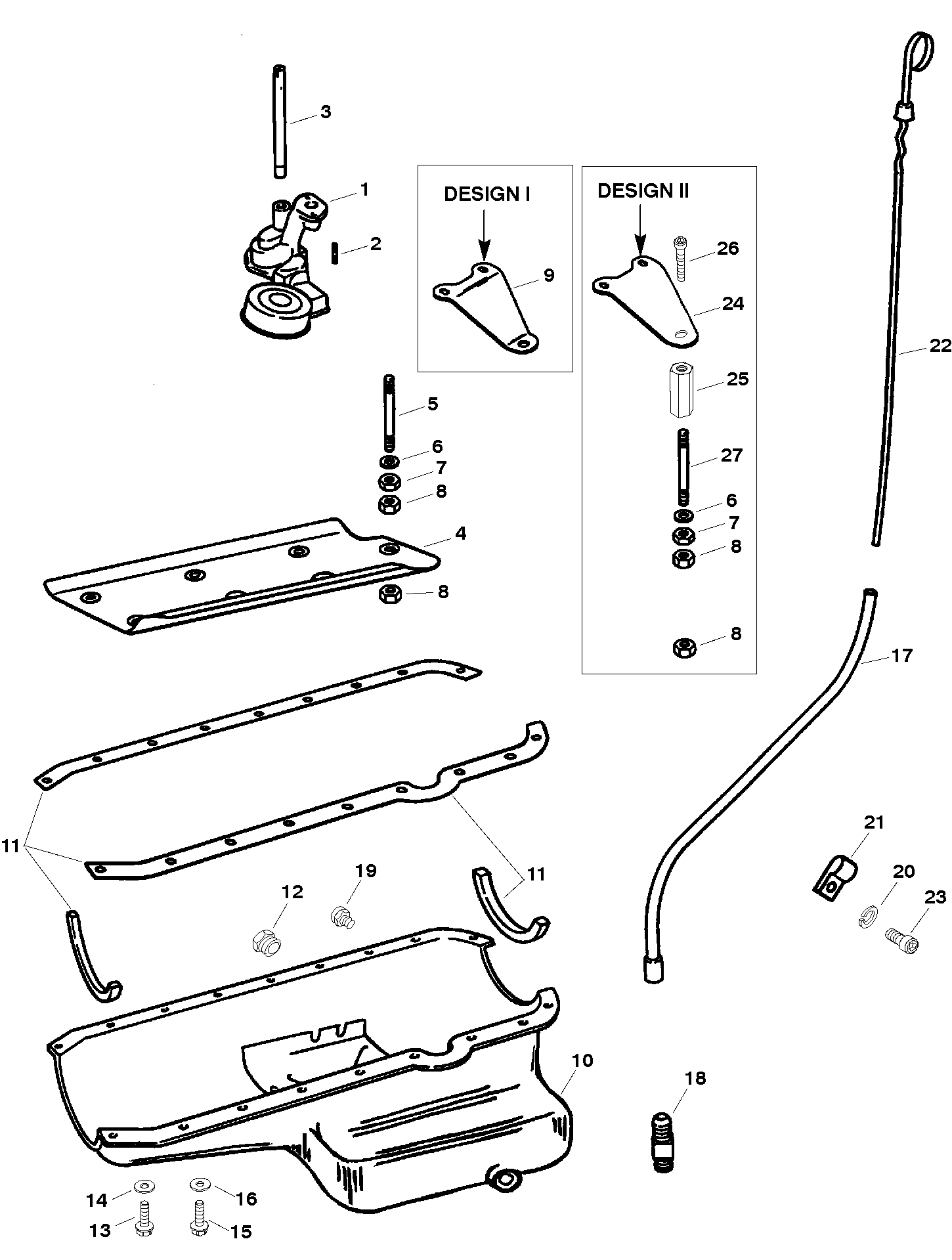

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 98337T6         PUMP ASSEMBLY-Oil 1 98337A6 2
2 16-845599         STUD 1 16-49108 2
3 848511         SHAFT 1   2
4 8485431         WINDAGE TRAY 1   2
5 16-816254         STUD (Special) 6   2
6 12-816258         WASHER 6   2
7 11-816255         NUT (Special) 6   2
8 11-816257         NUT (Special) 12   2
9 849529A1         SUPPORT-Oil Pump 1 8143941 (DESIGN I) 2,3
10 817025T1         PAN-Oil 1 8170251 2
11 27-848305         GASKET SET-Oil Pan 1   2,5
12 22-36373         PLUG (.375-18)-Pipe 2   2
13 10-55714         SCREW (.312-18 x .875) 12   2
13 10-54523         SCREW (.312-18 x 1.00) 2   2
14 12-20546         WASHER 14   2
15 10-55715         SCREW (.250-20 x .875) 2   2
16 12-20028         WASHER 2   2
17 847599         TUBE-Oil Dipstick 1   2
18 22-42277         FITTING 1   This Part is No Longer Available 2
19 19-8154731         PLUG (.875-14)-Drain 1   2
20 13-26992         LOCKWASHER (.250) 1   2
21 54-822279         CLIP-Oil Tube Support 1   2
22 94010         DIPSTICK 1   This Part is No Longer Available 2
23 10-817505         SCREW (.250-20 x .620) 1   2
24 849529A1         BRACE KIT-Oil Pump 1   (DESIGN II) 2
25 11-849530         NUT (Special) 1
26 10-849660         SCREW (.375-24 x 1.00) 1
27 16-816254         STUD (Special) 1
- 27-822740A3         GASKET SET-Engine Overhaul 1   This Part is No Longer Available
- 847718A10         COMPONENT OF PARTIAL ENGINE     This Part is No Longer Available
