800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission And Components (Driveline)

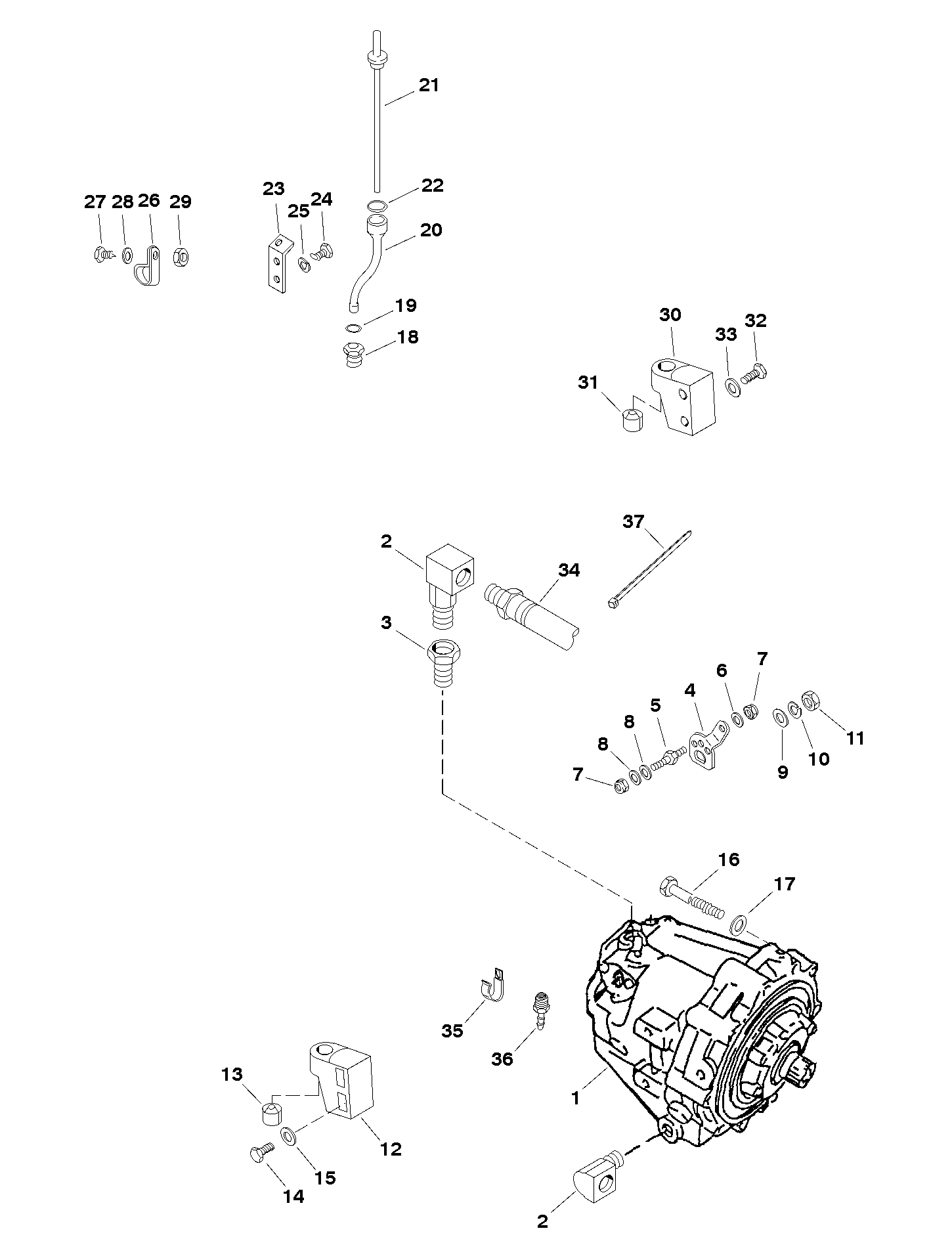

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 821844A2         TRANSMISSION ASSEMBLY (COMPLETE) 1
1 821844A5         TRANSMISSION 1
2 22-47629         ELBOW 2
3 22-88517         FITTING 1
4 12128         LEVER-Shift 1
5 16-63335         STUD 1   This Part is No Longer Available
6 12-39143         WASHER 1
7 11-8267089         NUT (.250-28) 2 11-20361
8 12-29245         WASHER 2
9 12-20722         WASHER 1   This Part is No Longer Available
10 13-39107     700-21496   LOCKWASHER (.312) 1
11 11-22053         NUT (.312-24) 1
12 47334A2         BRACKET ASSEMBLY-Mounting (STBD) 1   This Part is No Longer Available
13 35852         MOUNT 1
14 10-47462         SCREW (.437-14 x 1.250) 2
15 13-32993         LOCKWASHER (.437) 2
16 10-60179         SCREW (.437-14 x 3.500) 6
17 13-32993         LOCKWASHER (.437) 6
18 48461         ADAPTOR-Dipstick Tube to Transmission 1   This Part is No Longer Available
19 25-48462         O RING 1
20 48463         TUBE-Dipstick 1   This Part is No Longer Available
21 48464         DIPSTICK 1   This Part is No Longer Available
22 25-35276         O RING 1
23 48466         BRACKET-Dipstick Tube 1   This Part is No Longer Available
24 10-34290         SCREW (.250-20 x .625) 2
25 13-26992         LOCKWASHER (.250) 2
26 54-859172         CLAMP 1 54-67015
27 10-60300         SCREW (.250-28 x .750) 1
28 12-29245         WASHER 2
29 11-8267089         NUT (.250-28) 1 11-20361
30 47340A1         BRACKET ASSEMBLY-Mounting (PORT) 1
31 35852         MOUNT 1
32 10-47462         SCREW (.437-14 x 1.250) 2
33 13-32993         LOCKWASHER (.437) 2
34 32-475166         HOSE ASSEMBLY (30.00 In.) 2
35 54-47483         J CLIP (Neutral Switch Wire) 1
36 22-63186         FITTING (Hose To Reservoir Bottle) 1
37 77054         STA STRAP (14.500 In.) 1
