800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Flywheel Housing (Transmission Models)

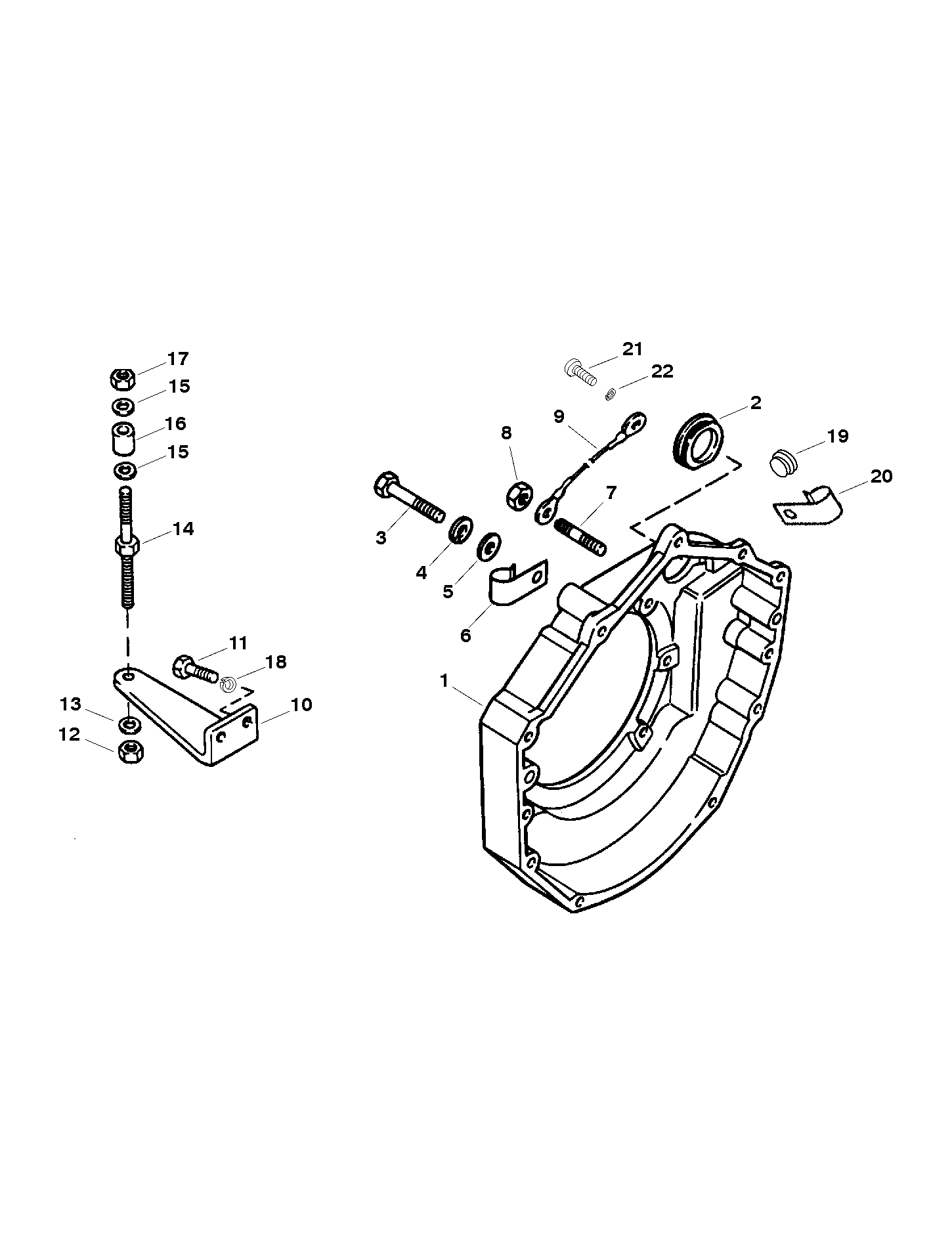

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44187T | HOUSING-Flywheel | 1 | ||||||
| 2 | 19-12304 | PLUG-Timing Window | 1 | ||||||
| 3 | 10-48424 | SCREW (.375-16 x 1.620) | 2 | ||||||
| 3 | 10-37612 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 3 | 10-53734 | SCREW (.375-16 x 3.00) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (.375) | 8 | ||||||
| 5 | 12-20553 | WASHER | 6 | ||||||
| 5 | 12-20572 | WASHER (FOR SLOT) | 1 | ||||||
| 6 | 54-78945 | J CLIP | 2 | ||||||
| 7 | 16-64066 | STUD (2.750 In.) | 2 | ||||||
| 8 | 11-32219 | NUT (.375-16) | 2 | ||||||
| 9 | 84-62826A12 | CABLE ASSEMBLY-Ground | 2 | ||||||
| 10 | 17917 | BRACKET-Shift | 1 | DRIVELINE MODELS | |||||
| 11 | 10-28668 | SCREW (.250-20 x .875) | 2 | DRIVELINE MODELS | |||||
| 12 | 11-826709109 | NUT (.250-28) | 1 | 11-35045 | DRIVELINE MODELS | ||||
| 13 | 12-39143 | WASHER | 1 | DRIVELINE MODELS | |||||
| 14 | 16-63335 | STUD | 1 | This Part is No Longer Available DRIVELINE MODELS |
|||||
| 15 | 12-69056 | WASHER | 2 | 12-21631 | DRIVELINE MODELS | ||||
| 16 | 23-31866 | SPACER | 1 | DRIVELINE MODELS | |||||
| 17 | 11-8267089 | NUT (.250-28) | 1 | 11-20361 | DRIVELINE MODELS | ||||
| 18 | 13-26992 | LOCKWASHER (.250) | 2 | DRIVELINE MODELS | |||||
| 19 | 19-38606 | PLUG | 1 | ||||||
| 20 | 54-62494 | CLIP-Hose | 1 | ||||||
| 21 | 10-62568 | SCREW (#10-16 x .375) | 1 | ||||||
| 22 | 13-69432 | LOCKWASHER (#10) | 1 |
