800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Supercharger

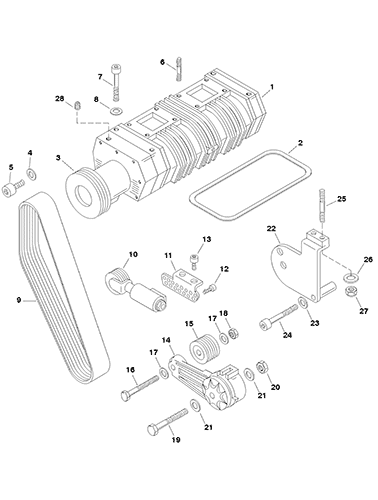

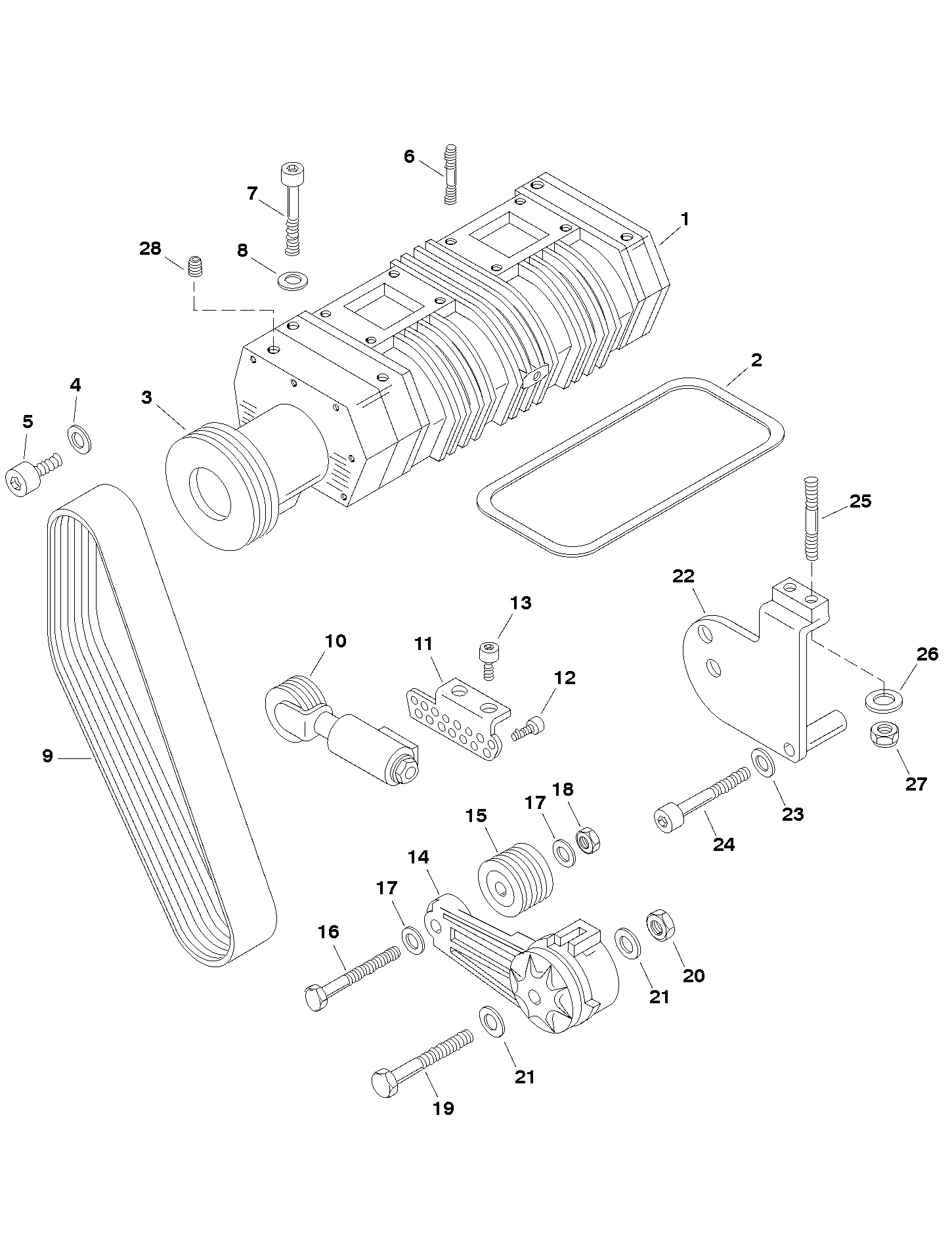

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	818950A1					SUPERCHARGER ASSEMBLY	1		This Part is No Longer Available
2	25-818972					O RING	1		5
3	847681					PULLEY	1
4	12-37828					WASHER	6
5	10-30206			700-22430		SCREW (.375-16 x 1.00)	6
6	16-46857					STUD (.312-18 x 1.875)	8
7	10-818969					SCREW	4		This Part is No Longer Available
8	12-822350					WASHER	4
9	57-821020					BELT-Drive	1
10	848090A2					TENSIONER ASSEMBLY	1	822309A3	This Part is No Longer Available (EARLY STYLE)
11	848090A2					BRACKET-Tensioner Mount	1	847624	This Part is No Longer Available (EARLY STYLE) 3
12	10-847597					SCREW (.250-20 x .625)	2		This Part is No Longer Available (EARLY STYLE)
13	10-847879					SCREW (.312-18 x .750)	2		This Part is No Longer Available (EARLY STYLE)
14	848090T1					TENSIONER ASSY (BLUE)	1	848090A1	This Part is No Longer Available (LATE STYLE)
15	848091T					PULLEY-Tensioner	1	848091	This Part is No Longer Available
16	10-848088					SCREW-Special (.375-16 x 2.250)	1		This Part is No Longer Available
17	12-74759					WASHER	2
18	11-848089					NUT-Special (.375-16)	1		This Part is No Longer Available
19	10-848106					SCREW (.437-14 x 3.250)	1		This Part is No Longer Available
20	11-848107					NUT (.437-14)	1		This Part is No Longer Available
21	12-45176					WASHER	2
22	8480681					BRACKET ASSEMBLY-Tensioner Assembly	1		This Part is No Longer Available
23	12-37828					WASHER	1
24	10-848105					SCREW (.375-16 x 3.250)	1		This Part is No Longer Available
25	16-848562					STUD (.312-24 x 1.650)	2
26	12-70132					WASHER	2
27	11-82670911					NUT (.312-24)	2	11-35814
28	845606					PLUG	1	42534
-	27-822740A3					GASKET SET-Engine Overhaul	1		This Part is No Longer Available
